Extech Power Quality Clamp On, 380940, 400A
- Brand:
- Extech
- SKU:
- 185848116386
- Minimum Purchase:
- 1 unit
- Item Name:
- Power Quality Clamp On
- Manufacturer:
- Extech
- Voltage:
- 115-230V
- Input Voltage Frequency:
- 100000000Hz
- Measuring Voltage Range - AC:
- 600V
- Measuring Voltage Range - DC:
- 400V
- Power:
- 40-240kW
- Amps (A):
- 400A
- Brand Origin (not manufacture):
- United States
- Certification:
- CE
- Warranty (Subject to Conditions):
- 1 Year
- Delivery Time:
- 2-3 Weeks
- Unit:
- Piece
Description

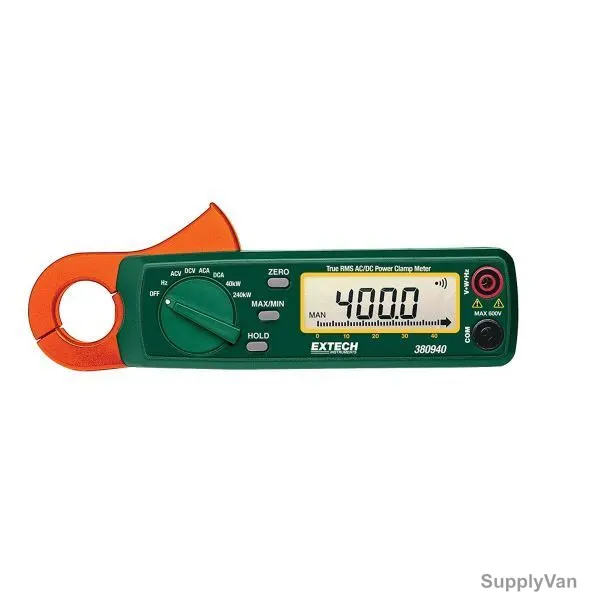

The compact Extech 380940 is a 400 Amp mini True RMS AC/DC power clamp meter with a small diameter jaw designed to reach in small areas while providing power calculations up to 240kW. With the added convenience of instant watt readings, a feature normally reserved for full-size meters, this mini power clamp is useful for essential troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as residential electrical repairs, energy audits, fleet maintenance, marine, and motorcycle repair. Complete with test leads, 2 AA batteries, and carrying case.
View AllClose
- Large LCD with 40 segment analog barograph
- Data Hold, Max/Min recall, Auto Zero (DC current), plus low battery indication
- Auto power off
Item Name: |
Power Quality Clamp On |
Manufacturer: |
Extech |
Voltage: |
115-230V |
Input Voltage Frequency: |
100000000Hz |
Measuring Voltage Range - AC: |
600V |
Measuring Voltage Range - DC: |
400V |
Power: |
40-240kW |
Amps (A): |
400A |
Brand Origin (not manufacture): |
United States |
Certification: |
CE |
Warranty (Subject to Conditions): |
1 Year |
Delivery Time: |
2-3 Weeks |
Unit: |
Piece |
