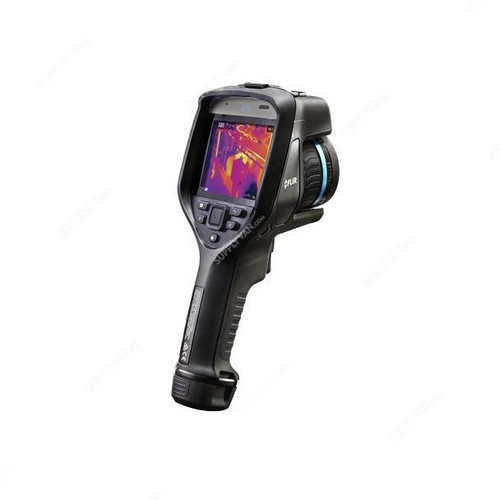

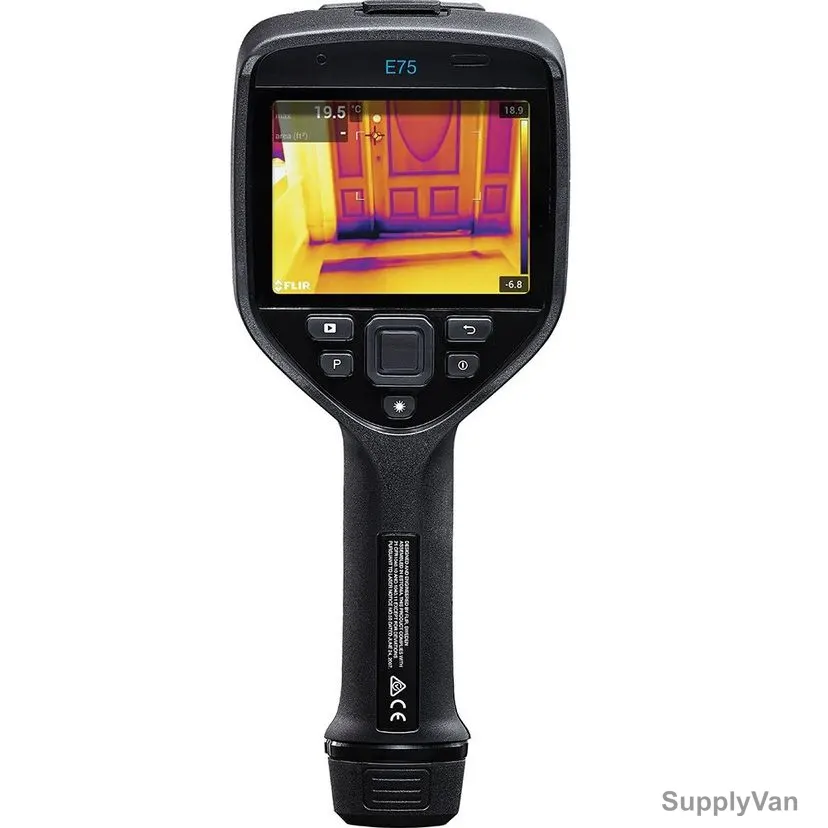

Flir Advanced Thermal Imaging Camera, E75, 320 x 240p, -20 to 1000 Deg.C

(No reviews yet) Write a Review
Brand:
Flir
SKU:
253632454352
Minimum Purchase:
1 unit
Item Name:
Thermal Imaging Camera
Model:
E75
Product Series:
Exx
Article Number:
78502-0101
Manufacturer:
Flir
Color:
Black
Temperature Range:
-20 to 1000 Deg.C
Resolution:
5MP
Aspect Ratio:
4:3
Pitch:
17 ?m
Display Size:
4 Inch
Min Focus Distance:
0.5 Mtrs
Frame Rate:
30Hz
Display Type:
4.0 Inch Touch Screen Color LCD with auto rotation
Display Resolution:
640 x 480p
Spectral Range:
7.5 to 14.0 µm
Thermal Sensitivity:
<24 Deg at +30 Deg.C (+86 Deg.F)/40 mK
Storage Media:
8GB Removable SD card
Field of View:
24 x 18 Degree
Digital Zoom:
1 to 4x Continuous
Battery Type:
Li-Ion
Operating Time:
Battery: Approx 2.5 Hrs at 25 Deg.C
Focus Method:
Manual and continuous with LDM (laser distance meter)
Focus Range:
0.15 Mtrs to Infinity
Operating Ambient Temperature (Degree Celsius):
-15 to 50 Deg.C
Storage Temperature (Degree Celsius):
-40 to 70 Deg.C
Accuracy:
+/-2.0 percent or +/-2.0 Deg.C
Emissivity:
Adjustable 0.01 to 1.00
Temperature Range (Degree Celsius):
-20 to 650 Deg.C
Temperature Range (Degree Fahrenheit):
-4 to 1200 Deg.F
Spectral Response:
7.5 to 14.0 mum
Detector Resolution:
320 x 240p (76,800)
Storage Temperature:
-40 to 70 Deg.C
Visual Light Resolution:
5.0 MP
Operating Temperature:
-15 to 50 Deg.C
Focal Length:
17mm
Detector Type:
Uncooled Microbolometer
Memory Card:
No
Special Features:
MSX Enhancement, UltraMax(TM) Super Resolution, Auto-Orientation, 4X Zoom, One Shot Laser Distance Meter, Temperature Screening, METERLiNK(R), Compass, GPS, Video Streaming
Brand Origin (not manufacture):
United States
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Flir Advanced Thermal Imaging Camera, E75, 320 x 240p, -20 to 1000 Deg.C
  • Flir Advanced Thermal Imaging Camera, E75, 320 x 240p, -20 to 1000 Deg.C
AED30,139.25
AED26,522.50
— You save AED3,616.75

Available on Request

Description

The FLIR E75 has the sensitivity and resolution needed to diagnose problems and find hidden deficiencies, even from a distance. The 320 x 240 true native resolution offers more than 76,000 points of temperature measurement and produces crisp, vibrant imagery.
  • Wide temperature ranges with optional calibrations up to 2732°F (1500°C)
  • Superior spot-size performance for accurate temperature measurements on smaller, more distant targets
  • Laser-assisted autofocus for precise identification of hot spots, even in cluttered scenes
  • Detect temperature differences as small as <0.04°C (24° lens) for immediate identification of failing components
  • Interchangeable lenses offer complete coverage of near and far targets
  • Lenses auto-calibrate with camera for the most precise temperature readings
  • MSX image enhancement adds the depth and detail to image
  • Rapid-response touchscreen with intuitive new user interface
  • Convenient menu buttons allow for one-handed operation
  • New folder and naming structure that makes finding images easier
  • Connect over Wi-Fi to mobile devices or via METER Link to FLIR clamps and multimeters
  • Spatial Resolution: 1.31 mrad

Items Included:
1x Infrared camera, 1x 24 Degree Lens, 1x Small viewfinder eyecup, 2x batteries, 1x Battery charger, 1x Hard transport case, 1x Lanyards, 1x Front lens cap, 1x Power supplies, 1x Printed documentation, 1x SD card (8 GB), 3x cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
