Flir Thermal Imaging Camera, A320, 320 x 240p, 30Hz, -20 to 350 Deg.C

(No reviews yet) Write a Review
Brand:
Flir
SKU:
244217742938
Minimum Purchase:
1 unit
Item Name:
Thermal Imaging Camera
Model:
A320
Article Number:
A3XX
Manufacturer:
Flir
Color:
Black
Temperature Range:
-20 to 350 Deg.C
Pitch:
25 µm
Max Aperture:
F/1.3
Min Focus Distance:
0.4 Mtrs
Frame Rate:
30Hz
Display Resolution:
320 x 240p
Spectral Range:
7.5 to 13 µm
Battery Voltage:
10-30 VDC
Thermal Sensitivity:
<0.05 Deg.C at 30 Deg.C (86 Deg.F)/50 mK
Field of View:
25 x 18.8 Degree
Digital Zoom:
1 to 8x Continuous, Digital, Interpolating
Accuracy:
+/-2 Deg.C (+/-3.6 Deg.F) or +/-2%
Detector Resolution:
320 x 240p
Storage Temperature:
-40 to 70 Deg.C
Operating Temperature:
-15 to 50 Deg.C
Focal Length:
18mm
Detector Type:
Focal plane array (FPA), Uncooled microbolometer
Housing Material:
Aluminium
Brand Origin (not manufacture):
United States
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Flir Thermal Imaging Camera, A320, 320 x 240p, 30Hz, -20 to 350 Deg.C
  • Flir Thermal Imaging Camera, A320, 320 x 240p, 30Hz, -20 to 350 Deg.C
  • Flir Thermal Imaging Camera, A320, 320 x 240p, 30Hz, -20 to 350 Deg.C
  • Flir Thermal Imaging Camera, A320, 320 x 240p, 30Hz, -20 to 350 Deg.C
AED52,031.75
AED45,787.75
— You save AED6,244.00
FREE DELIVERY

Available on Request

Description

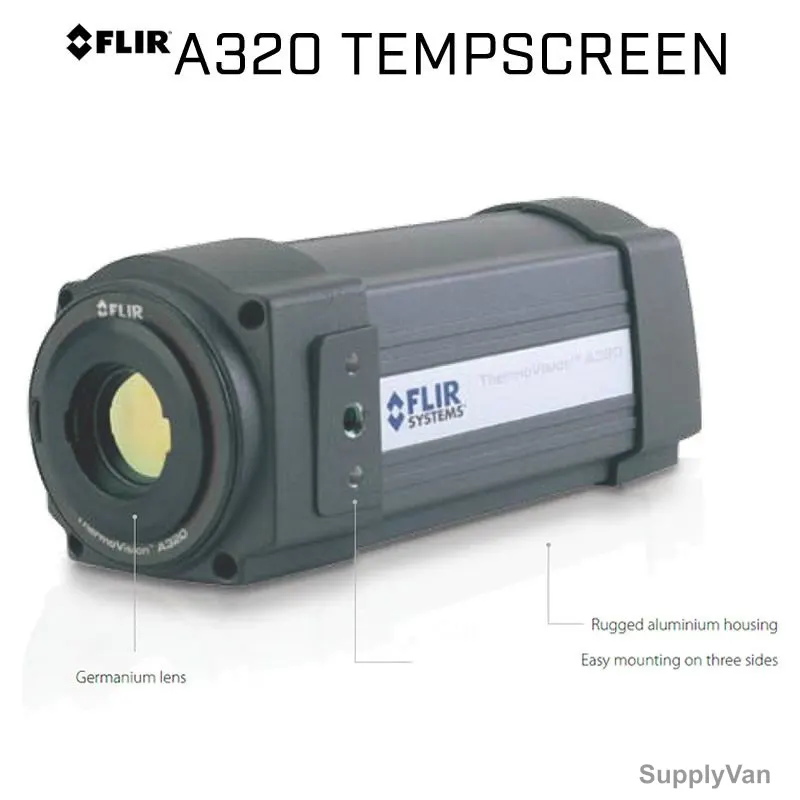

The A320 (30 Hz) is a camera preconfigured to work in applications where you need to find temperature deviations in a population of people, utilizing difference temperature alarms with a dynamically updated reference temperature. The thermal imager provides accurate temperature measurement and features, such as analysis, alarm functionality and autonomous communication using standard protocols.
  • Screening: difference temperature alarm with a dynamic updated reference temperature (visualized by the isotherm)
  • Built-in extensive analysis functionality
  • Extensive alarm functionality, as a function of analysis and more
  • On schedule: file sending (FTP) or e-mail (SMTP) of analysis results or images
  • On alarms: file sending (FTP) or e-mail (SMTP) of analysis results or images
  • MPEG-4 streaming
  • Poe (Power over Ethernet)
  • Built-in web server
  • General purpose I/O
  • Synchronization through SNTP

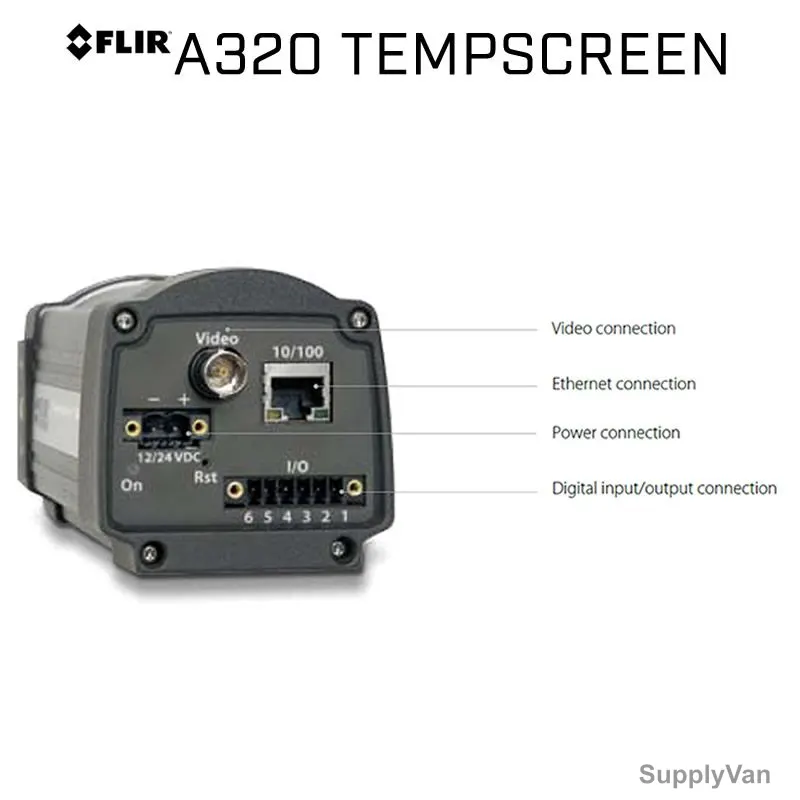

  • Composite video output
  • Multi-camera utility software: FLIR IP Config and FLIR IR Monitor included
  • 16-bit 320 x 240 pixel images semi-real time, signal and temperature linear
  • 100 Mbps Ethernet (100 m cable, wireless, fiber, etc.)
  • Spatial Resolution: 1.36 mrad

Items Included:
1x Infrared Camera, 1x 25 Degree Lens, 1x Ethernet Cable, 1x Mains Cable, 1x Power Cable, 1x Pig-Tailed, 1x Power Supply, 1x Printed Documentation, 1x Utility CD-ROM
Item Name:
Thermal Imaging Camera
Model:
A320
Article Number:
A3XX
Manufacturer:
Flir
Color:
Black
Temperature Range:
-20 to 350 Deg.C
Pitch:
25 µm
Max Aperture:
F/1.3
Min Focus Distance:
0.4 Mtrs
Frame Rate:
30Hz
Display Resolution:
320 x 240p
Spectral Range:
7.5 to 13 µm
Battery Voltage:
10-30 VDC
Thermal Sensitivity:
<0.05 Deg.C at 30 Deg.C (86 Deg.F)/50 mK
Field of View:
25 x 18.8 Degree
Digital Zoom:
1 to 8x Continuous, Digital, Interpolating
Accuracy:
+/-2 Deg.C (+/-3.6 Deg.F) or +/-2%
Detector Resolution:
320 x 240p
Storage Temperature:
-40 to 70 Deg.C
Operating Temperature:
-15 to 50 Deg.C
Focal Length:
18mm
Detector Type:
Focal plane array (FPA), Uncooled microbolometer
Housing Material:
Aluminium
Brand Origin (not manufacture):
United States
Delivery Time:
2-7 Days
Unit:
Piece
