Fluke Automotive Multimeter Combo Kit, 88V-A, 10A, 1000V
(No reviews yet)
Write a Review
- Brand:
- Fluke
- SKU:
- 817915994531
- Minimum Purchase:
- 1 unit
- Item Name:
- Automotive Multimeter Combo Kit
- Model:
- 88V-A
- Manufacturer:
- Fluke
- Color:
- Yellow and Black
- Storage Temperature:
- -40 to +60 Deg.C
- Brand Origin (not manufacture):
- United States
- Product Size L x B x H (Cms):
- 20.1L x 9.8B x 5.2H
- Delivery Time:
- 2-7 Days
- Unit:
- Kit
Description
A complete automotive diagnostic package with everything you need in an automotive multimeter. Fluke 88V has replaced the 88. The Fluke 88V has improved measurement functions, troubleshooting features and accuracy to solve more problems on conventional and hybrid vehicles. The 88V is made in the U.S.A. and carries the industry leading lifetime warranty. The Fluke 88V operates very similar to the classic Fluke 88, but with more problem solving power, safety, convenience and impact protection. The 88V is independently tested to comply with the 2nd edition of ANSI/ISA S82.01 and EN61010-1 CAT IV 600V/CAT III 1000V. They can withstand impulses in excess of 8,000V and reduce risks related to surges and spikes.
Specifications
DCV Maximum Voltage: 1000V DCV Accuracy: +/-(0.1% + 1) DCV Best Resolution: 0.01 mV ACV Maximum Voltage: 1000V ACV Accuracy: +/-(0.5% + 2) ACV AC Bandwidth: 5 kHz ACV Best Resolution: 0.01 mV DC Current Maximum Amps: 10 A DC Amps Accuracy: +/-(0.4% + 2) DC Best Resolution: 0.001 mA AC Current Maximum Amps: 10 A AC Amps Accuracy: +/-(1.2% + 2) AC Best Resolution: 0.001 mA Resistance Maximum Resistance: 50 MOhm Resistance Accuracy: +/-(0.4% + 1) Resistance Best Resolution: 0.1Ohm Capacitance Maximum Capacitance: 9,999 µF Capacitance Accuracy: +/-(1% + 2) Capacitance Best Resolution: 0.01 nF Frequency Maximum Frequency: 200 KHz Frequency Accuracy: +/-(0.005% + 1) Frequency Best Resolution: 0.01 Hz Duty Cycle Maximum Duty Cycle: 99.9% Duty Cycle Accuracy: within 2% per KHz +0.1% Duty Cycle Best Resolution: 0.1% Temperature Measurement: -200.0 Deg.C - 1090 Deg.C, -328.0 Deg.F - 1994.0 Deg.F, 1.0% excluding probe 80 BK Temperature Probe: -40 Deg.C - 260 Deg.C, -40 Deg.F - 500 Deg.F, 2.2 Deg.C or 2% whichever is greater Conductance Maximum Conductance: 60.00 nS Conductance Accuracy: +/-(1.0% + 10) Conductance Maximum Resolution: 0.01 nS
Items Included:

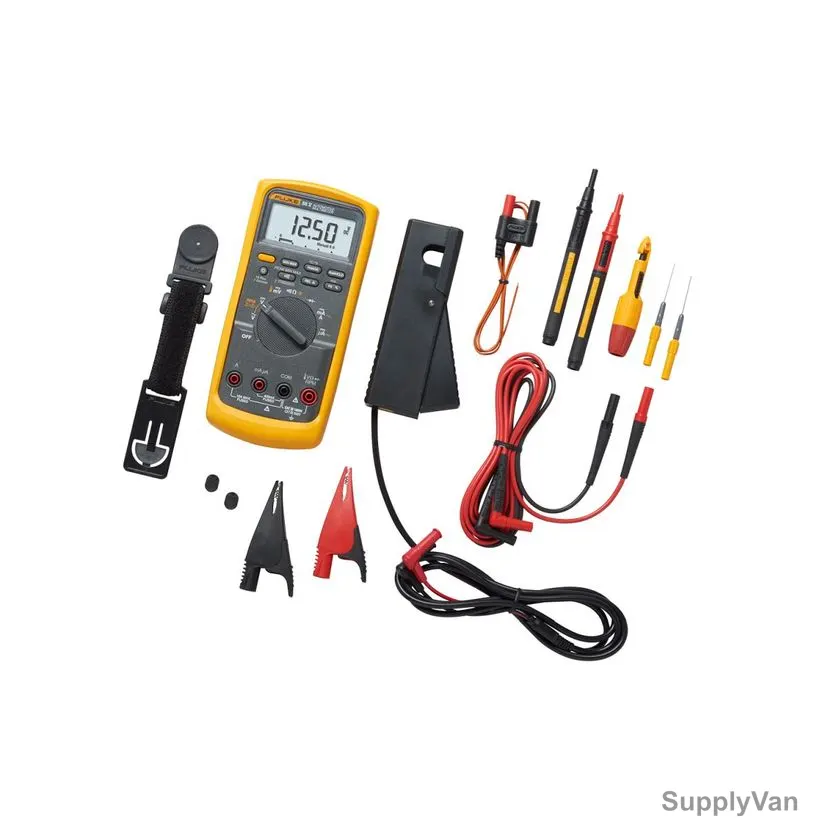

Fluke 88V Multimeter, silicone test leads, alligator clips, test probes, RPM 80 inductive, TPAK Magnetic Meter, Hanging Kit, temperature probe, 2x backprobe pins, Insulation probe, carrying case, Holster, 9V battery (installed), CD with detailed manual
View AllClose
Specifications
- The Fluke 88V has improved measurement functions, troubleshooting features and accuracy to solve more problems on conventional and hybrid vehicles. The 88V is made in the U.S.A. and carries the industry leading lifetime warranty.
- Built in thermometer lets you carry one less tool (temperature probe included)
- Resistance, continuity
- RPM measurements with inductive pickup
- Millisecond pulse width measurements for fuel injectors
- Magnet hanger to attach meter to the vehicle and free your hands for other tasks
- Min/Max-Average recording with Min/Max Alert to capture variations automatically
- Peak capture to record transients as fast as 250 µs
- Relative mode to remove test lead interference from low ohms measurements
- Auto and manual ranging for maximum flexibility
- Touch Hold to capture stable readings avoiding noisy signals
- Large display digits and two-level bright white backlight for increased visibility
- Analog bargraph for fast changing or unstable signals
- Input Alert provides audible warning against wrong use of input jacks
- Improved selectable sleep mode for long battery life
Items Included:
Fluke 88V Multimeter, silicone test leads, alligator clips, test probes, RPM 80 inductive, TPAK Magnetic Meter, Hanging Kit, temperature probe, 2x backprobe pins, Insulation probe, carrying case, Holster, 9V battery (installed), CD with detailed manual
Item Name: |
Automotive Multimeter Combo Kit |
Model: |
88V-A |
Manufacturer: |
Fluke |
Color: |
Yellow and Black |
Storage Temperature: |
-40 to +60 Deg.C |
Brand Origin (not manufacture): |
United States |
Product Size L x B x H (Cms): |
20.1L x 9.8B x 5.2H |
Delivery Time: |
2-7 Days |
Unit: |
Kit |
