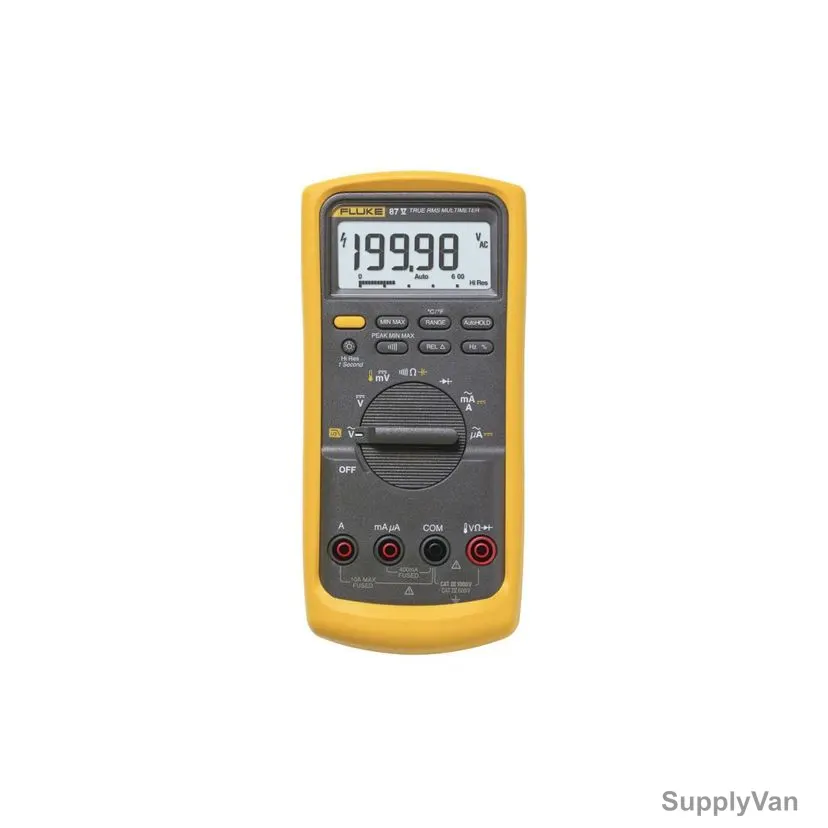

Fluke TRMS Industrial Multimeter, 87-V-EUR, 10A, 1000V
(No reviews yet)
Write a Review
- Brand:
- Fluke
- SKU:
- 431356323416
- Minimum Purchase:
- 1 unit
- Item Name:
- Industrial Multimeter
- Model:
- 87-V-EUR
- Manufacturer:
- Fluke
- Color:
- Yellow and Black
- Battery Size:
- AA
- Safety Rating:
- EN 61010-1 to 1000V CAT III, 600V CAT IV
- Battery Type:
- Alkaline
- Storage Temperature:
- -40 to +60 Deg.C
- Battery Life:
- 400 hrs typical, without backlight
- Humidity:
- 0 to 90% (0 - 35Deg.C), 0 - 70% (35 - 55Deg.C)
- Brand Origin (not manufacture):
- United States
- Certification:
- 2937,7048,15091
- Product Size L x B x H (Cms):
- 20.1L x 9.8B x 5.2H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Fluke 87V Industrial Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment - even in loud, high-energy, and high-altitude locations. The 87V is designed so you can work more efficiently. The 87V lets you identify complex electrical problems fast. It supports accurate measurements on VFDs using a low-pass filter. The meter also captures intermittents as fast as 250 µS using Peak Capture. High-frequency, high-energy noise generated by large drive systems is blocked from your measurements with specially designed shielding. All the inputs in the 87V are updated to the third edition of the EN 61010-1 to CAT III 1000V and CAT IV 600V. The meter is designed to withstand spikes of more than 8000V. You also benefit from an audible Input Alert warning if the test leads are placed in the incorrect input jacks for the measurement being made.
Specifications
Voltage DC Maximum voltage: 1000V Voltage DC Accuracy: +/-(0.05% + 1) Voltage DC Maximum resolution: 10 µV Voltage AC Maximum voltage: 1000V Voltage AC Accuracy: +/-(0.7% + 2) True RMS Voltage AC AC bandwidth: 20 kHz with low pass filter; 3 dB @ 1 kHz Voltage AC Maximum resolution: 0.1 mV Current DC Maximum amps: 10 A (20 A for 30 seconds maximum) Current DC Amps accuracy: +/-(0.2% + 2) Current DC Maximum resolution: 0.01 µA Current AC Maximum amps: 10 A (20 A for 30 seconds maximum) Current AC Amps accuracy: +/-(1.0% + 2) True RMS Current AC Maximum resolution: 0.1 µA Resistance Maximum resistance: 50 MOhm Resistance Accuracy: +/-(0.2% + 1) Resistance Maximum resolution: 0.1 Ohm Capacitance Maximum capacitance: 9,999 µF Capacitance Accuracy: +/-(1% + 2) Capacitance Maximum resolution: 0.01 nF Frequency Maximum frequency: 200 kHz Frequency Accuracy: +/-(0.005% + 1) Frequency Maximum resolution: 0.01 Hz Duty Cycle Maximum duty cycle: 99.9% Duty Cycle Accuracy: +/-(0.2% per kHz + 0.1%) Duty Cycle Maximum resolution: 0.1% Temperature measurement: -200.0 Deg.C - 1090 Deg.C (328.0 Deg.F - 1994.0 Deg.F) excluding probe 80 BK temperature probe: -40.0 Deg.C - 260 Deg.C (40.0 Deg.F - 500 Deg.F, 2.2 Deg.C or 2% whichever is greater) Conductance Maximum conductance: 60.00 nS Conductance Accuracy: +/-(1.0% + 10) Conductance Maximum resolution: 0.01 nS Diode Range: 3 V Diode Resolution: 1 mV Diode Accuracy: +/-(2% + 1) Duty cycle range Accuracy: Within +/-(0.2% per kHz + 0.1%) Display Digital: 6000 counts updates 4/sec, 19,999 counts in high-resolution mode Analog: 32 segments, updates 40/sec Frequency: 19,999 counts, updates 3/sec at > 10 Hz Shock: 1 Meter drop per IEC 61010-1:2001 Vibration: Per MIL-PRF-28800 for a Class 2 instrument
Items Included:

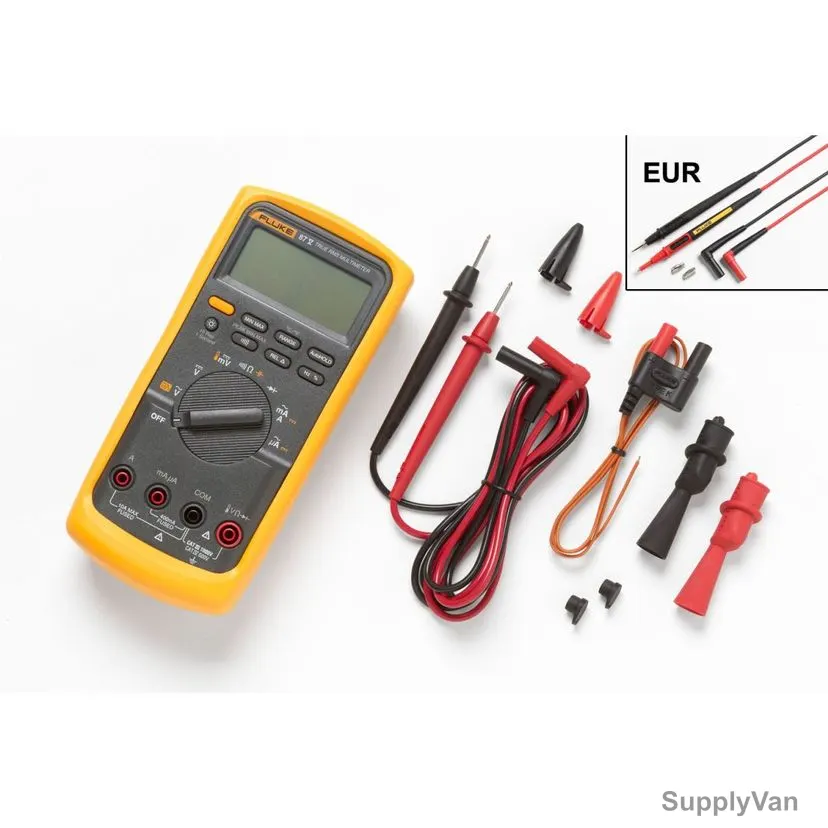

Fluke 87V Industrial Multimeter, TL75 Test Leads (TL175 EUR), AC175 Alligator Clips, Holster, 9V Battery (Installed), 80BK Temperature Probe
View AllClose
Specifications
- The Fluke 87V Industrial Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment - even in loud, high-energy, and high-altitude locations
- Identify complex signal problems fast
- Supports accurate measurements on VFDs using a low-pass filter
- Captures intermittents as fast as 250 µS with Peak Capture
- Easy-access door for fast battery changes without breaking the calibration seal
- Analog bar graph for fast changing or unstable signals
- Large digit display with bright, two-level backlight for easier reading in low light
- Touch Hold keeps readings on display even after removing probes
Items Included:
Fluke 87V Industrial Multimeter, TL75 Test Leads (TL175 EUR), AC175 Alligator Clips, Holster, 9V Battery (Installed), 80BK Temperature Probe
Item Name: |
Industrial Multimeter |
Model: |
87-V-EUR |
Manufacturer: |
Fluke |
Color: |
Yellow and Black |
Battery Size: |
AA |
Safety Rating: |
EN 61010-1 to 1000V CAT III, 600V CAT IV |
Battery Type: |
Alkaline |
Storage Temperature: |
-40 to +60 Deg.C |
Battery Life: |
400 hrs typical, without backlight |
Humidity: |
0 to 90% (0 - 35Deg.C), 0 - 70% (35 - 55Deg.C) |
Brand Origin (not manufacture): |
United States |
Certification: |
2937,7048,15091 |
Product Size L x B x H (Cms): |
20.1L x 9.8B x 5.2H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
Related Products
Available on Request
Fluke

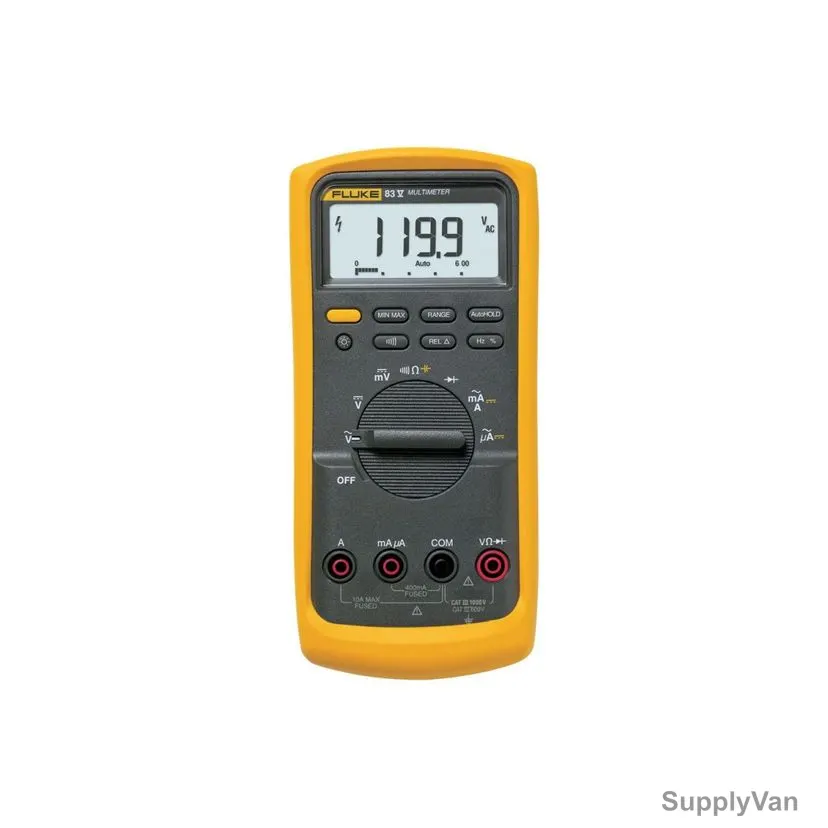

Industrial electricians around the world trust the Fluke 83V Industrial Multimeter from the control room to the plant floor. With its accuracy and troubleshooting capabilities, the Fluke 83V...
