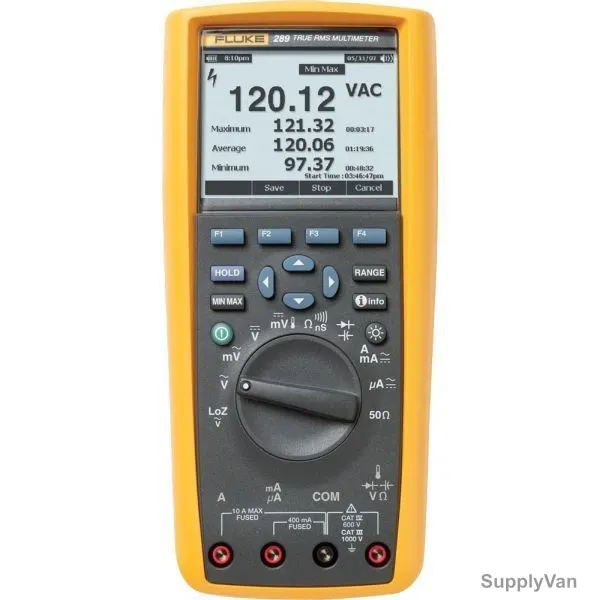

Fluke Digital Multimeter, 289, 1000V
- Brand:
- Fluke
- SKU:
- 554813795133
- Minimum Purchase:
- 1 unit
- Item Name:
- Digital Multimeter
- Manufacturer:
- Fluke
- Color:
- Yellow and Black
- Voltage:
- 1000V
- Battery Type:
- 6 x AA alkaline batteries
- Capacitance:
- 1 nF/10 nF 100 nF/1 uF/10 uF/100 uF/1000 uF/10 mF/100 mF
- Measuring Voltage Range - AC:
- 50.000 mV/500.00 mV/5.0000 V/50.000 V/500.00 V/1000.0 V
- Measuring Voltage Range - DC:
- 50.000 mV/500.00 mV/5.0000 V/50.000 V/500.00 V/1000.0 V
- Measuring Current Range - DC:
- 0.5 MA/5 mA/50 mA/400 mA/5 A/10 A
- Measuring Current Range - AC:
- 0.5 MA/5 mA/50 mA/400 mA/5 A/10 A
- Measuring Resistance Range:
- 50 Ohm/500 Ohm/5 k Ohm/50 k Ohm/500 k Ohm/5 m Ohm/50 m Ohm/500 m Ohm
- Measuring Frequency Range:
- 99.999Hz/999.99Hz/9.9999kHz/99.999kHz/999.99kHz
- Storage Temperature (Degree Celsius):
- -40 to 60 Deg.C
- Input Voltage Frequency:
- 100kHz
- Battery Life:
- 200 Hrs
- Brand Origin (not manufacture):
- Romania
- Product Size L x B x H (Cms):
- 6L x 10.2B x 22.2H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Fluke 289 is the next generation high performance industrial logging multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment.
View AllClose
- Trend Capture graphically displays logged data session to quickly determine whether anomalies may have occurred.
- Zoom on trend provides unprecedented ability to view and analyze Trend Capture data; zoom in up to 14 times
- Selectable ac filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
- Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event.
- Save multiple logging sessions before pc download is necessary.
- 100 hours minimum, 200 hours in logging mode
Item Name: |
Digital Multimeter |
Manufacturer: |
Fluke |
Color: |
Yellow and Black |
Voltage: |
1000V |
Battery Type: |
6 x AA alkaline batteries |
Capacitance: |
1 nF/10 nF 100 nF/1 uF/10 uF/100 uF/1000 uF/10 mF/100 mF |
Measuring Voltage Range - AC: |
50.000 mV/500.00 mV/5.0000 V/50.000 V/500.00 V/1000.0 V |
Measuring Voltage Range - DC: |
50.000 mV/500.00 mV/5.0000 V/50.000 V/500.00 V/1000.0 V |
Measuring Current Range - DC: |
0.5 MA/5 mA/50 mA/400 mA/5 A/10 A |
Measuring Current Range - AC: |
0.5 MA/5 mA/50 mA/400 mA/5 A/10 A |
Measuring Resistance Range: |
50 Ohm/500 Ohm/5 k Ohm/50 k Ohm/500 k Ohm/5 m Ohm/50 m Ohm/500 m Ohm |
Measuring Frequency Range: |
99.999Hz/999.99Hz/9.9999kHz/99.999kHz/999.99kHz |
Storage Temperature (Degree Celsius): |
-40 to 60 Deg.C |
Input Voltage Frequency: |
100kHz |
Battery Life: |
200 Hrs |
Brand Origin (not manufacture): |
Romania |
Product Size L x B x H (Cms): |
6L x 10.2B x 22.2H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
