Fluke TRMS AC/DC Clamp Meter With iFlex, 381, 2500A
(No reviews yet)
Write a Review
- Brand:
- Fluke
- SKU:
- 881388753529
- Minimum Purchase:
- 1 unit
- Item Name:
- AC/DC Clamp Meter
- Manufacturer:
- Fluke
- DC Current Accuracy:
- 2% +/-5 Digits
- AC Current Accuracy:
- 2% +/-5 Digits, 5% +/-5 Digits
- Dimensions:
- 277 x 88 x 43mm
- Resistance Accuracy:
- 1% +/-5 Digits
- AC Voltage Accuracy:
- 1% +/-5 Digits
- DC Voltage Accuracy:
- 1% +/-5 Digits
- Measuring Current Range - AC:
- 999.9A
- Measuring Current Range - DC:
- 999.9A
- Measuring Resistance Range:
- 600/6K/60 kOhm
- Storage Temperature:
- -40 to +60 Deg.C
- Frequency Accuracy:
- 0.5% +/-5 Digits
- Measuring Voltage Range - AC:
- 600/1000V
- Measuring Voltage Range - DC:
- 600/1000V
- Measuring Frequency Range:
- 5/500Hz
- Jaw Opening Size:
- 34mm
- Humidity:
- 90 % RH (at 10 to 30 Deg.C), <=75 % RH (at 30 to 40 Deg.C), <=45 % RH (at 40 to 50 Deg.C)
- Brand Origin (not manufacture):
- United States
- Warranty (Subject to Conditions):
- 3 Years
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Product overview: Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlexWhat Once Took Two People, Now Takes OneRange: 999.9A Resolution: 0.1A Accuracy: 2% +/-5 digits (10 Hz to 100 Hz), 2.5% +/-5 digits (100-500 Hz) Crest Factor (50 Hz/60 Hz): 3 at 500A, 2.5 at 600A, 1.42 at 1000A, Add 2% for C.F. >2 AC Current via Flexible Current ProbeRange: 999.9A/2500A (45-500Hz) Resolution: 0.1 A (<= 600A), 1A (<= 2500A) Accuracy: 3% +/-5 digits (5-500Hz) Crest Factor (50/60Hz): 3.0 at 1100A, 2.5 at 1400A, 1.42 at 2500A, Add 2% for C.F. > 2
View AllClose

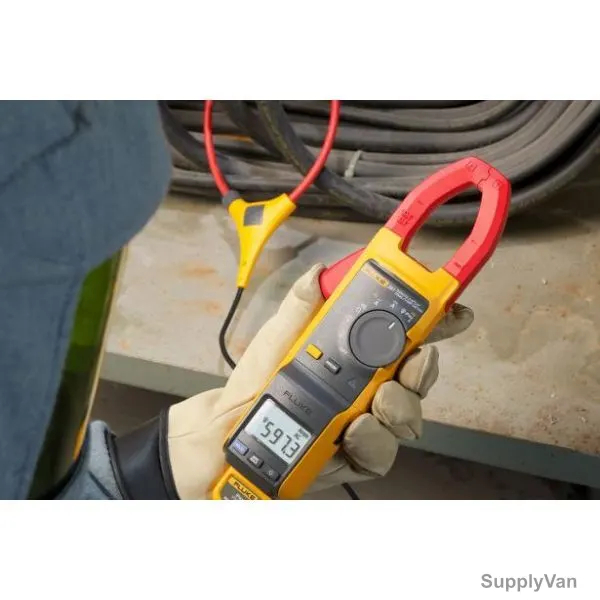

Now one technician can do jobs that would otherwise require two people. Clamp the Fluke 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real-time readings. The iFlex Flexible Current Probe (included) expands the measurement range to 2500 A AC while providing increased display flexibility. With a cord that runs 6 feet, you can finally measure those tight spaces, awkward sized conductors and disorganized wires.
AC Current via Jaw- Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement for added flexibility without interference with measurement accuracy
- The removable magnetic display can be conveniently mounted where it is easily seen
- iFlex Flexible Current Probe expands the measurement range to 2500 A AC
- CAT IV 600 V, CAT III 1000 V
- Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- Ergonomic design fits in your hand and can be used while wearing protective equipment
- Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
- Soft carrying case
- Flexible current probe diameter: 7.5mm
- Flexible current probe cable length (head to electronics connector): 1.8 Mtrs
Item Name: |
AC/DC Clamp Meter |
Manufacturer: |
Fluke |
DC Current Accuracy: |
2% +/-5 Digits |
AC Current Accuracy: |
2% +/-5 Digits, 5% +/-5 Digits |
Dimensions: |
277 x 88 x 43mm |
Resistance Accuracy: |
1% +/-5 Digits |
AC Voltage Accuracy: |
1% +/-5 Digits |
DC Voltage Accuracy: |
1% +/-5 Digits |
Measuring Current Range - AC: |
999.9A |
Measuring Current Range - DC: |
999.9A |
Measuring Resistance Range: |
600/6K/60 kOhm |
Storage Temperature: |
-40 to +60 Deg.C |
Frequency Accuracy: |
0.5% +/-5 Digits |
Measuring Voltage Range - AC: |
600/1000V |
Measuring Voltage Range - DC: |
600/1000V |
Measuring Frequency Range: |
5/500Hz |
Jaw Opening Size: |
34mm |
Humidity: |
90 % RH (at 10 to 30 Deg.C), <=75 % RH (at 30 to 40 Deg.C), <=45 % RH (at 40 to 50 Deg.C) |
Brand Origin (not manufacture): |
United States |
Warranty (Subject to Conditions): |
3 Years |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
