Fluke TRMS Wireless AC/DC Clamp Meter With iFlex, 376FC, 2500A
(No reviews yet)
Write a Review
- Brand:
- Fluke
- SKU:
- 143128221369
- Minimum Purchase:
- 1 unit
- Item Name:
- AC/DC Clamp Meter
- Model:
- 376FC
- Manufacturer:
- Fluke
- Battery Size:
- AA
- DC Current Accuracy:
- 2% +/-5 Digits
- AC Current Accuracy:
- 1% +/-5 Digits
- Dimensions:
- 249 x 85 x 45mm
- Resistance Accuracy:
- 1% +/-5 Digits
- AC Voltage Accuracy:
- 1% +/-5 Digits
- DC Voltage Accuracy:
- 1% +/-5 Digits
- Capacitance Accuracy:
- 1% +/-4 Digits
- Measuring Current Range - DC:
- 999.9A
- Measuring Resistance Range:
- 60 kOhm
- Measuring Capacitance Range:
- 1000?F
- Storage Temperature:
- -40 to +60 Deg.C
- Measuring Voltage Range - AC:
- 1000V
- Measuring Voltage Range - DC:
- 1000V
- Jaw Opening Size:
- 34mm
- Humidity:
- 90 % RH (at 10 to 30 Deg.C), <=75 % RH (at 30 to 40 Deg.C), <=45 % RH (at 40 to 50 Deg.C)
- Brand Origin (not manufacture):
- United States
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

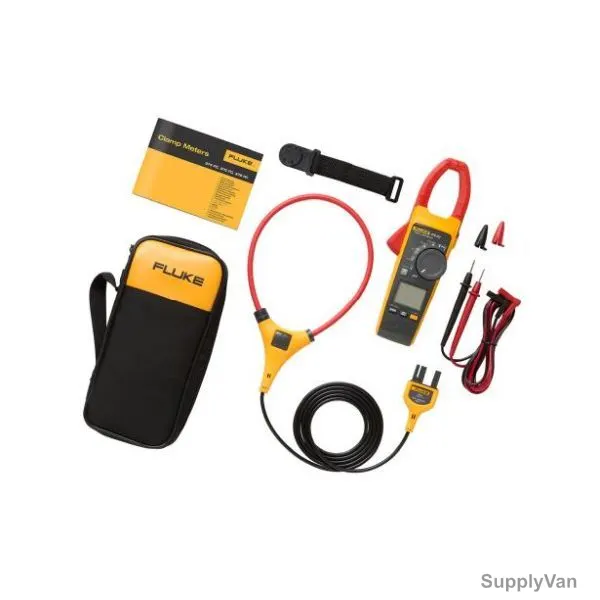

Product overview: Fluke 376 FC True-RMS Clamp Meter with iFlexVoltage to 1000VAC or DC Resistance to 60 kOhm with continuity detection Min, max, average, and inrush recording to capture variations automatically 500 mV DC measurement range to interface with other accessories 1000 ?F capacitance measurement Work safely and convenientlyThe 376 FC clamp carries a CAT III 1000 V, CAT IV 600 V safety rating, designed to offer you the highest possible protection in a test tool. The included iFlex flexible current probe provides easier access to large conductors in tight spaces. The flexible probe:Expands the measurement range to 2500 A AC Allows frequency measurement to 500 Hz with body jaw and iFlex AC Current via JawRange: 999.9A Resolution: 0.1A Accuracy: 2% +/-5 digits (10 Hz to 100 Hz), 2.5% +/-5 digits (100-500 Hz) Crest Factor (50 Hz/60 Hz): 3 at 500A, 2.5 at 600A, Add 2% for C.F. >2 AC Current via Flexible Current ProbeRange: 2500A Resolution: 0.1 A (<= 600A), 1A (<= 2500A) Accuracy: 3% +/-5 digits (5-500Hz) Crest Factor (50/60Hz): 3.0 at 1100A, 2.5 at 1400A, 1.42 at 2500A, Add 2% for C.F. > 2
View AllClose
The Fluke 376 FC True-rms Clamp Meter with iFlex is the most advanced troubleshooting tool for industrial and commercial electricians. The 376 is part of the Fluke Connect family of wireless test tools that enable you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity.
Find the cause of difficult problemsThe 376 FC clamp meter uses an integrated low-pass filter for accurate measurements of non-linear signals, such as adjustable speed drives, electronic ballasts and other non-linear loads. The clamp also uses proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it.
Measure:- Measures AC/DC current with included iFlex current probe
- VFD low pass filter for accurate measurements of non-linear signals
- Remotely log, trend and monitor to pinpoint intermittent faults
- Inrush measurement to filter out noise and capture starting current
- Flexible current probe diameter: 7.5mm
- Flexible current probe cable length (head to electronics connector): 1.8 Mtrs
- Maximum voltage between any terminal and earth ground: 1000V
Item Name: |
AC/DC Clamp Meter |
Model: |
376FC |
Manufacturer: |
Fluke |
Battery Size: |
AA |
DC Current Accuracy: |
2% +/-5 Digits |
AC Current Accuracy: |
1% +/-5 Digits |
Dimensions: |
249 x 85 x 45mm |
Resistance Accuracy: |
1% +/-5 Digits |
AC Voltage Accuracy: |
1% +/-5 Digits |
DC Voltage Accuracy: |
1% +/-5 Digits |
Capacitance Accuracy: |
1% +/-4 Digits |
Measuring Current Range - DC: |
999.9A |
Measuring Resistance Range: |
60 kOhm |
Measuring Capacitance Range: |
1000?F |
Storage Temperature: |
-40 to +60 Deg.C |
Measuring Voltage Range - AC: |
1000V |
Measuring Voltage Range - DC: |
1000V |
Jaw Opening Size: |
34mm |
Humidity: |
90 % RH (at 10 to 30 Deg.C), <=75 % RH (at 30 to 40 Deg.C), <=45 % RH (at 40 to 50 Deg.C) |
Brand Origin (not manufacture): |
United States |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
