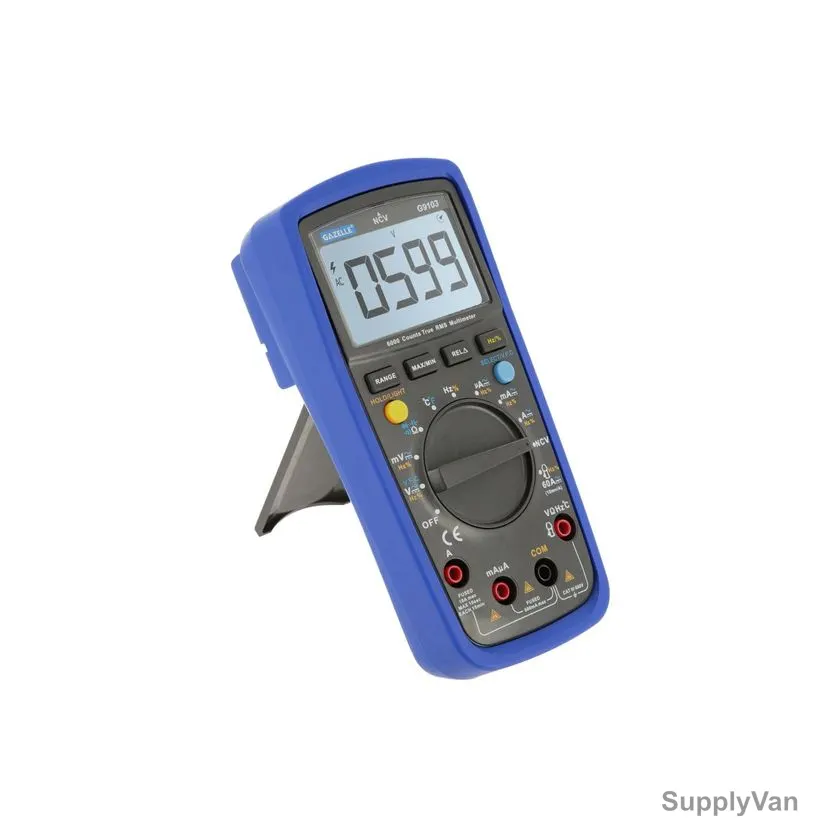

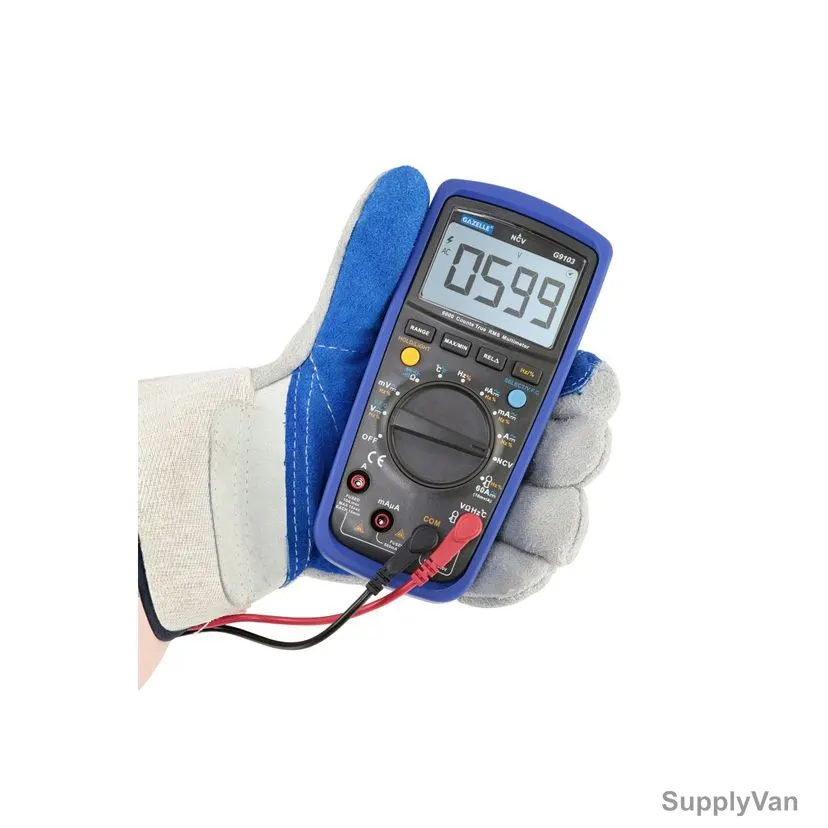

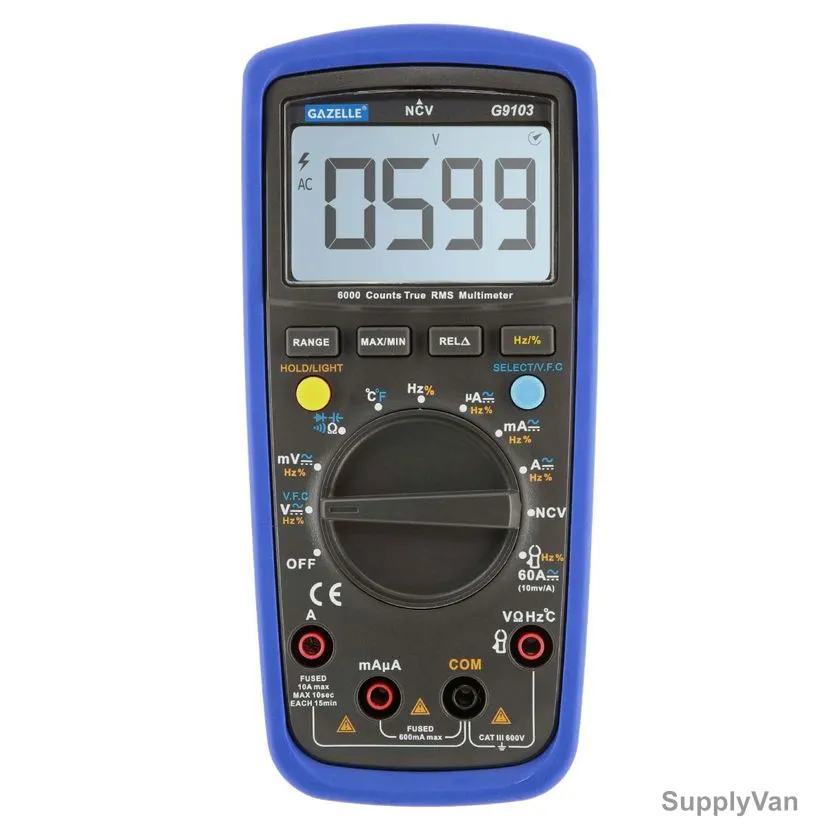

Gazelle True RMS Industrial Digital Multimeter, G9103, 600V, 10A
(No reviews yet)
Write a Review
- Brand:
- Gazelle
- SKU:
- 425189344493
- Minimum Purchase:
- 1 unit
- Item Name:
- Digital Multimeter
- Model:
- G9103
- Manufacturer:
- Gazelle
- Color:
- Blue and Black
- Sampling Rate:
- 3 times/sec
- Battery Size:
- AA R6P
- Safety Rating:
- CAT II 1000V/CAT III 600V
- Temperature Range:
- -40 to 1000 Deg.C
- DC Current Accuracy:
- +/-(1.0%+3)
- AC Current Accuracy:
- +/-(0.7%+2)
- Input Impedance:
- >=10MOhm
- Resistance Accuracy:
- +/-(0.8%+2)
- Display Type:
- LCD
- Battery Voltage:
- 1.5V
- Measuring Voltage Range - AC:
- 60mV to 600V
- Measuring Voltage Range - DC:
- 60mV to 600V
- Storage Temperature:
- -10 to 50 Deg.C
- Measuring Current Range - DC:
- 600uA to 10A
- Measuring Current Range - AC:
- 600uA to 10A
- Measuring Capacitance Range:
- 9.999nF to 99.99mF
- DC Voltage Accuracy:
- +/-(0.5%+2)
- Temperature Accuracy:
- +/-(1.0%+3)
- AC Voltage Accuracy:
- +/-(0.8%+3)
- Frequency Accuracy:
- +/-(0.1%+4)
- Capacitance Accuracy:
- +/-(4%+5)
- Measuring Resistance Range:
- 600Ohm to 60MOhm
- Measuring Frequency Range:
- 10Hz to 10MHz
- Relative Humidity:
- 0 to 30 Deg.C: <75% RH, 30 to 40 Deg.C: <50% RH
- Brand Origin (not manufacture):
- United Arab Emirates
- Standards:
- 15400,15401,10318,905,15395
- Product Size L x B x H (Cms):
- 17.5L x 8B x 4.8H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

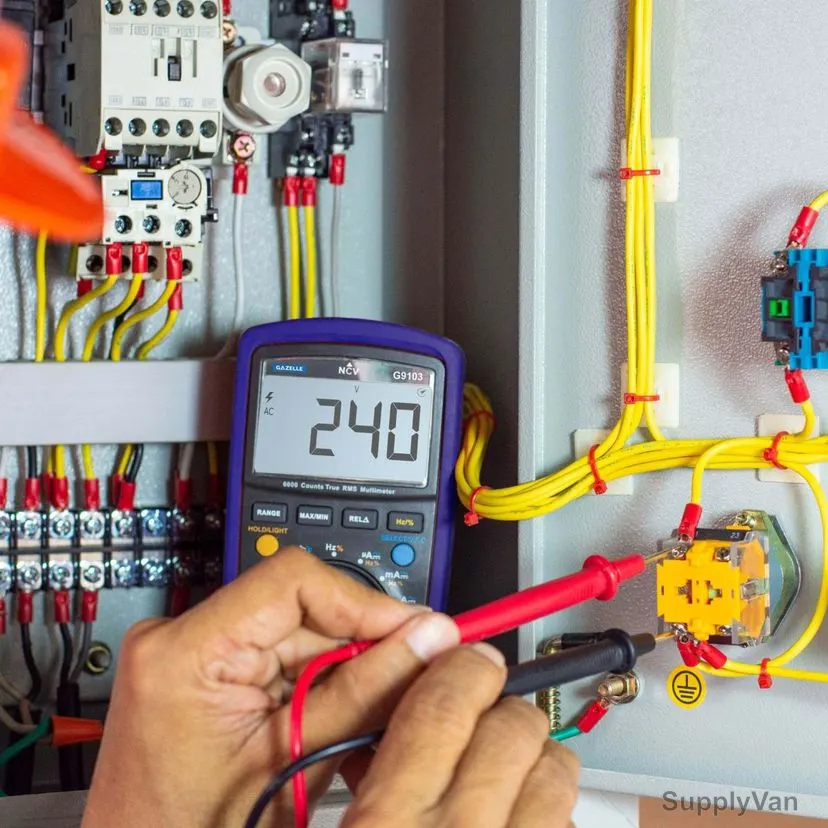

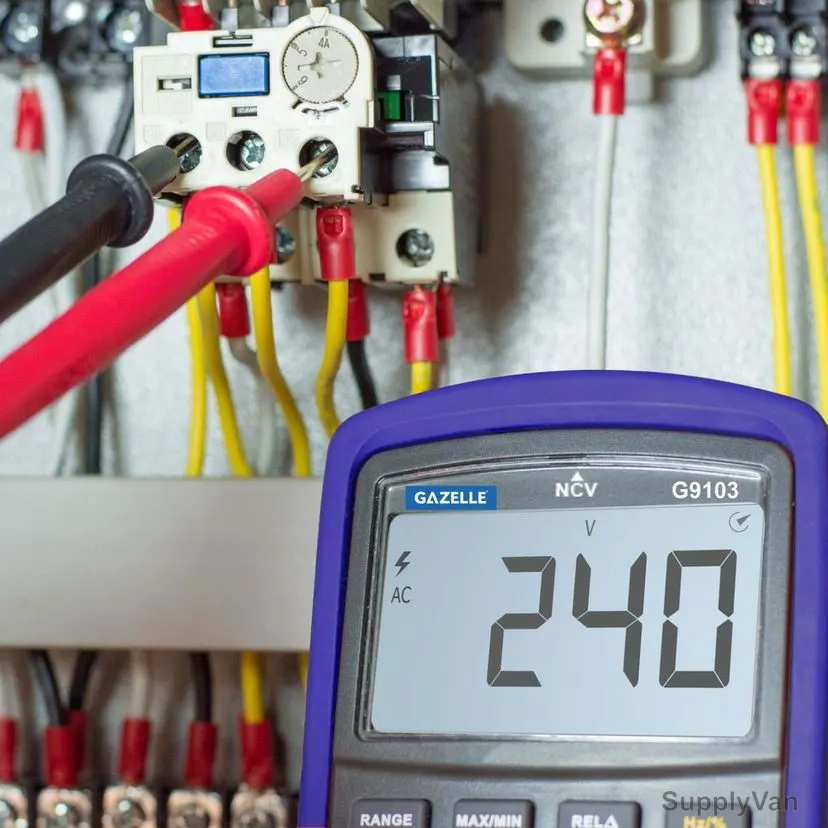

The Gazelle G9103 True RMS Industrial DMM is designed for professional and Industrial applications. Tested for safe use in CATIII 600V environments, the meter is capable for AC and DC measurements for your daily maintenance and trouble shooting activities. Using the V.F.C. function will enable the meter to measure voltage accurately after the Variable frequency drive by applying a low pass filter.
Items Included:
User Manual, Test Lead, K-Type Thermocouple
View AllClose
- Safe, accurate, multi-function and value for money
- Rugged DMM pass the 2meters drop test
- NCV voltage detectors for safety verification
- With Thermocouple probe for temperature measurement
- Big LCD display with bright white backlight for clear view of measurement
- Datahold
- Low battery indication
- LCD backlight
- Continuity test
- Built-in kickstand for hands-free use
- Auto power-off
Items Included:
User Manual, Test Lead, K-Type Thermocouple
