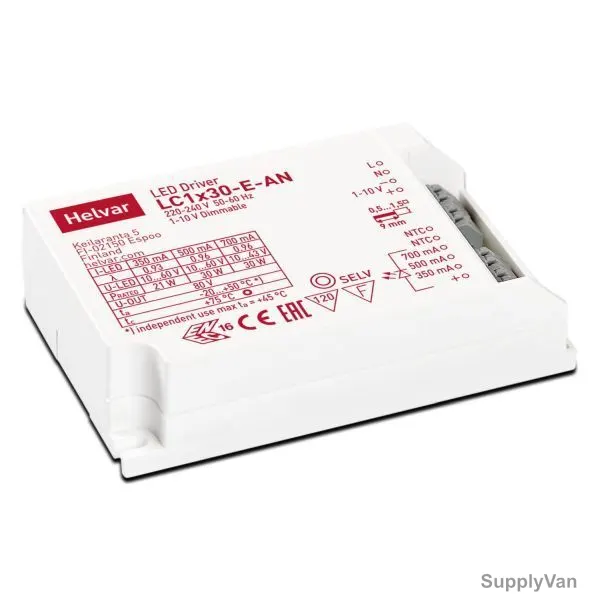

Helvar LED Driver, LC1x30-E-AN, 30W
- Brand:
- Helvar
- SKU:
- 969275166825
- Minimum Purchase:
- 1 unit
- Item Name:
- LED Driver
- Model:
- LC1x30-E-AN
- Product Series:
- LC1
- Manufacturer:
- Helvar
- Input Voltage Frequency:
- 50-60Hz
- Input Voltage:
- 198-264VAC
- Power:
- 30W
- Amps (A):
- 350/500/700mA
- DC Output:
- 10-60VDC
- Efficiency:
- Less than 87 percent
- Working Temperature:
- -20 to 50 Deg.C
- Dimmable:
- No
- Ingress Protection (IP Rating):
- IP20
- Lifetime:
- 50000 Hrs
- Brand Origin (not manufacture):
- Finland
- Certification:
- CE
- Product Size L x B x H (Cms):
- 10.6L x 6.7B x 2.8H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
LED driver is suited for either in-built and independent luminaire usage. In order to have safe and reliable LED driver operation, the LED luminaires will need to comply with the relevant standards and regulations
View AllClose
- It allow use both inside the luminaire and outside the luminaire, via the LC1x30-SR strain relief.
- Ensure that the LED driver does not exceed temperature higher than specified on the product datasheets
- Selectable constant current output: 350/500/700 mA
- External NTC thermal input
- Dimming range: 1-100percent
- 1-10V dimmable LED driver
- Available with protective coating
- Max temperature at Tc point : 75 Deg.C
- Safety Class: I
Item Name: |
LED Driver |
Model: |
LC1x30-E-AN |
Product Series: |
LC1 |
Manufacturer: |
Helvar |
Input Voltage Frequency: |
50-60Hz |
Input Voltage: |
198-264VAC |
Power: |
30W |
Amps (A): |
350/500/700mA |
DC Output: |
10-60VDC |
Efficiency: |
Less than 87 percent |
Working Temperature: |
-20 to 50 Deg.C |
Dimmable: |
No |
Ingress Protection (IP Rating): |
IP20 |
Lifetime: |
50000 Hrs |
Brand Origin (not manufacture): |
Finland |
Certification: |
CE |
Product Size L x B x H (Cms): |
10.6L x 6.7B x 2.8H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
