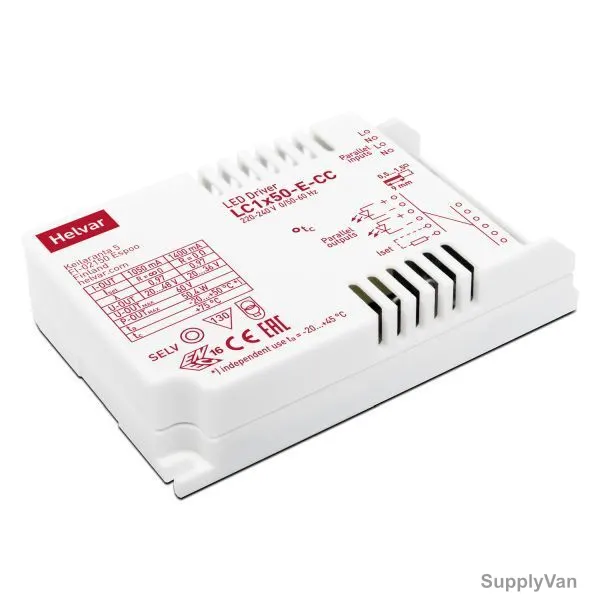

Helvar LED Driver, LC1x50-E-CC, 50W
- Brand:
- Helvar
- SKU:
- 847557676833
- Minimum Purchase:
- 1 unit
- Item Name:
- LED Driver
- Model:
- LC1x50-E-CC
- Product Series:
- LC1
- Manufacturer:
- Helvar
- Input Voltage Frequency:
- 50-60Hz
- Input Voltage:
- 198-264VAC
- Power:
- 50W
- Amps (A):
- 1050/1400mA
- Current Range:
- 0.23-0.30A
- DC Output:
- 20-48/20-36VDC
- Efficiency:
- 89 percent
- Working Temperature:
- -20 to 50 Deg.C
- Dimmable:
- No
- Ingress Protection (IP Rating):
- IP20
- Lifetime:
- 50000 Hrs
- Brand Origin (not manufacture):
- Finland
- Certification:
- CE, EAC
- Product Size L x B x H (Cms):
- 15.2L x 8.1B x 3H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
LED Driver Allows open and flexible luminaire design, High efficiency up to 89 percent and Suitable for use with DC input.
View AllClose
- Adjustable constant current output: 1050 mA (default) to 1400 mA
- Driver protection Class II
- Suitable for class I and class II luminaires
- Optional strain relief available for independent use
- Available with protective coating
- Max temperature at Tc point: 75 Deg.C
- Safety Class: I
Item Name: |
LED Driver |
Model: |
LC1x50-E-CC |
Product Series: |
LC1 |
Manufacturer: |
Helvar |
Input Voltage Frequency: |
50-60Hz |
Input Voltage: |
198-264VAC |
Power: |
50W |
Amps (A): |
1050/1400mA |
Current Range: |
0.23-0.30A |
DC Output: |
20-48/20-36VDC |
Efficiency: |
89 percent |
Working Temperature: |
-20 to 50 Deg.C |
Dimmable: |
No |
Ingress Protection (IP Rating): |
IP20 |
Lifetime: |
50000 Hrs |
Brand Origin (not manufacture): |
Finland |
Certification: |
CE, EAC |
Product Size L x B x H (Cms): |
15.2L x 8.1B x 3H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
