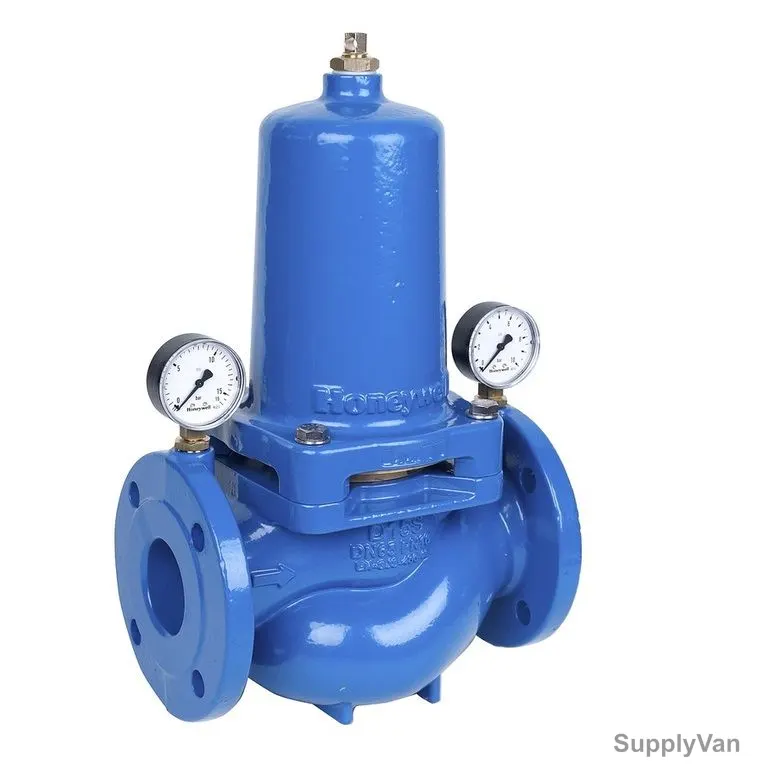

Honeywell Pressure Reducing Valve, D15S-150A, Flanged, 6 Inch
(No reviews yet)
Write a Review
- Brand:
- Honeywell
- SKU:
- 337212322724
- Minimum Purchase:
- 1 unit
- Item Name:
- Pressure Reducing Valve
- Model:
- D15S-150A
- Manufacturer:
- Honeywell
- Working Temperature:
- 65 Deg.C
- Flow Rate:
- 63 cu.m/h
- Working Pressure:
- 16 bar
- Valve Connection Size:
- 6 Inch
- Pressure:
- 1.5-8 bar
- Lifetime:
- 2,00,000
- Length:
- 480mm
- Height:
- 541mm
- Connection Type:
- Flanged
- Diameter Nominal:
- DN150
- Brand Origin (not manufacture):
- United States
- Standards:
- BS EN 1567
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Honeywell Pressure Reducing Valve D15S Direct acting pressure reducing valve to protect systems from excessive supply pressure. Design according to DIN EN 1567. DVGW tested. Housing and bonnet made of ductile cast iron with polyamide coating inside and outside for high corrosion protection. Patented cartridge solution for easy installation and maintenance. Brass and stainless steel cartridge insert with EPDM and PU diaphragm and seals. Non-rising spindle for adjusting the output pressure with adjusting screw on the spring bonnet. With inlet and outlet pressure gauge. Valve requiring maintenance according to DIN EN 806-5
View AllClose
- Inlet pressure balancing – no influence on outlet pressure by fluctuating inlet pressure
- Patented cartridge solution for easy assembly and maintenance
- Three cartridge inserts for all nominal widths make warehousing efficient
- High corrosion resistance due to stainless steel cartridge and PA coating
- The adjustment spring is not in contact with the drinking water
- With inlet and outlet pressure gauge
Item Name: |
Pressure Reducing Valve |
Model: |
D15S-150A |
Manufacturer: |
Honeywell |
Working Temperature: |
65 Deg.C |
Flow Rate: |
63 cu.m/h |
Working Pressure: |
16 bar |
Valve Connection Size: |
6 Inch |
Pressure: |
1.5-8 bar |
Lifetime: |
2,00,000 |
Length: |
480mm |
Height: |
541mm |
Connection Type: |
Flanged |
Diameter Nominal: |
DN150 |
Brand Origin (not manufacture): |
United States |
Standards: |
BS EN 1567 |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
