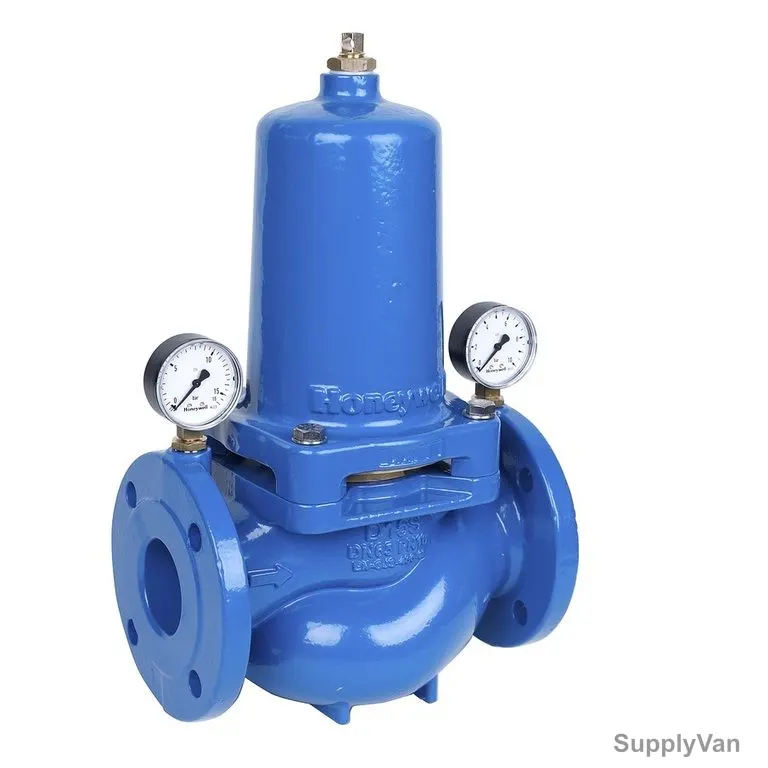

Honeywell Pressure Reducing Valve, D15S-65A, Flanged, 2-1/2 Inch

(No reviews yet) Write a Review
Brand:
Honeywell
SKU:
477958787993
Minimum Purchase:
1 unit
Item Name:
Pressure Reducing Valve
Model:
D15S-65A
Manufacturer:
Honeywell
Working Temperature:
65 Deg.C
Flow Rate:
12 cu.m/h
Working Pressure:
16 bar
Valve Connection Size:
2-1/2 Inch
Pressure:
1.5-6.5 bar
Lifetime:
2,00,000
Length:
290mm
Height:
370mm
Connection Type:
Flanged
Diameter Nominal:
DN65
Brand Origin (not manufacture):
United States
Standards:
BS EN 1567
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED3,730.75

Available on Request

Description

Honeywell Pressure Reducing Valve D15S Direct acting pressure reducing valve to protect systems from excessive supply pressure. Design according to DIN EN 1567. DVGW tested. Housing and bonnet made of ductile cast iron with polyamide coating inside and outside for high corrosion protection. Patented cartridge solution for easy installation and maintenance. Brass and stainless steel cartridge insert with EPDM and PU diaphragm and seals. Non-rising spindle for adjusting the output pressure with adjusting screw on the spring bonnet. With inlet and outlet pressure gauge. Valve requiring maintenance according to DIN EN 806-5
  • Inlet pressure balancing – no influence on outlet pressure by fluctuating inlet pressure
  • Patented cartridge solution for easy assembly and maintenance
  • Three cartridge inserts for all nominal widths make warehousing efficient
  • High corrosion resistance due to stainless steel cartridge and PA coating
  • The adjustment spring is not in contact with the drinking water
  • With inlet and outlet pressure gauge
Item Name:
Pressure Reducing Valve
Model:
D15S-65A
Manufacturer:
Honeywell
Working Temperature:
65 Deg.C
Flow Rate:
12 cu.m/h
Working Pressure:
16 bar
Valve Connection Size:
2-1/2 Inch
Pressure:
1.5-6.5 bar
Lifetime:
2,00,000
Length:
290mm
Height:
370mm
Connection Type:
Flanged
Diameter Nominal:
DN65
Brand Origin (not manufacture):
United States
Standards:
BS EN 1567
Delivery Time:
2-7 Days
Unit:
Piece
