Long Valve Regulated Lead Acid Battery, WP20-12NE, 12V, 20A
(No reviews yet)
Write a Review
- Brand:
- Long
- SKU:
- 975516488775
- Minimum Purchase:
- 1 unit
- Item Name:
- Valve Regulated Lead Acid Battery
- Model:
- WP20-12NE
- Manufacturer:
- Long
- Color:
- Black
- Resistance:
- 10 mohm
- Battery Voltage:
- 12V
- Battery Capacity:
- 20A

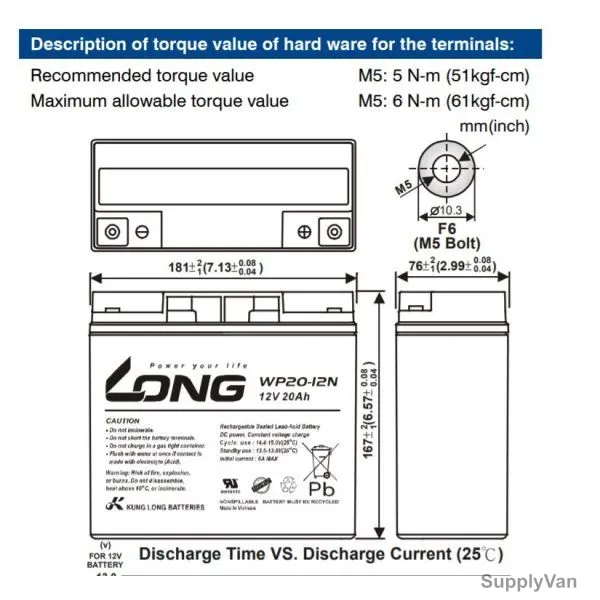

- Overall Height:
- 167 +2-1mm
- Discharge Current:
- 5 seconds: 300A
- Rechargeable:
- Yes
- Case Material:
- ABS UL94 HB Option: Flammability resistance of (UL94 V-0)
- Battery Life:
- 3-5 Years
- Terminals:
- F6
- Length (MilliMeter):
- 181 +2-1mm
- Width (MilliMeter):
- 76 +2-1mm
- Height (MilliMeter):
- 167 +2-1mm
- Brand Origin (not manufacture):
- Taiwan
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
- Nominal Capacity: 20 hour rate (1A to 10.50V) 20Ah, 10 hour rate (1.9A to 10.50V) 19Ah, 5 hour rate (3.4A to 10.20V) 17Ah, 1 C (20A to 9.60V) 11.33Ah, 3 C (60A to 9.60V) 8Ah
- Charging Methods at 25 Deg.C(77 Deg.F): Cycle use: Charging Voltage 14.4 to 15.0V, Coefficient -5.0mV/?/cell, Maximum Charging Current? 6A, Standby use: Float Charging Voltage 13.5 to 13.8V, Coefficient -3.0mV/?/cell
Item Name: |
Valve Regulated Lead Acid Battery |
Model: |
WP20-12NE |
Manufacturer: |
Long |
Color: |
Black |
Resistance: |
10 mohm |
Battery Voltage: |
12V |
Battery Capacity: |
20A |
Overall Height: |
167 +2-1mm |
Discharge Current: |
5 seconds: 300A |
Rechargeable: |
Yes |
Case Material: |
ABS UL94 HB Option: Flammability resistance of (UL94 V-0) |
Battery Life: |
3-5 Years |
Terminals: |
F6 |
Length (MilliMeter): |
181 +2-1mm |
Width (MilliMeter): |
76 +2-1mm |
Height (MilliMeter): |
167 +2-1mm |
Brand Origin (not manufacture): |
Taiwan |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
