Mean Well Rack Mountable Front End Rectifier RCP-1600-24, RCP-1600, 24VDC, 1608W, 0-67A
(No reviews yet)
Write a Review
- Brand:
- Mean Well
- SKU:
- 172594926388
- Minimum Purchase:
- 1 unit
- Item Name:
- Front End Rectifier
- Model:
- RCP-1600-24
- Product Series:
- RCP-1600
- Manufacturer:
- Mean Well
- Power Factor:
- 0.97-230VAC
- Humidity:
- 20-90% RH Non-Condensing
- Efficiency:
- 88.5%
- Storage Temperature:
- -40 to +85 Deg.C
- Current Range:
- 0-67A
- Frequency:
- 47/63Hz
- Input Voltage:
- 90-264VAC
- Output Voltage:
- 127-370VDC
- Voltage:
- 24VDC
- Wattage:
- 1608W
- Brand Origin (not manufacture):
- Taiwan
- Warranty (Subject to Conditions):
- 5 Years
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
- Universal AC input/Full range
- Withstand 300VAC surge for 5 seconds (RCP-1600)
- Built-in active PFC function
- Built-in auxiliary power
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan
- High power density up to 25W/inch3 (RCP-1600)
- 1U low profile (41mm height)
- Output voltage programmable; Constant current level I cc programmable (RCP-1600)
- Active current sharing up to 3 units (RCP-1000) or 5 units (RCP-1600) in one 19" rack, 3 racks max. can be operated in parallel (up to 8 units for RCP-1000 or 15 units for RCP-1600)
- Built-in remote ON/OFF control
- Built-in remote sense function
- AC OK (RCP-1000) and DC OK signal output
- Internal OR-ing diode (RCP-1000) or OR-ing FET (RCP-1600), hot-swap operation
- Optional I2C serial data bus (RCP-1000); Built-in PMBus serial communication (RCP-1600)
Item Name: |
Front End Rectifier |
Model: |
RCP-1600-24 |
Product Series: |
RCP-1600 |
Manufacturer: |
Mean Well |
Power Factor: |
0.97-230VAC |
Humidity: |
20-90% RH Non-Condensing |
Efficiency: |
88.5% |
Storage Temperature: |
-40 to +85 Deg.C |
Current Range: |
0-67A |
Frequency: |
47/63Hz |
Input Voltage: |
90-264VAC |
Output Voltage: |
127-370VDC |
Voltage: |
24VDC |
Wattage: |
1608W |
Brand Origin (not manufacture): |
Taiwan |
Warranty (Subject to Conditions): |
5 Years |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
Related Products
Mean Well
AED252.00
AED299.00
.

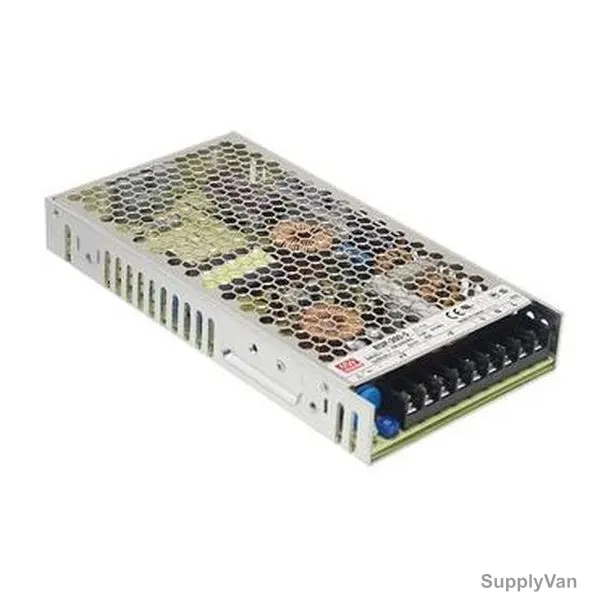

The Mean Well RSP-200-24 is a reliable and high-quality AC/DC power supply designed to meet the power requirements of various electronic applications. This power supply offers a single output of 24V...
