Raiden BW Cable Gland, BW20S, Brass, 20S
- Brand:
- Raiden
- SKU:
- 892545373745
- Minimum Purchase:
- 1 unit
- Item Name:
- Cable Gland
- Model:
- BW20S
- Manufacturer:
- Raiden
- Material:
- Brass
- Finish:
- Brass and Nickel Plated
- Size:
- 20S
- Cable Type:
- Steel Wire Armour
- Accessories Included:
- Gland, Lock Nut, Shroud, Earth Tag, Upto 32mm & 40mm Size
- Brand Origin (not manufacture):
- United Kingdom
- Standards:
- EN 50262:1999
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Raiden BW4 part type brass indoor cable gland is applied with all varieties of single wire armour (SWA) cable providing mechanical cable retention and electrical flow thru armour wire finish. The BW design offers the benefit of longer body to protect th armour wires from impact. This cable glands is designed and tested to BS6121:1989. It meets the requirement of EN 50262:1999.
View AllClose

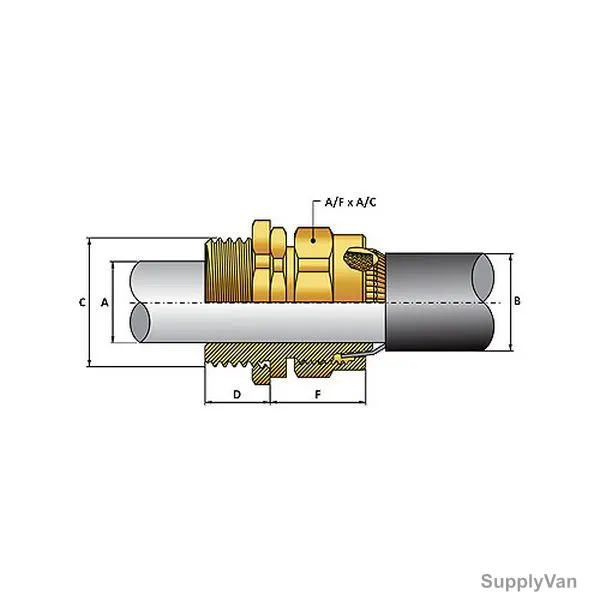

- Armour Clamping: Clamping Ring
- Diameter C: 20mm
- Length Minimum E: 10mm
- Diameter "A" Max: 8-11.8mm
- Diameter "B" Max: 12-16mm
- Armor Diameter: 0.90/1.25mm
- Across Flat D: 22mm
- Acoss Corner: 25mm
Item Name: |
Cable Gland |
Model: |
BW20S |
Manufacturer: |
Raiden |
Material: |
Brass |
Finish: |
Brass and Nickel Plated |
Size: |
20S |
Cable Type: |
Steel Wire Armour |
Accessories Included: |
Gland, Lock Nut, Shroud, Earth Tag, Upto 32mm & 40mm Size |
Brand Origin (not manufacture): |
United Kingdom |
Standards: |
EN 50262:1999 |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
