Raiden BW4 part type brass indoor cable gland is applied with all varieties of single wire armour (SWA) cable providing mechanical cable retention and electrical flow thru armour wire finish. The BW design offers the benefit of longer body to protect th armour wires from impact. This cable glands is designed and tested to BS6121:1989. It meets the requirement of EN 50262:1999.

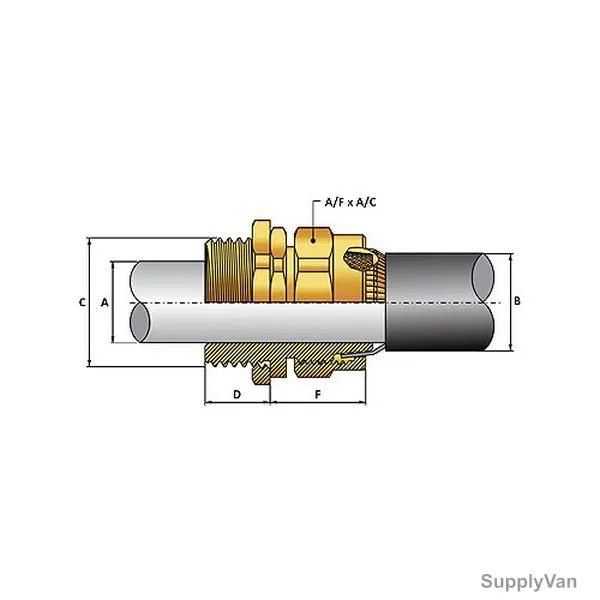

- Armour Clamping: Clamping Ring
- Diameter C: 63mm
- Length Minimum E: 15mm
- Diameter "A" Max: 49-56mm
- Diameter "B" Max: 58.50-66mm
- Armor Diameter: 2.50mm
- Across Flat D: 78mm
- Acoss Corner: 86mm
