Raiden A2 Cable Gland, A263L, Brass, 63L
- Brand:
- Raiden
- SKU:
- 697397841514
- Minimum Purchase:
- 1 unit
- Item Name:
- Cable Gland
- Model:
- A263L
- Manufacturer:
- Raiden
- Material:
- Brass
- Finish:
- Brass and Nickel Plated
- Size:
- 63L
- Cable Type:
- Unarmoured
- Ingress Protection (IP Rating):
- IP66
- Accessories Included:
- Gland, Lock Nut, Shroud, Earth Tag, Upto 32mm & 40mm Size
- Brand Origin (not manufacture):
- United Kingdom
- Standards:
- EN 50262:1999
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Raiden A2 type brass indoor gland is used with all types of unarmoured cable, providing mechanical cable retention Sealing is provided on the cable outer sheath . The Raiden A2 range of industrial cable glands is designed and tested as per BS6121:Part1:1989. It meets the requirement of EN 50262:1999.
View AllClose

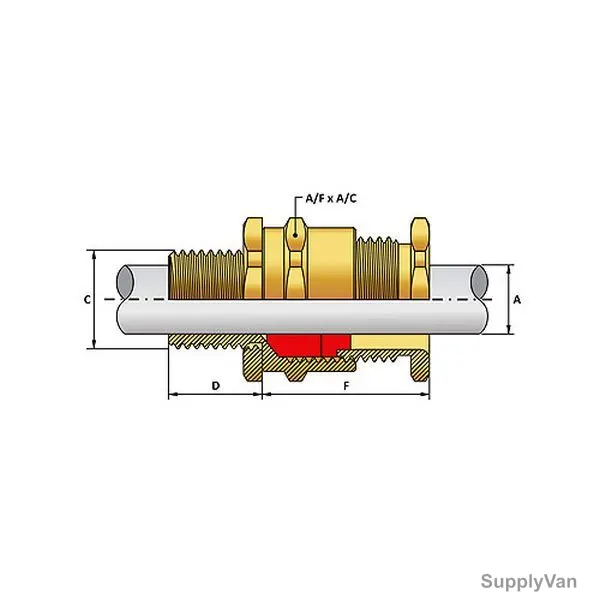

- Sealing Areas: Cable Outer Sheath
- Diameter C: 63mm
- Length Minimum E: 15mm
- Diameter "A" Max: 49.00 - 56.00
- Diameter "B" Max: 58.50 - 66.00
- Armor Diameter: 2.50mm
- Across Flat D: 78mm
- Acoss Corner: 86mm
Item Name: |
Cable Gland |
Model: |
A263L |
Manufacturer: |
Raiden |
Material: |
Brass |
Finish: |
Brass and Nickel Plated |
Size: |
63L |
Cable Type: |
Unarmoured |
Ingress Protection (IP Rating): |
IP66 |
Accessories Included: |
Gland, Lock Nut, Shroud, Earth Tag, Upto 32mm & 40mm Size |
Brand Origin (not manufacture): |
United Kingdom |
Standards: |
EN 50262:1999 |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
