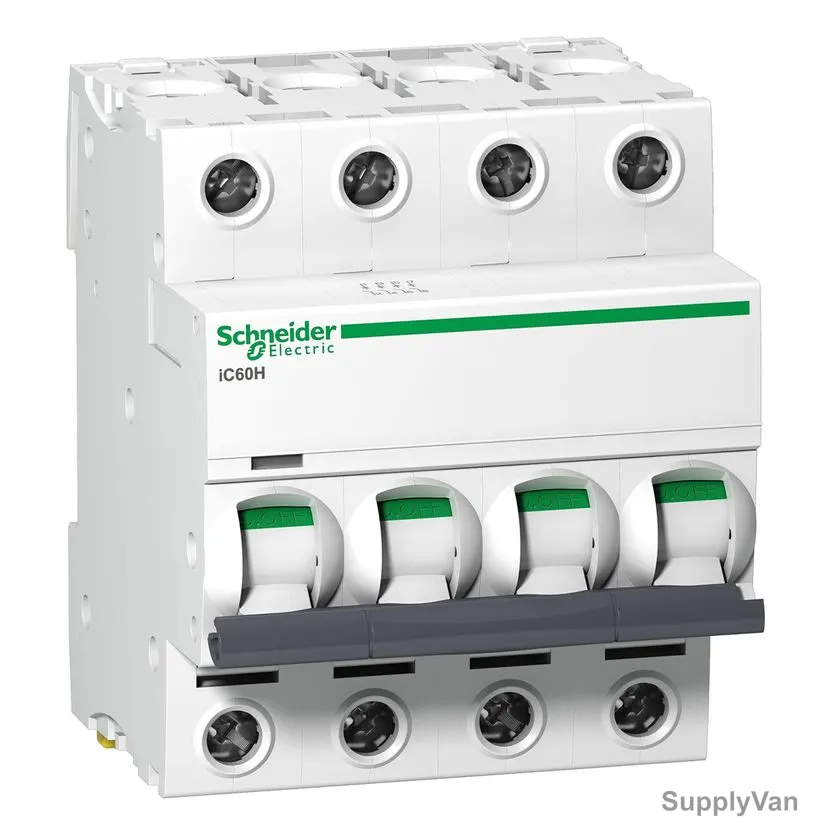

Schneider Electric iC60H Miniature Circuit Breaker, A9F54440, 4P, Curve, C, 40A
- Brand:
- Schneider Electric
- SKU:
- 214968886367
- Minimum Purchase:
- 1 unit
- Item Name:
- Miniature Circuit Breaker
- Model:
- A9F54440
- Product Series:
- Acti9
- Manufacturer:
- Schneider Electric
- Color:
- White
- Height (MilliMeter):
- 85mm
- Width (MilliMeter):
- 72mm
- Curve Type:
- C
- Frequency:
- 50/60 Hz
- Trip Type:
- Thermal-magnetic
- Relative Humidity:
- 95% at 55 Deg.C
- Number of Poles:
- 4P
- Depth:
- 78.5mm
- Control Type:
- Toggle
- Current:
- 40A
- Insulation Voltage:
- 500VAC
- Operational Voltage:
- 440VAC
- Ingress Protection (IP Rating):
- IP20
- Storage Temperature:
- -40 to 85 Deg.C
- Brand Origin (not manufacture):
- France
- Standards:
- 3221,16654
- Certification:
- CE
- Warranty (Subject to Conditions):
- 18 Months
- Delivery Time:
- 10 Weeks
- Unit:
- Piece
Description
This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 4P circuit breaker with 4 protected poles, 40A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 30kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost.
View AllClose
- Network Type: AC
- Utilisation Category: Category A conforming to EN/IEC 60947-2
- Magnetic Tripping Limit: 8 x In +/- 20%
- Limitation Class: 3
- Rated Impulse Withstand Voltage: 6 kV
- Local Signalling: Trip indicator
- Mounting Mode: Clip-On
- Mounting Support: Rail
- 9mm Pitches: 8
- Mechanical Durability: 20000 cycles
- Electrical Durability: 10000 cycles
- Provision for Padlocking: Padlockable
- Wire Stripping Length: 14mm for top or bottom connection
- Tightening Torque: 3.5 Nm
- Earth-leakage Protection: Separate block
Item Name: |
Miniature Circuit Breaker |
Model: |
A9F54440 |
Product Series: |
Acti9 |
Manufacturer: |
Schneider Electric |
Color: |
White |
Height (MilliMeter): |
85mm |
Width (MilliMeter): |
72mm |
Curve Type: |
C |
Frequency: |
50/60 Hz |
Trip Type: |
Thermal-magnetic |
Relative Humidity: |
95% at 55 Deg.C |
Number of Poles: |
4P |
Depth: |
78.5mm |
Control Type: |
Toggle |
Current: |
40A |
Insulation Voltage: |
500VAC |
Operational Voltage: |
440VAC |
Ingress Protection (IP Rating): |
IP20 |
Storage Temperature: |
-40 to 85 Deg.C |
Brand Origin (not manufacture): |
France |
Standards: |
3221,16654 |
Certification: |
CE |
Warranty (Subject to Conditions): |
18 Months |
Delivery Time: |
10 Weeks |
Unit: |
Piece |
