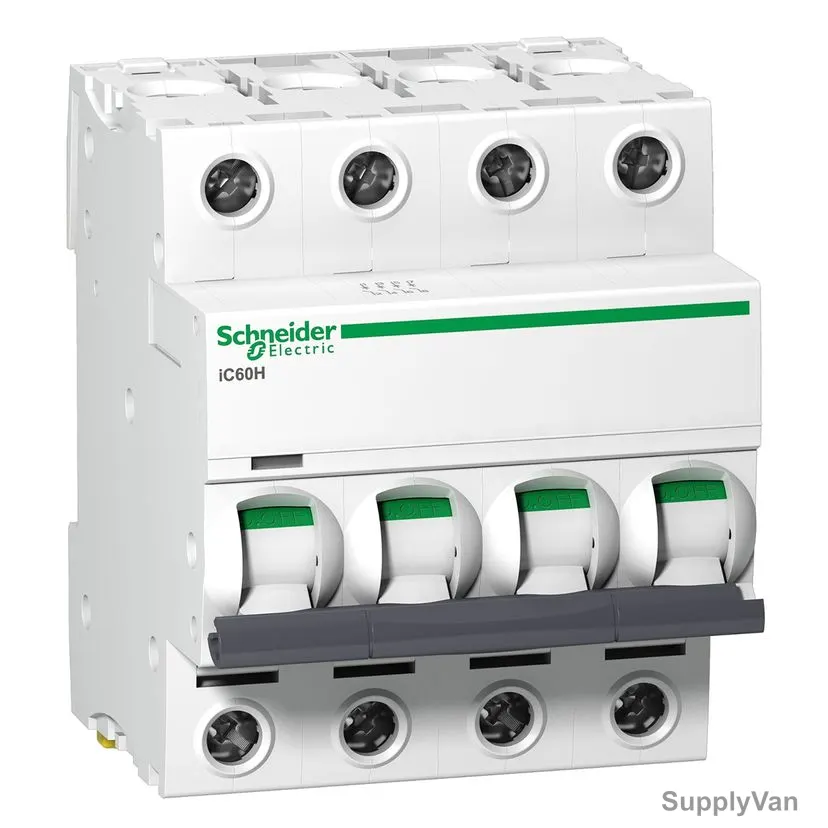

Schneider Electric iC60H Miniature Circuit Breaker, A9F54463, 4P, Curve, C, 63A

(No reviews yet) Write a Review
Brand:
Schneider Electric
SKU:
178746552423
Minimum Purchase:
1 unit
Item Name:
Miniature Circuit Breaker
Model:
A9F54463
Product Series:
Acti9
Manufacturer:
Schneider Electric
Color:
White
Height (MilliMeter):
85mm
Width (MilliMeter):
72mm
Curve Type:
C
Frequency:
50/60 Hz
Trip Type:
Thermal-magnetic
Relative Humidity:
95% at 55 Deg.C
Number of Poles:
4P
Depth:
78.5mm
Control Type:
Toggle
Operating Ambient Temperature (Degree Celsius):
-35 to 70 Deg.C
Current:
63A
Insulation Voltage:
500VAC
Operational Voltage:
440VAC
Ingress Protection (IP Rating):
IP20
Storage Temperature:
-40 to 85 Deg.C
Brand Origin (not manufacture):
France
Standards:
3221,16654
Certification:
CE
Warranty (Subject to Conditions):
18 Months
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED148.00

Description

This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 4P circuit breaker with 4 protected poles, 63A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 30kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost.
  • Network Type: AC
  • Utilisation Category: Category A conforming to EN/IEC 60947-2
  • Magnetic Tripping Limit: 8 x In +/- 20%
  • Limitation Class: 3
  • Rated Impulse Withstand Voltage: 6 kV
  • Local Signalling: Trip indicator
  • Mounting Mode: Clip-On
  • Mounting Support: Rail
  • 9mm Pitches: 8
  • Mechanical Durability: 20000 cycles
  • Electrical Durability: 10000 cycles
  • Provision for Padlocking: Padlockable
  • Wire Stripping Length: 14mm for top or bottom connection
  • Tightening Torque: 3.5 Nm
  • Earth-leakage Protection: Separate block
