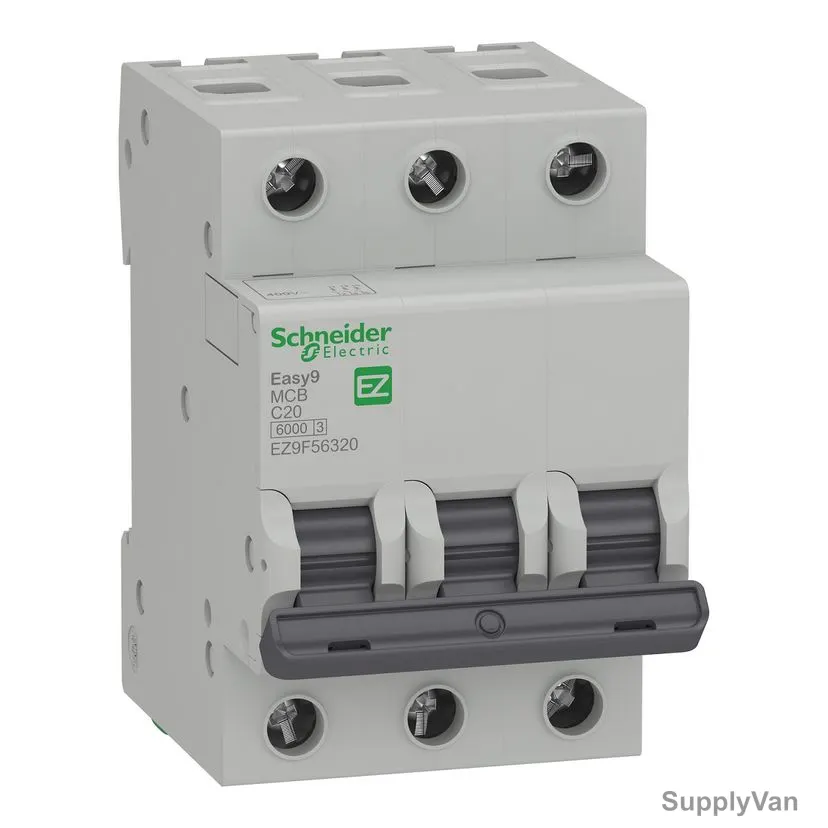

Schneider Electric Miniature Circuit Breaker, EZ9F56320, Easy9, 3 Pole, 400V, Curve C, 20A
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 746978616797
- Minimum Purchase:
- 1 unit
- Item Name:
- Miniature Circuit Breaker
- Model:
- EZ9F56320
- Product Series:
- Easy9
- Manufacturer:
- Schneider Electric
- Color:
- Grey
- Frequency:
- 50/60 Hz
- Curve Type:
- C
- Relative Humidity:
- 95% at -5 to 60 Deg.C
- Depth:
- 66.5mm
- Mounting Type:
- DIN Rail
- Width:
- 54mm
- Height:
- 81mm
- Amps (A):
- 20A
- Insulation Voltage:
- 500VAC
- Operational Voltage:
- 220-400VAC
- Breaking Capacity:
- 6000A
- Ingress Protection (IP Rating):
- IP20
- Storage Temperature:
- -40 to 85 Deg.C
- Residual Current Type:
- AC
- Warranty (Subject to Conditions):
- 18 Months
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 20A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 220VAC conforming to IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue operational voltage is 220VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 66.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5 to 60 Deg.C. The storage temperature is -40 to 85 Deg.C.
View AllClose
- Trip Characteristic: C Curve
- Breaking Capacity: 6kA (6000A)
- DIN rail mountable
- Short circuit and overload protection
- Fault trip indication on front handle
- Compact modular design
- Suitable for residential & commercial panels
- IEC 60898-1 compliant
Item Name: |
Miniature Circuit Breaker |
Model: |
EZ9F56320 |
Product Series: |
Easy9 |
Manufacturer: |
Schneider Electric |
Color: |
Grey |
Frequency: |
50/60 Hz |
Curve Type: |
C |
Relative Humidity: |
95% at -5 to 60 Deg.C |
Depth: |
66.5mm |
Mounting Type: |
DIN Rail |
Width: |
54mm |
Height: |
81mm |
Amps (A): |
20A |
Insulation Voltage: |
500VAC |
Operational Voltage: |
220-400VAC |
Breaking Capacity: |
6000A |
Ingress Protection (IP Rating): |
IP20 |
Storage Temperature: |
-40 to 85 Deg.C |
Residual Current Type: |
AC |
Warranty (Subject to Conditions): |
18 Months |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
