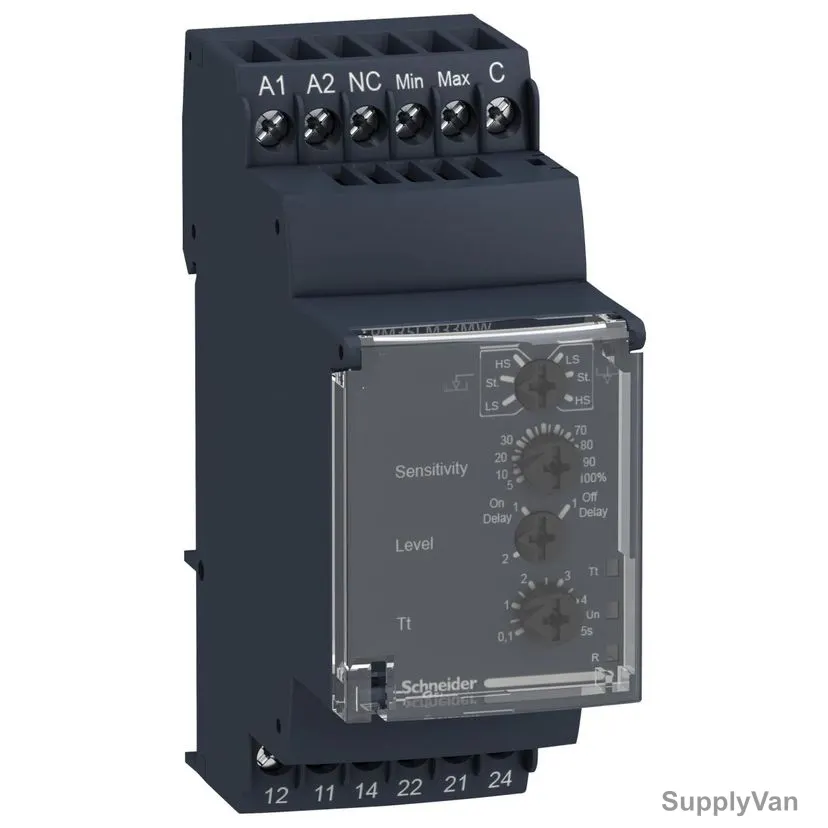

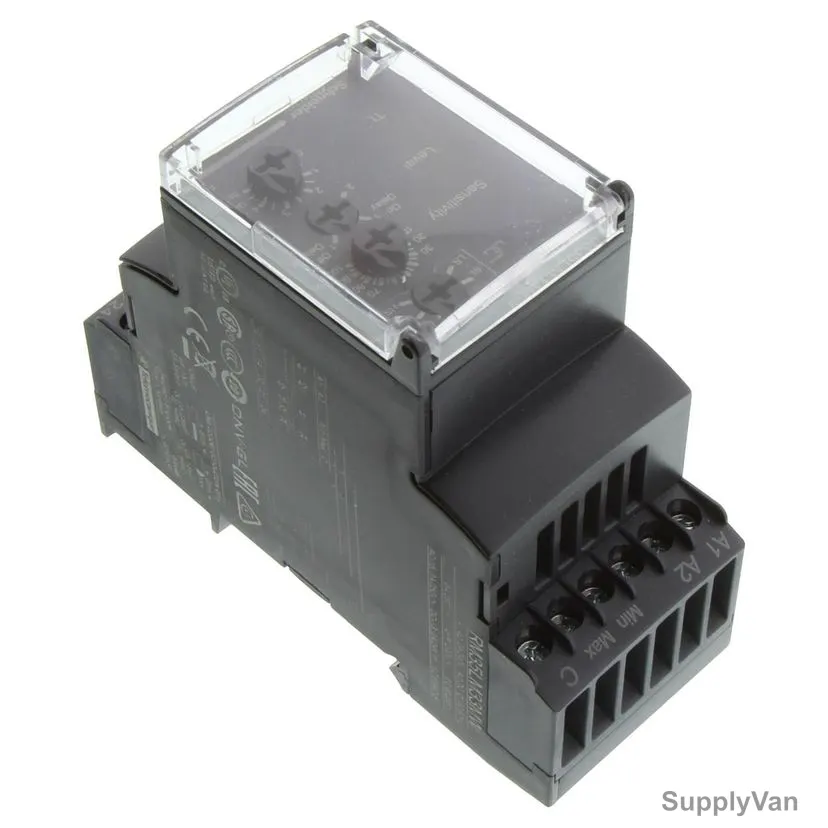

Schneider Electric Modular Liquid Level Control Relay, RM35LM33MW, Harmony, 5A, 24-240V
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 862436228841
- Minimum Purchase:
- 1 unit
- Item Name:
- Control Relay
- Model:
- RM35LM33MW
- Product Series:
- Harmony
- Manufacturer:
- Schneider Electric
- Color:
- Black
- Height (MilliMeter):
- 90mm
- Width (MilliMeter):
- 35mm
- Insulation Voltage:
- 250V
- Voltage:
- 24-240V
- Power:
- 1.5W
- Amps (A):
- 5A
- Torque (Nm):
- 0.6-1 Nm
- Frequency:
- 50/60 Hz
- Length (MilliMeter):
- 72mm
- Impedance:
- 250 Ohm - 1 Mohm
- Ingress Protection (IP Rating):
- IP20
- Mounting Type:
- Din-Rail
- Min. Delay Time:
- 0.1 sec
- Max. Delay Time:
- 5 sec
- Switch Capacity:
- 1250VA
- Cable Length:
- 100 Mtrs
- Brand Origin (not manufacture):
- France
- Standards:
- EN/IEC 60255-6
- Warranty (Subject to Conditions):
- 18 Months
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
- Simplified panel design due to 35mm width same as 3-pole circuit breaker
- Automatic detection of abnormal electrical values thus reducing your maintenance and downtime costs
- Provides automatic shutdown management and fault information for a quick fault identification and troubleshooting
- Transparent cover to protect settings from being tampered with reducing maintenance
- Multifunction controller for wide choice selected in hard-wired logic automated systems
- Reset Time: 1750 ms
- Electrical durability: 100000 cycles
- Mechanical durability: 30000000 cycles
Item Name: |
Control Relay |
Model: |
RM35LM33MW |
Product Series: |
Harmony |
Manufacturer: |
Schneider Electric |
Color: |
Black |
Height (MilliMeter): |
90mm |
Width (MilliMeter): |
35mm |
Insulation Voltage: |
250V |
Voltage: |
24-240V |
Power: |
1.5W |
Amps (A): |
5A |
Torque (Nm): |
0.6-1 Nm |
Frequency: |
50/60 Hz |
Length (MilliMeter): |
72mm |
Impedance: |
250 Ohm - 1 Mohm |
Ingress Protection (IP Rating): |
IP20 |
Mounting Type: |
Din-Rail |
Min. Delay Time: |
0.1 sec |
Max. Delay Time: |
5 sec |
Switch Capacity: |
1250VA |
Cable Length: |
100 Mtrs |
Brand Origin (not manufacture): |
France |
Standards: |
EN/IEC 60255-6 |
Warranty (Subject to Conditions): |
18 Months |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
