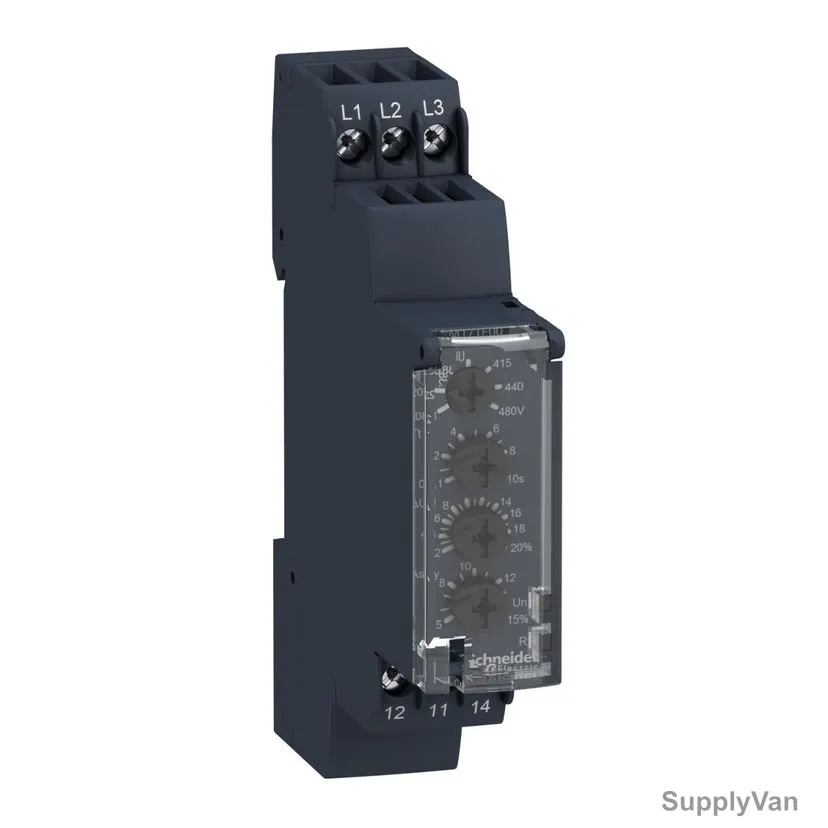

Schneider Electric Multifunction 3-Phase Supply Control Relay, RM17-TE00, 5A, 1 CO, 208-480V

(No reviews yet) Write a Review
Brand:
Schneider Electric
SKU:
734412513898
Minimum Purchase:
1 unit
Item Name:
3-Phase Supply Control Relay
Model:
RM17-TE00
Manufacturer:
Schneider Electric
Color:
Black
Width (MilliMeter):
17.5mm
Insulation Voltage:
400V
Voltage:
208-480V
Terminal Type:
Screw
Output Current:
5A
Housing Material:
Plastic
Number of Contacts:
1 CO
Operating Ambient Temperature (Degree Celsius):
-20 to 50 Deg,C
Frequency:
50-60Hz
Storage Temperature:
-40 to 70 Deg,C
Ingress Protection (IP Rating):
IP20, IP30
Min. Delay Time:
0.1 sec
Max. Delay Time:
10 sec
Relative Humidity:
95%
Response Time:
<200ms
Standards:
EN/IEC 60255-1
Certification:
10881,2937,759,18309
Warranty (Subject to Conditions):
18 Months
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED135.00

Description

This Harmony RM17-TE relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.
  • Switching Capacity: 1250VA
  • Measurement Range: 208-480VAC
  • Overvoltage Category: III conforming to IEC 60664-1
  • Insulation Resistance: >500 MOhm
  • Tightening Torque: 0.6-1 Nm
  • Mounting Support: 35mm symmetrical DIN rail conforming to EN/IEC 60715
  • Electrical Durability: 100000 cycles
  • Mechanical Durability: 30000000 cycles
Item Name:
3-Phase Supply Control Relay
Model:
RM17-TE00
Manufacturer:
Schneider Electric
Color:
Black
Width (MilliMeter):
17.5mm
Insulation Voltage:
400V
Voltage:
208-480V
Terminal Type:
Screw
Output Current:
5A
Housing Material:
Plastic
Number of Contacts:
1 CO
Operating Ambient Temperature (Degree Celsius):
-20 to 50 Deg,C
Frequency:
50-60Hz
Storage Temperature:
-40 to 70 Deg,C
Ingress Protection (IP Rating):
IP20, IP30
Min. Delay Time:
0.1 sec
Max. Delay Time:
10 sec
Relative Humidity:
95%
Response Time:
<200ms
Standards:
EN/IEC 60255-1
Certification:
10881,2937,759,18309
Warranty (Subject to Conditions):
18 Months
Delivery Time:
2-7 Days
Unit:
Piece
