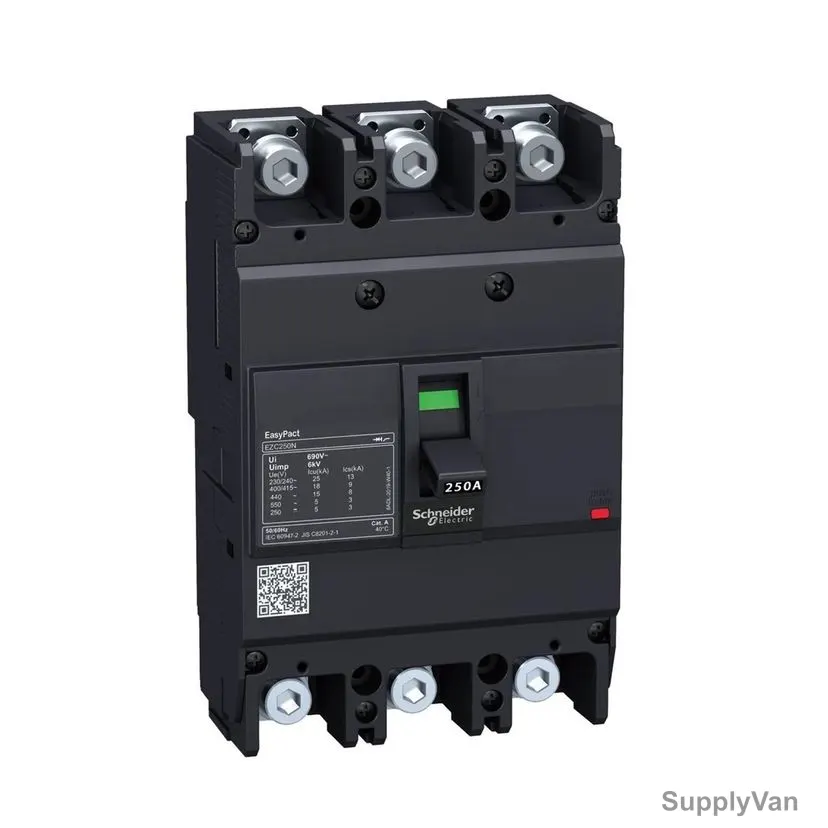

Schneider Electric Molded Case Circuit Breaker, EZC250N, EasyPact, 3P, IP20, 125A
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 394849538962
- Minimum Purchase:
- 1 unit
- Item Name:
- Molded Case Circuit Breaker
- Model:
- EZC250N
- Product Series:
- EasyPact
- Manufacturer:
- Schneider Electric
- Color:
- Black
- Manufacture Part Number:
- EZC250N3125
- Width (MilliMeter):
- 105mm
- Height (MilliMeter):
- 165mm
- Number of Poles:
- 3P
- Control Type:
- Toggle
- Insulation Voltage:
- 690VAC
- Frequency:
- 50/60 Hz
- Operational Voltage:
- 550VAC/250VDC
- Pitch:
- 35mm
- Depth:
- 60mm
- Mounting Type:
- Fixed Backplate
- Current:
- 125A
- Ingress Protection (IP Rating):
- IP20
- IK Rating:
- IK07
- Over Load Protection (Yes/No):
- Yes
- Storage Temperature:
- -35 to 85 Deg.C
- Brand Origin (not manufacture):
- France
- Standards:
- 3218,18609,16654
- Warranty (Subject to Conditions):
- 18 Months
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The EasyPact EZC250N is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 125A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version comes with a variety of optional functions and accessories. Easypact EZC250N is compliant with international standards (IEC 60947, UL 508) and marine certifications.
View AllClose
- Network Type: AC/DC
- Rated impulse withstand voltage: 6kV conforming to IEC 60947-2
- Utilisation Category: Category A
- Trip Unit Name: TM-D
- Mechanical Durability: 10000 cycles
- Electrical Durability: Category A: 5000 cycles 415VAC 50/60 Hz conforming to IEC 60947-2
Item Name: |
Molded Case Circuit Breaker |
Model: |
EZC250N |
Product Series: |
EasyPact |
Manufacturer: |
Schneider Electric |
Color: |
Black |
Manufacture Part Number: |
EZC250N3125 |
Width (MilliMeter): |
105mm |
Height (MilliMeter): |
165mm |
Number of Poles: |
3P |
Control Type: |
Toggle |
Insulation Voltage: |
690VAC |
Frequency: |
50/60 Hz |
Operational Voltage: |
550VAC/250VDC |
Pitch: |
35mm |
Depth: |
60mm |
Mounting Type: |
Fixed Backplate |
Current: |
125A |
Ingress Protection (IP Rating): |
IP20 |
IK Rating: |
IK07 |
Over Load Protection (Yes/No): |
Yes |
Storage Temperature: |
-35 to 85 Deg.C |
Brand Origin (not manufacture): |
France |
Standards: |
3218,18609,16654 |
Warranty (Subject to Conditions): |
18 Months |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
