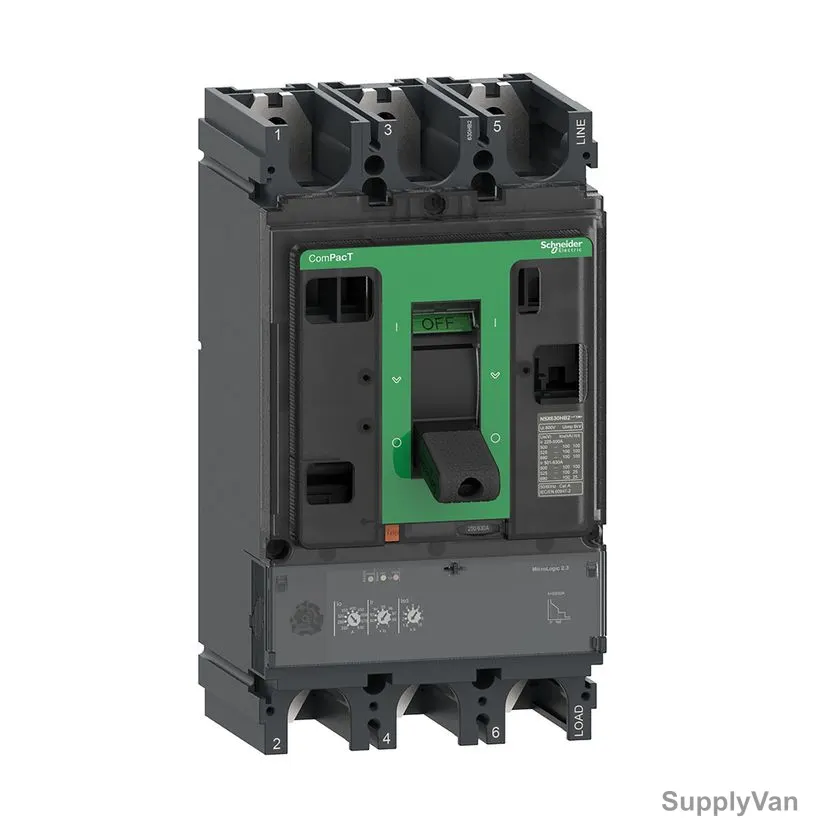

Schneider Electric Molded Case Circuit Breaker, NSX400F, ComPacT, 3P, IP40, 400A

(No reviews yet) Write a Review
Brand:
Schneider Electric
SKU:
241124877267
Minimum Purchase:
1 unit
Item Name:
Molded Case Circuit Breaker
Model:
NSX400F
Product Series:
ComPacT
Manufacturer:
Schneider Electric
Color:
Black
Ingress Protection (IP Rating):
IP40
Storage Temperature:
-50 to 85 Deg.C
Width (MilliMeter):
140mm
Height (MilliMeter):
255mm
Number of Poles:
3P
Control Type:
Toggle
Insulation Voltage:
800VAC
Frequency:
50/60 Hz
Operating Ambient Temperature (Degree Celsius):
-25 to 70 Deg.C
Operational Voltage:
690VAC
Pitch:
45mm
Depth:
110mm
Mounting Type:
Fixed Backplate
Current:
400A
IK Rating:
IK07
Over Load Protection (Yes/No):
Yes
Relative Humidity:
0-95%
Operating Altitude:
0-2000 Mtrs
Brand Origin (not manufacture):
France
Standards:
EN/IEC 60947
Certification:
13437,5043,17960
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED1,620.00

Available on Request

Description

This ComPacT NSX400F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with 400A rating. MicroLogic 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 3 poles version comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.
  • Network Type: AC
  • Utilisation Category: Category A
  • Performance Level: F 36 kA 415VAC
  • Trip Unit Name: Micrologic 2.3
  • Rated impulse withstand voltage: 8kV
  • Mechanical Durability: 15000 cycles
  • Power dissipation per pole: 19.2W
  • Long-time pick-up adjustment type Ir (thermal protection): Adjustable 9 settings
  • Long-time protection pick-up adjustment range: 160-400A
  • Thermal memory: 20 minutes before and after tripping
  • Number of slots for electrical auxiliaries: 6 Slots
  • Local signalling: Flashing LED (green) for ready to operate; LED 105% Ir (red) for overload; LED 90% Ir (orange) for overload
