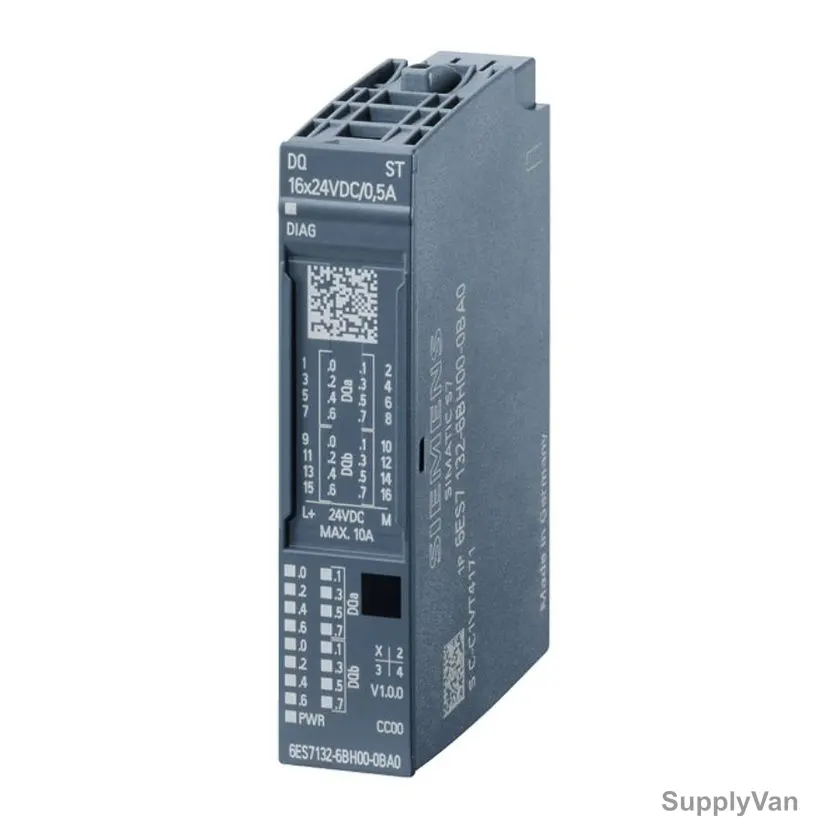

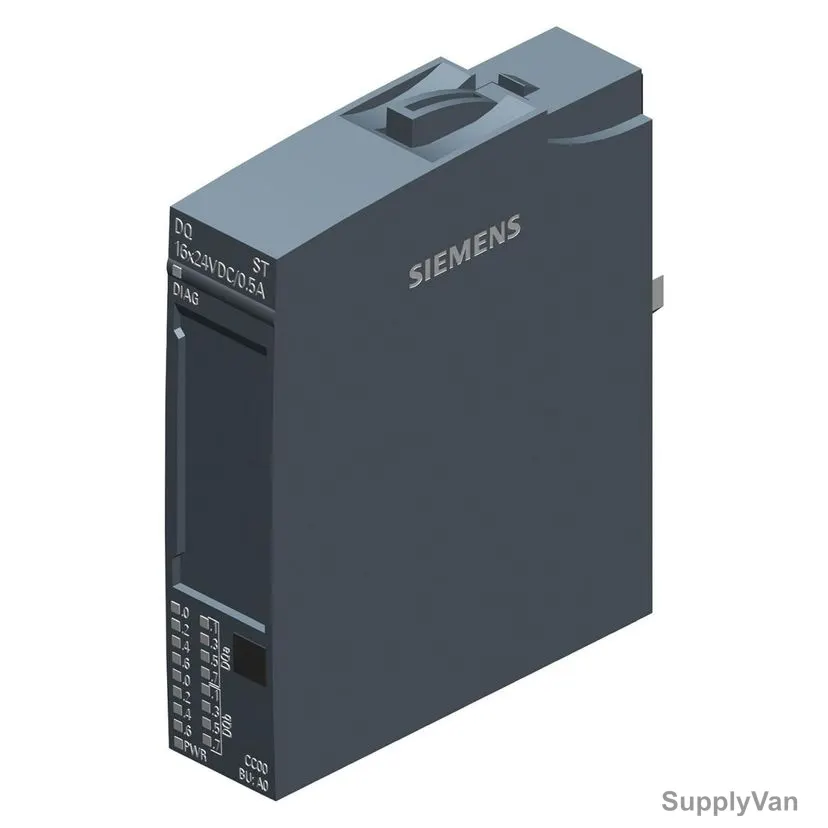

Siemens Digital Output Module, Simatic ET200SP, DQ 16x 24VDC/0.5A Standard
(No reviews yet)
Write a Review
- Brand:
- Siemens
- SKU:
- 736163715789
- Minimum Purchase:
- 1 unit
- Item Name:
- Digital Output Module
- Product Series:
- Simatic ET200SP
- Article Number:
- 6ES7132-6BH00-0BA0
- Manufacturer:
- Siemens
- Color:
- Grey
- Color Code:
- CC00
- Height (MilliMeter):
- 73mm
- Width (MilliMeter):
- 15mm
- Depth:
- 58mm
- Voltage:
- 24VDC
- Number of Channels:
- 16
- Power Consumption:
- 60mA
- Brand Origin (not manufacture):
- Germany
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Siemens Digital Output Module, Simatic ET200SP, DQ 16x 24VDC/0.5A Standard is an electronic module designed for industrial control applications. It has 16 digital output channels with a 24V DC power supply and a maximum switching current of 0.5A per channel. The module is suitable for controlling solenoid valves, actuators, and other industrial loads. The Simatic ET200SP is a modular distributed I/O system that allows for flexible and scalable automation solutions. It uses a push-in terminal technology for quick and easy wiring, and it is designed to operate in harsh industrial environments. The digital output module is compact in size and can be easily integrated into a control panel or mounted on a DIN rail.
View AllClose
- Base Unit Type: A0
- I&M data: Yes; I&M0 to I&M3
- Permissible Range: 19.2 to 28.8VDC
- Power Loss: 1W
- Type of Digital Output: Source output (PNP, current-sourcing)
- Switching Capacity - With resistive load: 0.5A, On lamp load: 5W
- Load Resistance: 48 to 12 Kohm
- Switching Frequency - with resistive load: 100 Hz, with inductive load: 2 Hz, on lamp load: 10 Hz
- Current per channel: 0.5A
- Current per module: 8A
- Isolation Tested With: 707VDC (type test)
- Operating Ambient Temperature - Horizontal: 0 to 60 Deg.C, Vertical: 0 to 50 Deg.C
Item Name: |
Digital Output Module |
Product Series: |
Simatic ET200SP |
Article Number: |
6ES7132-6BH00-0BA0 |
Manufacturer: |
Siemens |
Color: |
Grey |
Color Code: |
CC00 |
Height (MilliMeter): |
73mm |
Width (MilliMeter): |
15mm |
Depth: |
58mm |
Voltage: |
24VDC |
Number of Channels: |
16 |
Power Consumption: |
60mA |
Brand Origin (not manufacture): |
Germany |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
