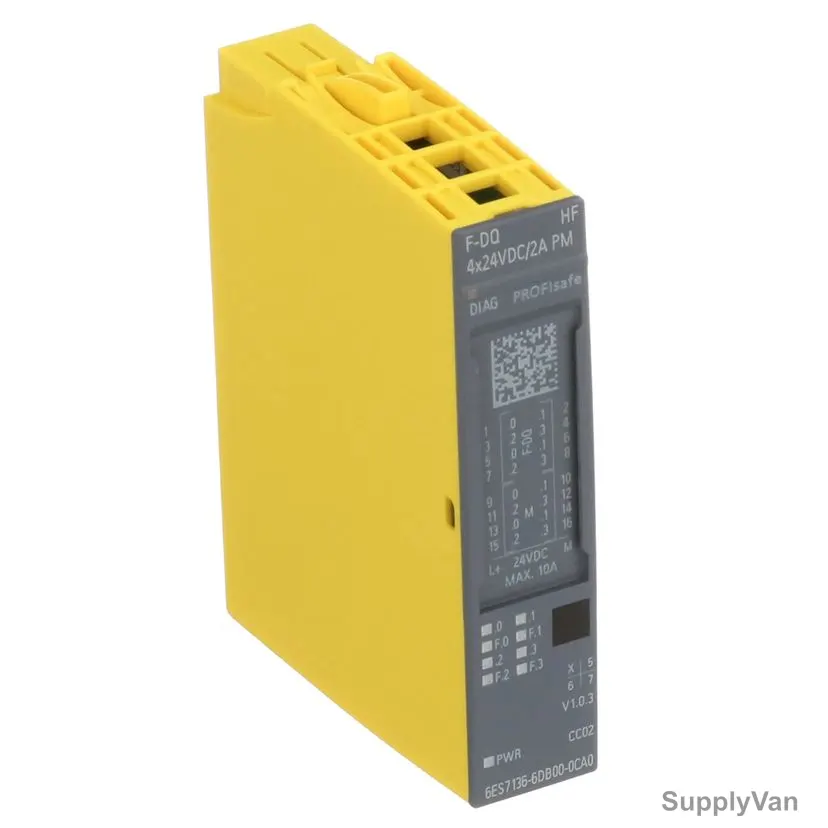

Siemens Electronics Module For ET200SP Modules, Simatic DP, F-DQ 4X24VDC/2A
(No reviews yet)
Write a Review
- Brand:
- Siemens
- SKU:
- 286391191783
- Minimum Purchase:
- 1 unit
- Item Name:
- Electronics Module
- Product Series:
- Simatic DP
- Article Number:
- 6ES7136-6DB00-0CA0
- Manufacturer:
- Siemens
- Color:
- Yellow and Grey
- Height (MilliMeter):
- 73mm
- Width (MilliMeter):
- 15mm
- Depth:
- 58mm
- Voltage:
- 24VDC
- Number of Channels:
- 4
- Power Consumption:
- 75mA
- For Use With:
- Simatic ET200SP Modules
- Brand Origin (not manufacture):
- Germany
- Delivery Time:
- 16 Weeks
- Unit:
- Piece
Description
The Siemens Electronics Module is designed for use with Simatic ET200SP modules and operates on the Simatic DP platform. It is a F-DQ 4X24VDC/2A module, which means it has four digital outputs that can each handle up to 2 amps at 24 volts DC. This module is typically used in industrial automation and control systems, and it provides reliable and precise control of various processes and equipment. The electronics module is compact, easy to install, and integrates seamlessly with other Siemens automation products. It is designed to operate in harsh environments and can withstand shock, vibration, and temperature extremes.
View AllClose
- Base Unit Type: A0
- I&M data: Yes; I&M0 to I&M3
- Permissible Range: 19.2 to 28.8VDC
- Power available from the backplane bus: 70mW
- Power Loss: 4W
- Type of Digital Output: Transistor
- Switching Capacity - With resistive load: 2A, On lamp load: 10W
- Load Resistance: 12 to 2000 Ohm
- Switching Frequency - with resistive load: 30 Hz, with inductive load: 0.1 Hz, on lamp load: 10 Hz
- Current per channel: 2A
- Current per module: 6A
- Isolation Tested With: 707VDC (type test)
- Performance level according to ISO 13849-1: Ple
- SIL acc. to IEC 61508: SIL 3
- Operating Ambient Temperature - Horizontal: 0 to 60 Deg.C, Vertical: 0 to 50 Deg.C
Item Name: |
Electronics Module |
Product Series: |
Simatic DP |
Article Number: |
6ES7136-6DB00-0CA0 |
Manufacturer: |
Siemens |
Color: |
Yellow and Grey |
Height (MilliMeter): |
73mm |
Width (MilliMeter): |
15mm |
Depth: |
58mm |
Voltage: |
24VDC |
Number of Channels: |
4 |
Power Consumption: |
75mA |
For Use With: |
Simatic ET200SP Modules |
Brand Origin (not manufacture): |
Germany |
Delivery Time: |
16 Weeks |
Unit: |
Piece |
