Spraytech Camlock Coupling
- Brand:
- Spraytech
- SKU:
- 564257418993
- Minimum Purchase:
- 1 unit
- Item Name:
- Camlock Coupling
- Product Series:
- ACC501, ACC502 & ACC503
- Manufacturer:
- Spraytech
- Brand Origin (not manufacture):
- India
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

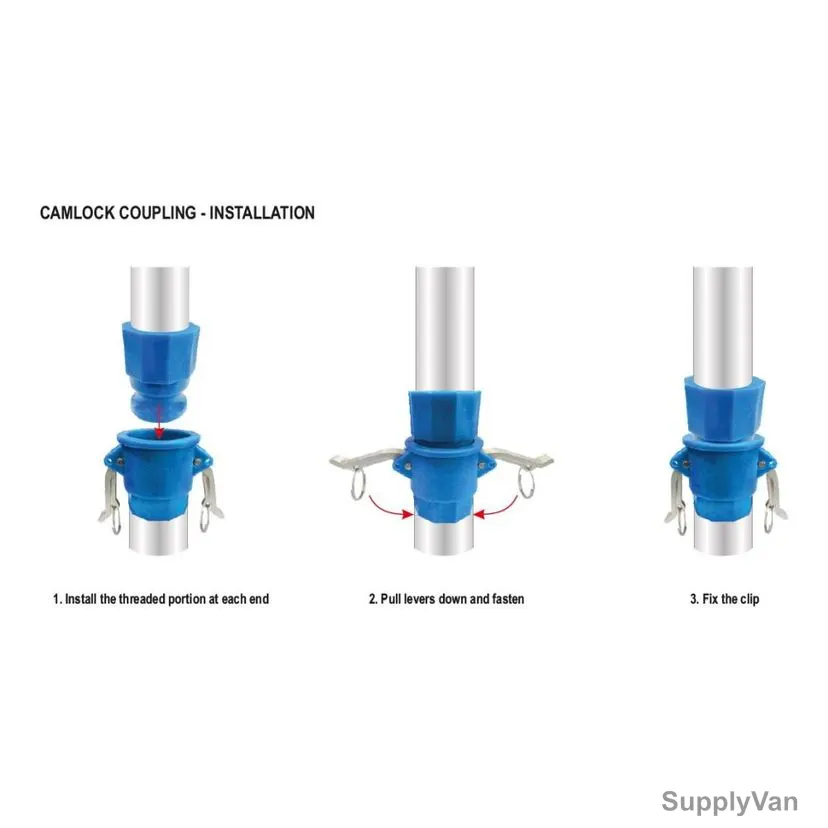

ACC501, ACC502 & ACC503 Camlock couplings are a very popular solution for quick assembly/disassembly also provides ease of operation.
Body: Polypropylene (20% - 25% glass filled)
Lever: SS 316
O-ring:
NBR (standard)
Viton (optional)
EPDM (optional)
View AllClose
- Thread size 3/4", 1", 1 1/4", 1 1/2"
- Thread specification BSP, NPT
- Typical applications Quick installation in piping, sanitary installation applications.
Body: Polypropylene (20% - 25% glass filled)
Lever: SS 316
O-ring:
NBR (standard)
Viton (optional)
EPDM (optional)
| MODEL NO | G (inch) BSP (F) | G1 (inch) BSP (F) | H (mm) | A (mm) | RATING (bar) | COLOUR | WEIGHT APPROX (grams) |
|---|---|---|---|---|---|---|---|
| ACC501.P2G.XE | 3/4" | 3/4" | 98 | 48 | 10 | BLACK | 207.0 |
| ACC501.P2G.XF | 1" | 1" | 98 | 48 | 8 | BLACK | 207.0 |
| ACC502.P2G.XF | 1" | 1" | 98 | 48 | 10 | YELLOW | 235.0 |
| ACC502.P2G.XG | 1 1/4" | 1 1/4" | 98 | 48 | 8 | YELLOW | 235.0 |
| ACC503.P2G.XG | 1 1/4" | 1 1/4" | 110 | 58 | 15 | BLUE | 267.0 |
| ACC503.P2G.XH | 1 1/2" | 1 1/2" | 110 | 58 | 12 | BLUE | 267.0 |
Item Name: |
Camlock Coupling |
Product Series: |
ACC501, ACC502 & ACC503 |
Manufacturer: |
Spraytech |
Brand Origin (not manufacture): |
India |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
