Spraytech SH Series Pipe Holders
- Brand:
- Spraytech
- SKU:
- 149562575916
- Minimum Purchase:
- 1 unit
- Item Name:
- Pipe Holder
- Product Series:
- SH
- Manufacturer:
- Spraytech
- Brand Origin (not manufacture):
- India
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

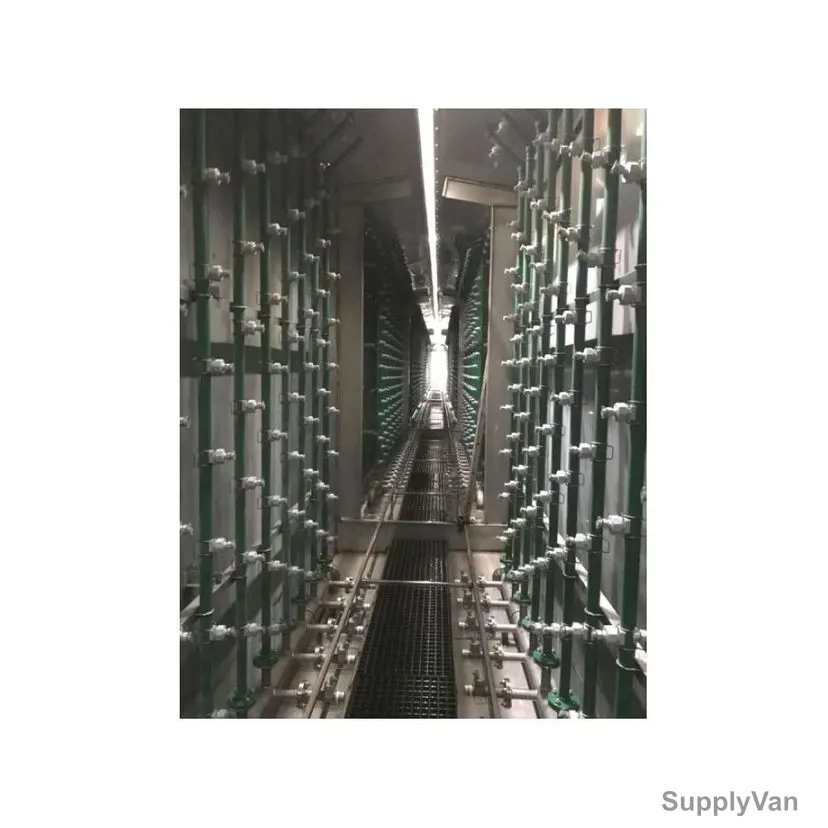

SH series pipe holders are user-friendly and convenient solution for fixing spray manifolds onto tunnels walls in surface treatment plants. They are easy to assemble, excellent fastening and low cost. The single clip type is suitable for plastic pipes and double clip is suitable for metallic pipes.
Typical application: Holding pipe, Piping assembly
Pipe size: 3/4", 1", 1 1/4", 1 1/2", 2"
Materials
Body: Polypropylene (20%-25% glass filled)
Clamp: SS 304/SS 316
Color: L. Blue
SH series holder body is designed to be fastened to the tunnel wall by means of one M10 bolt with 17 mm hexagonal head.
The drawing shows the distances of the pipe central axis from the wall for different pipe sizes assembled onto the pipe holder.
View AllClose
Typical application: Holding pipe, Piping assembly
Pipe size: 3/4", 1", 1 1/4", 1 1/2", 2"
Materials
Body: Polypropylene (20%-25% glass filled)
Clamp: SS 304/SS 316
Color: L. Blue
SH series holder body is designed to be fastened to the tunnel wall by means of one M10 bolt with 17 mm hexagonal head.
The drawing shows the distances of the pipe central axis from the wall for different pipe sizes assembled onto the pipe holder.
| CODE | PIPE SIZE (inch) | |
|---|---|---|
| Single Clamp | Double Clamp | |
| SH1E | SH2E | 3/4" |
| SH1F | SH2F | 1" |
| SH1G | SH2G | 1 1/4" |
| SH1H | SH2H | 1 1/2" |
| SH1K | SH2K | 2" |
Item Name: |
Pipe Holder |
Product Series: |
SH |
Manufacturer: |
Spraytech |
Brand Origin (not manufacture): |
India |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
