Spraytech EA Series Self-Rotating Spray Nozzles Stainless Steel and Plastic Versions
(No reviews yet)
Write a Review
- Brand:
- Spraytech
- SKU:
- 591186987963
- Minimum Purchase:
- 1 unit
- Item Name:
- Spray Nozzle
- Product Series:
- EA
- Manufacturer:
- Spraytech
- Brand Origin (not manufacture):
- India
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
EA series nozzles are very compact and designed for cleaning process in small bore or small size of containers. The rotary motion allows it to clean the vessels effectively. It is available in all grade of stainless steel material and also available in plastics like PTFE along with several spray angles.
End Connection : X – BSP, Y - BSPT, Z – NPT Available.
Female Connection On Request
View AllClose
Features : Compact design suitable for Cleaning small vessel/tanks

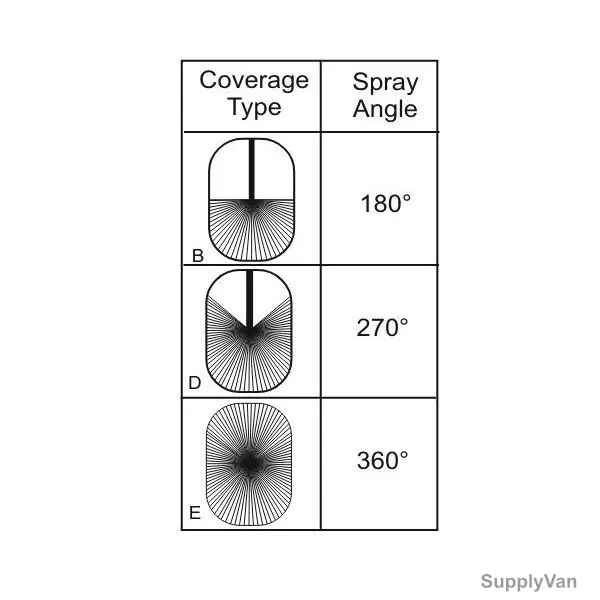

Spray Angle : 180 Degree, 270 Degree, 360 Degree
Cleaning Diameter : Upto 15 Meters
Type : Self-rotating
Material : SS304, SS316, PTFE
Spray Angle : 180 Degree, 270 Degree, 360 Degree
Cleaning Diameter : Upto 15 Meters
Type : Self-rotating
Material : SS304, SS316, PTFE
| MODEL NO. | SPRAY ANGLE | CONNECTION | FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE | CONNECTION | G/A DIMENSION. MM | G/A DIMENSION. MM | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRESSURE [BAR] | MALE | FEMALE | ||||||||||||||
| 1.5 | 2 | 3 | 5 | 7 | H | D | A/F | H | D | A/F | ||||||
| EA2.100 | B/D/E | 8.66 | 10.00 | 12.25 | 15.81 | 18.71 | 1/4" | 45 | 16 | 12.8 | 45 | 16 | 16 | |||
| EA2.120 | B/D/E | 10.39 | 12.00 | 14.70 | 18.97 | 22.45 | Weight (Metals) = XX gms. Approx | |||||||||
| EA2.150 | B/D/E | 12.99 | 15.00 | 18.37 | 23.72 | 28.06 | 3/8" | 45 | 22.2 | 12.8 | 51 | 22.2 | 22 | |||
| EA2.180 | B/D/E | 15.59 | 18.00 | 22.05 | 28.46 | 33.67 | Weight (Metals) = 30.0 gms. Approx | |||||||||
| EA2.220 | B/D/E | 19.05 | 22.00 | 26.94 | 34.79 | 41.16 | 1/2" | 79 | 30 | 22 | 79 | 30 | 24 | |||
| EA2.300 | B/D/E | 25.98 | 30.00 | 36.74 | 47.43 | 56.12 | Weight (Metals) = XX gms. Approx | |||||||||
| EA2.350 | B/D/E | 30.31 | 35.00 | 42.87 | 55.34 | 65.48 | ||||||||||
| EA2.400 | B/D/E | 34.64 | 40.00 | 48.99 | 63.25 | 74.83 | ||||||||||
End Connection : X – BSP, Y - BSPT, Z – NPT Available.
Female Connection On Request
