Description

EI Series Static Spray Ball is a newly designed stationary spray ball with multiple orifices. Its unique design helps to cover complete 360 degree with impact type jet sprays. It is available in many sizes and flow rates. Impact type spray helps to remove sticky stains. Also it can be used with saturated steam.

Features : Uni body design, Multiple jet spray with high flow

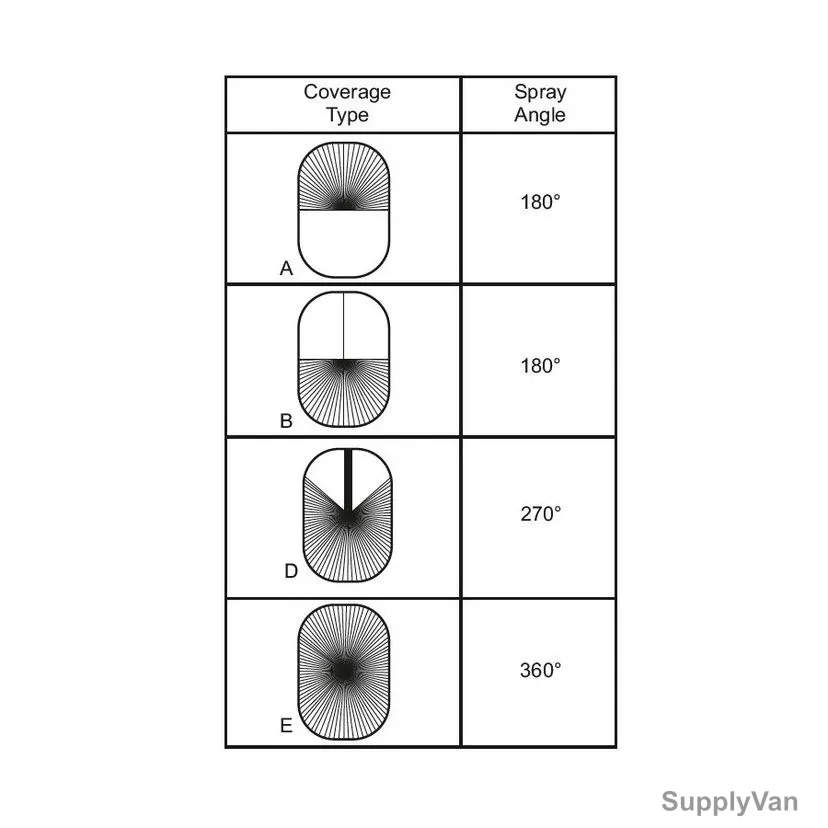

Spray Angle : 180 Degree, 270 Degree, 360 Degree
Cleaning Diameter : Upto 25 Meters
Type : Stationary
Material : SS304, SS316

Design Features
-Jet type cleaning
-Impact type cleaning
-Can be used for steam applications
-Available in Threaded, Pin type and Tri Clover type end connection
-Available in SS304, SS316, SS316L, Hastelloy C-276, PTFE

Cleaning Diameter up to 2.0 meters

End Connection :X – BSP, Y - BSPT, Z – NPT Available.

MODEL NO.	SPRAY	CONNECTION									FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE
MODEL NO.	SPRAY	1/8"	1/4"	3/8"	1/2"	3/4"	1"	1 1/4"	1 1/2"	2"	PRESSURE [BAR]
											1.5	2	3	5	7
EI1.650	A/B/D/E										5.63	6.50	7.96	10.28	28.06
EI1.800	A/B/D/E										6.93	8.00	9.80	12.65	14.97
EI2.100	A/B/D/E										8.66	10.00	12.25	15.81	18.71
EI2.125	A/B/D/E										10.39	12.50	14.70	18.97	22.45
EI2.140	A/B/D/E										12.12	14.00	17.15	22.14	26.19
EI2.160	A/B/D/E										13.86	16.00	19.60	25.30	29.93
EI2.180	A/B/D/E										15.59	18.00	22.05	28.46	33.67
EI2.220	A/B/D/E										19.05	22.00	26.94	34.79	41.16
EI2.280	A/B/D/E										24.25	28.00	34.29	44.27	52.38
EI2.320	A/B/D/E										27.71	32.00	39.19	50.60	59.87
EI2.400	A/B/D/E										34.64	40.00	48.99	63.25	74.83
EI2.520	A/B/D/E										45.03	52.00	63.69	82.22	97.28
EI2.600	A/B/D/E										51.96	60.00	73.48	94.87	112.25
EI2.700	A/B/D/E										60.62	70.00	85.73	110.68	130.96
EI2.800	A/B/D/E										69.28	80.00	97.98	126.49	149.67
EI2.900	A/B/D/E										77.94	90.00	110.23	142.30	168.37
EI3.100	A/B/D/E										86.60	100.0	122.47	158.11	187.08
EI3.120	A/B/D/E										103.92	120.00	149.74	189.74	224.50
EI3.140	A/B/D/E										121.24	140.00	171.46	221.36	261.92
EI3.160	A/B/D/E										138.56	160.00	195.96	252.98	299.33
EI3.190	A/B/D/E										164.54	190.00	232.70	300.42	355.46
EI3.225	A/B/D/E										194.86	225.00	275.57	355.76	420.94
EI3.250	A/B/D/E										216.51	250.00	306.19	395.28	487.71
EI3.275	A/B/D/E										238.46	275.00	336.19	434.81	514.48
EI3.300	A/B/D/E										259.81	300.00	367.42	474.34	561.25
EI3.325	A/B/D/E										281.46	325.00	398.04	513.87	608.02
EI3.350	A/B/D/E										303.11	350.00	428.66	553.40	654.79
EI3.375	A/B/D/E										324.76	375.00	459.28	592.92	701.56
EI3.400	A/B/D/E										346.41	400.00	489.90	632.45	748.33
EI3.425	A/B/D/E										368.06	425	520.52	671.98	795.1
EI3.450	A/B/D/E										389.71	450	551.14	711.51	841.87

CONNECTION	1/8"			1/4"			3/8"			1/2"			3/4"			1"			1 1/4"			1 1/2"			2"
DIMENSION	H	D	A/F	H	D	A/F	H	D	A/F	H	D	A/F	H	D	A/F	H	D	A/F	H	D	A/F	H	D	A/F	H	D	A/F

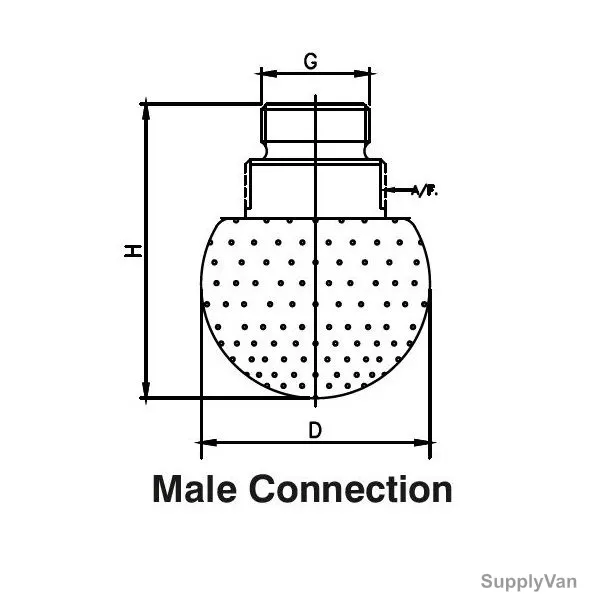

MALE	30	20	12	33.5	22	12	42	30	15	60	40	19	78	55	32	90	70	40	105	80	46	115	90	55	128	100	62

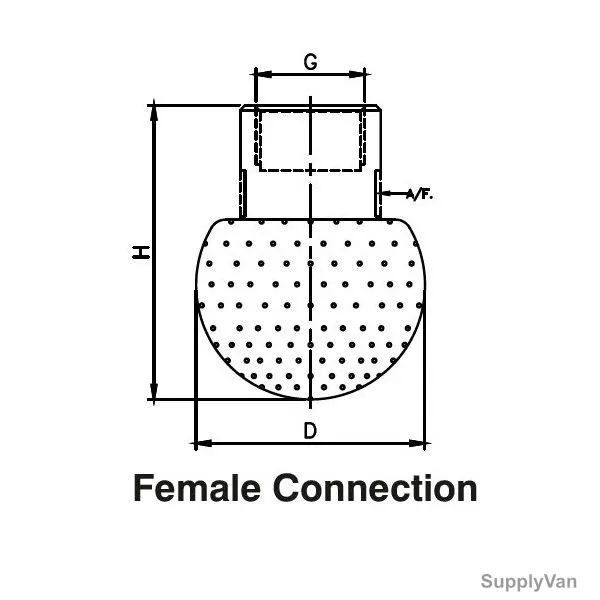

FEMALE	30	20	12	33.5	28	16	50	40	22	55	48	27	78	55	32	90	70	40	105	80	46	115	90	55	128	100	62
	Weight (Metals) = XX gms. Approx			Weight (Metals) = XX gms. Approx			Weight (Metals) = XX gms. Approx			Weight (Metals) = XX gms. Approx			Weight (Metals) = XX gms. Approx			Weight (Metals) = XX gms. Approx			Weight (Metals) = XX gms. Approx			Weight (Metals) = XX gms. Approx			Weight (Metals) = XX gms. Approx

CONNECTION	DN 8					DN 10					DN 15					DN 20					DN 25					DN 32					DN 40					DN 50
DIMENSION	H	D	A/F	C	A	H	D	A/F	C	A	H	D	A/F	C	A	H	D	A/F	C	A	H	D	A/F	C	A	H	D	A/F	C	A	H	D	A/F	C	A	H	D	A/F	C	A

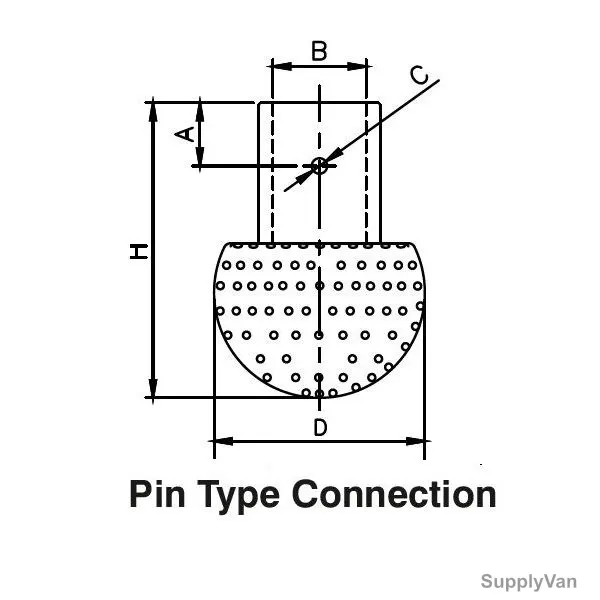

PIN TYPE	32.5	20	8.2	2.2	9	37.5	24	12.2	2.2	9	42	30	18.2	2.2	9	53	40	22.2	2.5	9	90	70	28.2	2.8	18	105	80	-	2.8	18	115	90	-	2.8	18	128	100	52.3	3.3	25
