Spraytech SAID Series Integrated Full Cone Spray Nozzles (Swivel Ball Type)
(No reviews yet)
Write a Review
- Brand:
- Spraytech
- SKU:
- 257225863142
- Minimum Purchase:
- 1 unit
- Item Name:
- Spray Nozzle
- Product Series:
- SAID
- Manufacturer:
- Spraytech
- Brand Origin (not manufacture):
- India
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

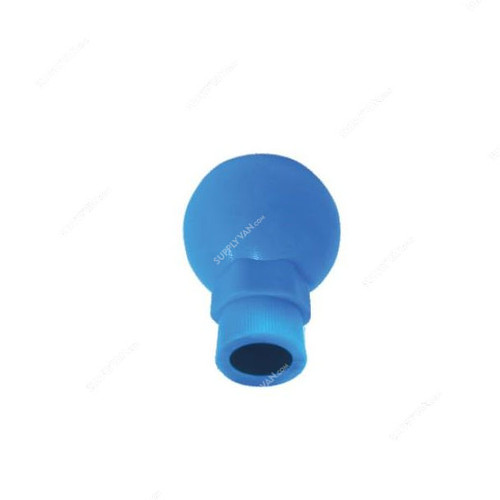

Integrated Full cone swivel ball spray nozzles are designed for diversified applications. They can be easily adjusted for spray pattern orientation and offer a quick-fit connection. Also available in various flow rates and spray angles with colour coding. Suitable for SA series swivel clip on clamp.
Spray pattern: Full Cone
Typical application: Pre-treatment process, Semi conductor industry
Material: Glass filled PP
View AllClose
Spray pattern: Full Cone
Typical application: Pre-treatment process, Semi conductor industry
Material: Glass filled PP
| MODEL NO | PRESSURE (BAR) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 45° | 60° | 90° | 120° | 0.5 | 1 | 2 | 3 | 4 | COLOR |
| SAID4501 | SAID6001 | SAID9001 | SAID1201 | 0.50 | 0.71 | 1.00 | 1.22 | 1.41 | White |
| SAID4502 | SAID6002 | SAID9002 | SAID1202 | 1.00 | 1.41 | 2.00 | 2.45 | 2.83 | Grey |
| SAID4504 | SAID6004 | SAID9004 | SAID1204 | 2.00 | 2.83 | 4.00 | 4.90 | 5.66 | Beige |
| SAID4506 | SAID6006 | SAID9006 | SAID1206 | 3.25 | 4.60 | 6.50 | 7.96 | 9.19 | L. Blue |
| SAID4508 | SAID6008 | SAID9008 | SAID1208 | 4.00 | 5.66 | 8.00 | 9.80 | 11.31 | Red |
| SAID4510 | SAID6010 | SAID9010 | SAID1210 | 5.00 | 7.07 | 10.00 | 12.25 | 14.14 | Orange |
| SAID4512 | SAID6012 | SAID9012 | SAID1212 | 6.25 | 8.84 | 12.50 | 15.31 | 17.68 | Green |
| SAID4516 | SAID6016 | SAID9016 | SAID1216 | 8.00 | 11.31 | 16.00 | 19.60 | 22.63 | Yellow |
| SAID4520 | SAID6020 | SAID9020 | SAID1220 | 10.00 | 14.14 | 20.00 | 24.49 | 28.28 | D. Blue |
