Testo Building Diagnosis Kit, 872-605i-Kit, -15 to +50 Deg.C, 2 Pcs/Kit

(No reviews yet) Write a Review
Brand:
Testo
SKU:
873134781381
Minimum Purchase:
1 unit
Item Name:
Building Diagnosis Kit
Model:
872-605i-Kit
Article Number:
0560-8724
Manufacturer:
Testo
Material:
ABS and Polycarbonate
Color:
Black
Interface Type:
USB 2.0 Micro B
Display Size:
8.9cm
Ingress Protection (IP Rating):
IP54
Min Focus Distance:
<0.5 Mtr
Refresh Rate:
9 Hz
Display Type:
TFT, QVGA
Display Resolution:
320 x 240 pixels
Display Color:
10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)
Spectral Range:
7.5 to 14 µm
Image Format:
.bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls
Memory Capacity:
2.8 GB
Thermal Sensitivity:
60 mK
Field of View:
42 x 30 degree
Digital Zoom:
2x, 4x
Battery Type:
Lithium Ion
Battery Life:
4 hrs
Accuracy:
+/-2 Deg.C, +/-2% of mv
Emissivity:
0.01 to 1
Storage Temperature:
-30 to +60 Deg.C
Operating Temperature:
-15 to +50 Deg.C
Lens:
42 x 30 degree
Humidity:
20 to 80% RH non-condensing
Dimensions:
219 x 96 x 95mm
Measuring Range:
-30 to +650 Deg.C
System Requirements:
Windows 10, Windows 8, Windows 7
Brand Origin (not manufacture):
Germany
Delivery Time:
2-7 Days
Unit:
Kit
See Full Product Specs
  • Testo Building Diagnosis Kit, 872-605i-Kit, -15 to +50 Deg.C, 2 Pcs/Kit
  • Testo Building Diagnosis Kit, 872-605i-Kit, -15 to +50 Deg.C, 2 Pcs/Kit
  • Testo Building Diagnosis Kit, 872-605i-Kit, -15 to +50 Deg.C, 2 Pcs/Kit
AED16,580.00

Description

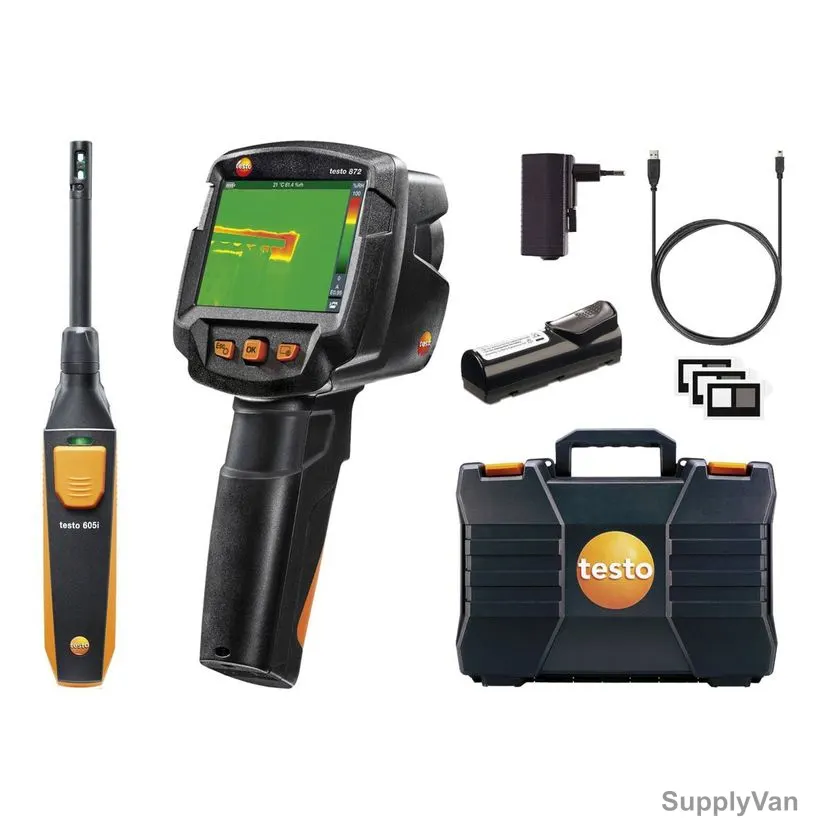

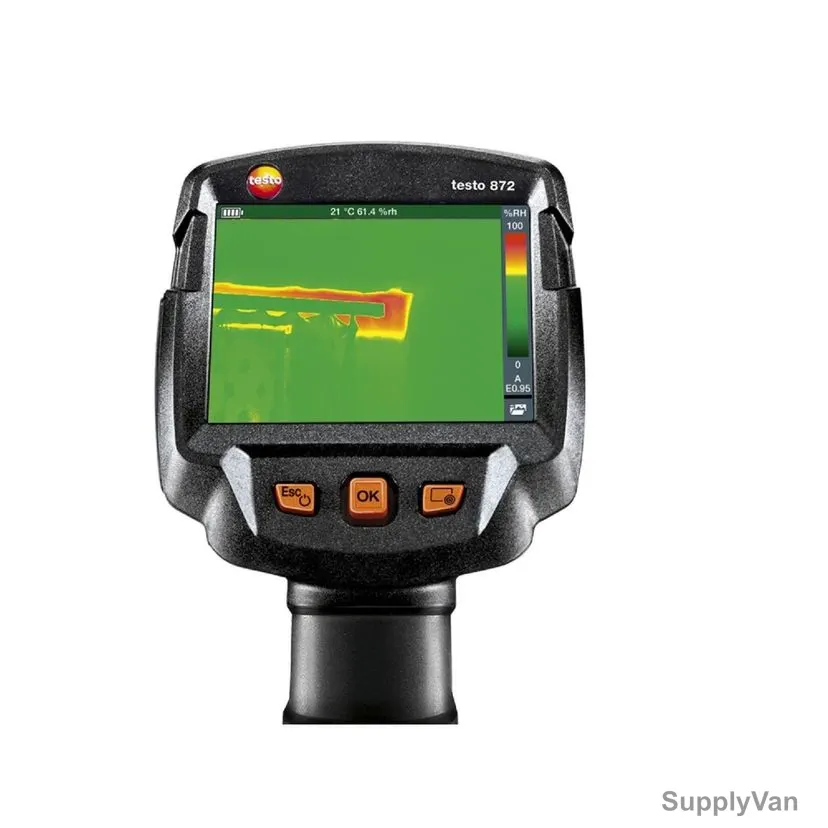

Use the smart Testo 872 building inspection kit to detect mould-risk areas in buildings quickly and easily. The Testo 605i thermohygrometer included in the kit transmits the room parameters via Bluetooth to the Testo 872 thermal imager. Mould-risk areas are shown in amber or red on the camera display (according to the traffic light principle). The thermal imager impresses with a thermal sensitivity of 0.06 °C and its ease of use, in addition to its professional measuring cable with maximum image quality. The equipment can be transported safely and conveniently in the robust case.
  • Infrared resolution of 320 x 240 pixels = 76,800 temperature measuring points, the infrared resolution is extended to 640 x 480 pixels via integrated SuperResolution Technology
  • Detecting temperature differences from 0.06 Deg.C
  • 42 Deg. fixed-focus lens for a wide field of view and an ideal overview of the temperature distribution. The fixed focus means there is no longer any need for manual focusing
  • The Testo Thermography App enables you to write reports on site, save them online and send them by e-mail, as well as allowing you to use mobile terminal devices as a second display or for remote control
  • Wireless transmission (via Bluetooth) of external measurement parameters, such as ambient temperature and relative humidity, from the Testo 605i thermohygrometer to the Testo 872 thermal imager
  • Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
  • The Testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, e.g. of the thermal insulation behaviour of buildings
  • The Testo ?-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature
  • The IFOV warner means the distance from the measurement object/measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors, because the camera shows you exactly what you can measure
Item Name:
Building Diagnosis Kit
Model:
872-605i-Kit
Article Number:
0560-8724
Manufacturer:
Testo
Material:
ABS and Polycarbonate
Color:
Black
Interface Type:
USB 2.0 Micro B
Display Size:
8.9cm
Ingress Protection (IP Rating):
IP54
Min Focus Distance:
<0.5 Mtr
Refresh Rate:
9 Hz
Display Type:
TFT, QVGA
Display Resolution:
320 x 240 pixels
Display Color:
10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)
Spectral Range:
7.5 to 14 µm
Image Format:
.bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls
Memory Capacity:
2.8 GB
Thermal Sensitivity:
60 mK
Field of View:
42 x 30 degree
Digital Zoom:
2x, 4x
Battery Type:
Lithium Ion
Battery Life:
4 hrs
Accuracy:
+/-2 Deg.C, +/-2% of mv
Emissivity:
0.01 to 1
Storage Temperature:
-30 to +60 Deg.C
Operating Temperature:
-15 to +50 Deg.C
Lens:
42 x 30 degree
Humidity:
20 to 80% RH non-condensing
Dimensions:
219 x 96 x 95mm
Measuring Range:
-30 to +650 Deg.C
System Requirements:
Windows 10, Windows 8, Windows 7
Brand Origin (not manufacture):
Germany
Delivery Time:
2-7 Days
Unit:
Kit
