Testo Thermal Imager, 872, 320 x 240 pixels, -30 to +650 Deg.C

(No reviews yet) Write a Review
Brand:
Testo
SKU:
364623115341
Minimum Purchase:
1 unit
Item Name:
Thermal Imager
Article Number:
0560-8721
Manufacturer:
Testo
Material:
ABS and Polycarbonate
Color:
Black
Interface Type:
USB 2.0 Micro B
Display Size:
8.9cm
Ingress Protection (IP Rating):
IP54
Min Focus Distance:
<0.5 Mtr
Refresh Rate:
9 Hz
Display Type:
TFT, QVGA
Display Resolution:
320 x 240 pixels
Display Color:
10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)
Spectral Range:
7.5 to 14 µm
Image Format:
.bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls
Memory Capacity:
2.8 GB
Thermal Sensitivity:
60 mK
Field of View:
42 x 30 degree
Digital Zoom:
2x, 4x
Battery Type:
Lithium Ion
Battery Life:
4 hrs
Accuracy:
+/-2 Deg.C, +/-2% of mv
Emissivity:
0.01 to 1
Storage Temperature:
-30 to +60 Deg.C
Operating Temperature:
-15 to +50 Deg.C
Lens:
42 x 30 degree
Humidity:
20 to 80% RH non-condensing
Dimensions:
219 x 96 x 95mm
Measuring Range:
-30 to +650 Deg.C
System Requirements:
Windows 10, Windows 8, Windows 7
Brand Origin (not manufacture):
Germany
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Testo Thermal Imager, 872, 320 x 240 pixels, -30 to +650 Deg.C
  • Testo Thermal Imager, 872, 320 x 240 pixels, -30 to +650 Deg.C
  • Testo Thermal Imager, 872, 320 x 240 pixels, -30 to +650 Deg.C
  • Testo Thermal Imager, 872, 320 x 240 pixels, -30 to +650 Deg.C
  • Testo Thermal Imager, 872, 320 x 240 pixels, -30 to +650 Deg.C
AED16,580.00

Description

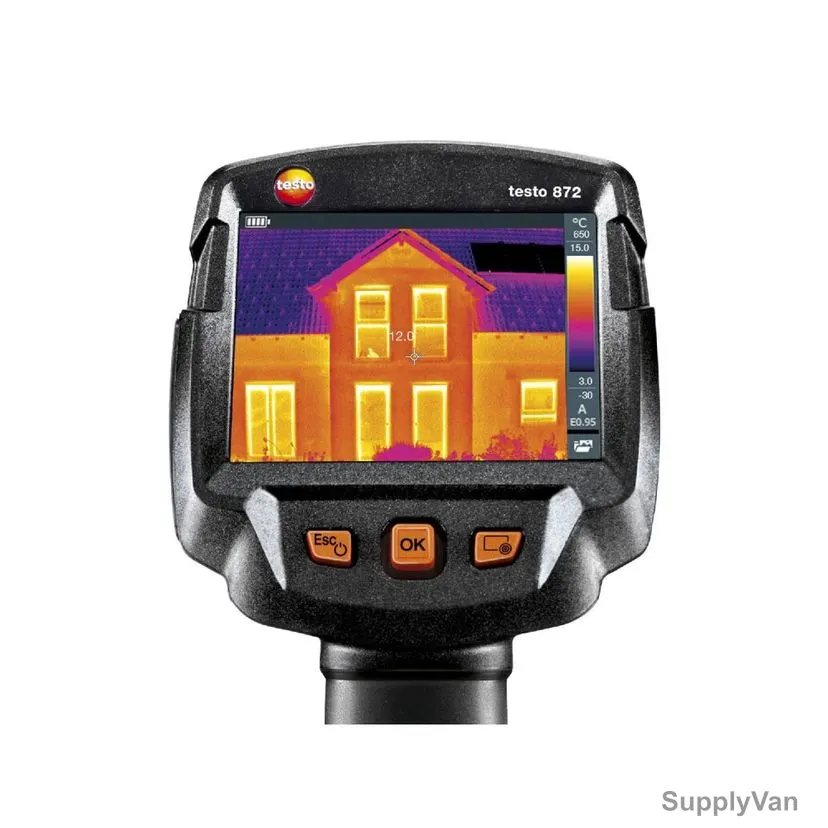

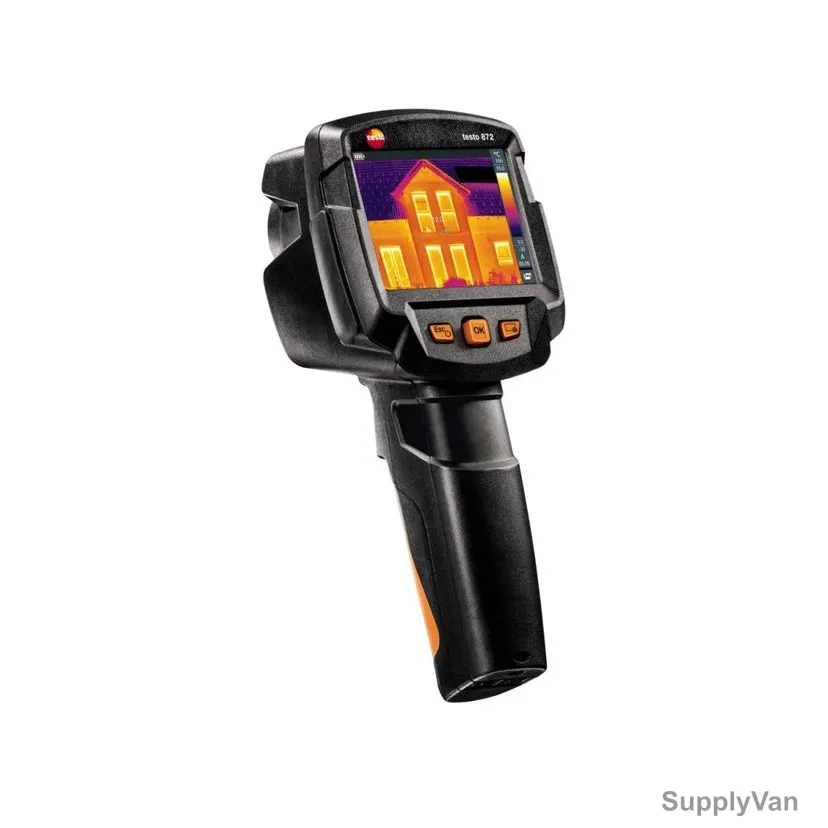

The Testo 872 thermal imager is ideally suited for professional industrial and building thermography - at the same time it ensures your work is both quick and easy. It is versatile to use, for example in industrial and mechanical maintenance or for detecting structural defects. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, Testo ?-Assist and Testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (?) and reflected temperature (RTC) for building thermography, but also of thermal image scale. Detect locations at risk of developing mould, pinpoint thermal bridges, discover structural defects or identify overheated connections. The Testo 872 thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. Quick, simple and reliable for maintenance and detection of defects.
  • Highest image quality thanks to high resolution: 76,800 temperature measuring points for precise thermography. Infrared resolution of 320 x 240 pixels – extendible to 640 x 480 pixels via integrated SuperResolution Technology
  • Detecting temperature differences from as little as 0.06°C
  • Testo Thermography App to use mobile terminal devices as a second display and for remote control or to write and send reports, along with saving them online
  • Wireless communication thanks to Bluetooth – this means you can also wirelessly integrate the readings of the compatible Testo 770-3 clamp meter and Testo 605i thermohygrometer
  • Built-in digital camera and laser marker generate a real image in parallel to the thermal image
  • Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
  • The Testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
  • The Testo ?-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature
  • The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
  • Pro software for image evaluation on the PC
  • You can choose to save thermal images as JPEGs
  • Video Streaming: wireless LAN with Testo Thermography App
  • SuperResolution (Pixel): 640 x 480 pixels
  • SuperResolution (IFOV): 1.3 mrad
  • EU-/EG-guidelines: EMC 2014/30/EU and RED 2014/53/EU
