Testo Four Thermocouple Temperature Data Logger, 176-T4, 4-Channels

(No reviews yet) Write a Review
Brand:
Testo
SKU:
983982213326
Minimum Purchase:
1 unit
Item Name:
Temperature Data Logger
Model:
176-T4
Manufacturer:
Testo
Material:
Plastic
Color:
Black
Operating Temperature:
-20 to +70 Deg.C
Storage Temperature:
-40 to +85 Deg.C
Dimensions:
103 x 63 x 33mm
Battery Type:
Lithium Ion
Battery Life:
8 Years
Ingress Protection (IP Rating):
IP65
Interface Type:
Mini USB, SD Card Slot
Number of Channels:
4
Brand Origin (not manufacture):
Germany
Standards:
16480,16483
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Testo Four Thermocouple Temperature Data Logger, 176-T4, 4-Channels
  • Testo Four Thermocouple Temperature Data Logger, 176-T4, 4-Channels
  • Testo Four Thermocouple Temperature Data Logger, 176-T4, 4-Channels
  • Testo Four Thermocouple Temperature Data Logger, 176-T4, 4-Channels
AED2,297.00

Description

The Testo 176 T4 data logger can measure the temperature of four different measurement points simultaneously. It also has a super size memory for up to 2 Million readings, This gives you the freedom to read out the logger data at longer intervals, even when measuring cycles are shorter. an exceptionally wide measurement range and is compatible with a number of different thermocouple elements making it ideal for professional use in a variety of different fields. The logger’s display provides you with a wide range of valuable information including current measurement values, threshold values, points where these thresholds have been exceeded, min/max values as well as the remaining battery power. And because all these values can be read off directly from the display, there is no need for you to boot up your PC. In addition to this the logger also has a large memory and an exceptionally long battery life of up to 8 years. This gives you the freedom to read/ analyse data from the data logger. The Testo 176 T4 data logger is IP 65 protected and can therefore also be used in dusty and dirty work environments. The standard AA batteries can be replaced by the user.

Specifications

Temperature TC Type K (NiCr-Ni)

  • Measuring Range: -200 to +1000 Deg.C
  • Accuracy: +/-1% of mv (-200 to -100.1 Deg.C) +/-1 Digit, +/-0.3 Deg.C (-100 to +70 Deg.C) +/-1 Digit, +/-0.5% of mv (+70.1 to +1000 Deg.C) +/-1 Digit
  • Resolution: 0.1 Deg.C

    • Temperature TC Type T (Cu-CuNi)

  • Measuring Range: -200 to +400 Deg.C
  • Accuracy: +/-1% of mv (-200 to -100.1 Deg.C) +/-1 Digit, +/-0.3 Deg.C (-100 to +70 Deg.C) +/-1 Digit, +/-0.5% of mv (+70.1 to +400 Deg.C) +/-1 Digit
  • Resolution: 0.1 Deg.C

    • Temperature TC Type J (Fe-CuNi)

  • Measuring Range: -100 to +750 Deg.C
  • Accuracy: +/-0.3 Deg.C (-100 to +70 Deg.C) +/-1 Digit, +/-0.5% of mv (+70.1 to +750 Deg.C) +/-1 Digit
  • Resolution: 0.1 Deg.C

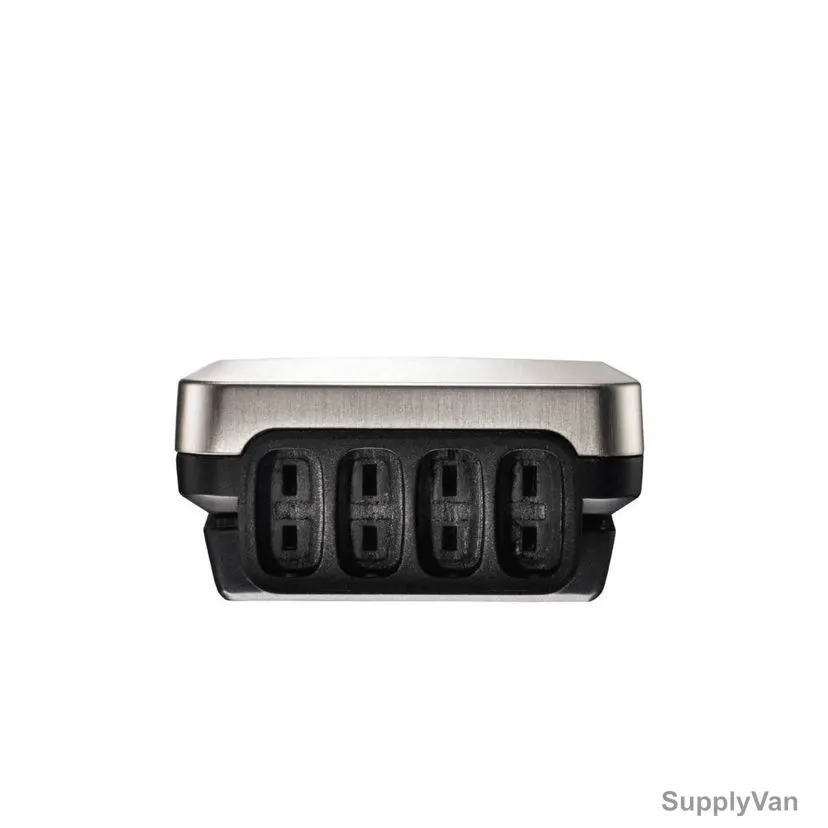

    • 4 Channel measurements (4 Thermocouple probes) for external temperature monitoring
    • Ability to measure Extreme High/Low temperatures
    • Large memory, 2 Million Readings
    • Data transfer possible using the USB port or SD card (Optional)
    • Connectable Probes: 4 x Thermocouple (type T, K and J)
    • Measuring Rate: 1 sec 24 hrs., 2 sec 24 hrs. (online measurement)
    • Memory: 2,000,000 Measuring values

    Items Included:
    1x Testo 176-T4 Data Logger, 1x Wall Bracket, 1x Lock, 1x Battery, 1x Calibration Protocol
    Item Name:
    Temperature Data Logger
    Model:
    176-T4
    Manufacturer:
    Testo
    Material:
    Plastic
    Color:
    Black
    Operating Temperature:
    -20 to +70 Deg.C
    Storage Temperature:
    -40 to +85 Deg.C
    Dimensions:
    103 x 63 x 33mm
    Battery Type:
    Lithium Ion
    Battery Life:
    8 Years
    Ingress Protection (IP Rating):
    IP65
    Interface Type:
    Mini USB, SD Card Slot
    Number of Channels:
    4
    Brand Origin (not manufacture):
    Germany
    Standards:
    16480,16483
    Delivery Time:
    2-7 Days
    Unit:
    Piece
