Testo Temperature Data Logger, 176-T3, 4-Channels

(No reviews yet) Write a Review
Brand
SKU:
151811612578
Minimum Purchase:
1 unit
Item Name:
Temperature Data Logger
Model:
176-T3
Manufacturer:
Testo
Material:
Plastic
Color:
Silver
Operating Temperature:
-20 to +70 Deg.C
Storage Temperature:
-40 to +85 Deg.C
Dimensions:
103 x 63 x 33mm
Battery Type:
Lithium Ion
Battery Life:
8 Years
Ingress Protection (IP Rating):
IP65
Interface Type:
Mini USB, SD Card Slot
Number of Channels:
4
Brand Origin (not manufacture):
Germany
Standards:
16480,16483
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED2,307.00 (Incl.VAT)
Testo Temperature Data Logger, 176-T3, 4-Channels

Testo Temperature Data Logger, 176-T3, 4-Channels

SKU: 151811612578

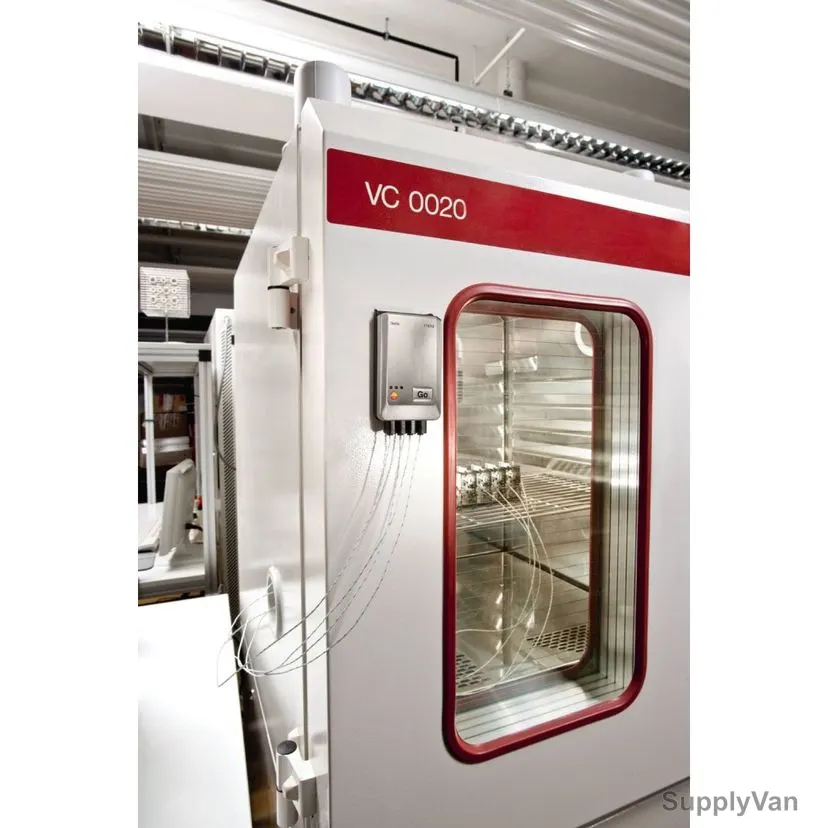

The Testo 176 T3 temperature data logger has a metal housing, so it is well-equipped for industrial applications. The housing of the data logger means that it is extremely robust and, in conformity with protection class IP 65, also protected against dust ingress and water jets. The temperature data logger can therefore be used in polluted and dust-laden environments. When carrying out cleaning at the measuring location, you do not need to remove the logger. When using the data logger, you can rely on a high level of data security. Measurement data that you have saved will not be lost, even if the battery is spent and being replaced which is something you can carry out yourself. The advantage of thermocouple probes is that they react very quickly and cover a large measuring range. For example, you can record particularly low temperatures (as low as -195 Deg.C) using a temperature probe TC Type K depending on the model selected – or you can even carry out high temperature measurements (up to +1,000 Deg.C). This enables you to both take measurements in super freezers and also monitor high-temperature industrial processes.

Specifications

Temperature TC Type K (NiCr-Ni)

  • Measuring Range: -200 to +1000 Deg.C
  • Accuracy: +/-1% of mv (-200 to -100.1 Deg.C) +/-1 Digit, +/-0.3 Deg.C (-100 to +70 Deg.C) +/-1 Digit, +/-0.5% of mv (+70.1 to +1000 Deg.C) +/-1 Digit
  • Resolution: 0.1 Deg.C
  • Temperature TC Type T (Cu-CuNi)

  • Measuring Range: -200 to +400 Deg.C
  • Accuracy: +/-1% of mv (-200 to -100.1 Deg.C) +/-1 Digit, +/-0.3 Deg.C (-100 to +70 Deg.C) +/-1 Digit, +/-0.5% of mv (+70.1 to +400 Deg.C) +/-1 Digit
  • Resolution: 0.1 Deg.C
  • Temperature TC Type J (Fe-CuNi)

  • Measuring Range: -100 to +750 Deg.C
  • Accuracy: +/-0.3 Deg.C (-100 to +70 Deg.C) +/-1 Digit, +/-0.5% of mv (+70.1 to +750 Deg.C) +/-1 Digit
  • Resolution: 0.1 Deg.C

    • Large memory for 2 million measurement values robust metal housing (without display)
    • Up to 8 years' battery life (standard battery (AA) exchangeable by the user)
    • Industrial standard thanks to robust metal housing and protection class IP 65
    • Three software versions are available for data analysis on the PC, basic software is free to download
    • Connectable Probes: 4 x Thermocouple (type T, K and J)
    • Measuring Rate: 1 sec 24 hrs., 2 sec 24 hrs. (online measurement)
    • Memory: 2,000,000 Measuring values

    Items Included:
    1x Testo 176-T3 Data Logger, 1x Wall Bracket, 1x Lock, 1x Battery, 1x Calibration Protocol
