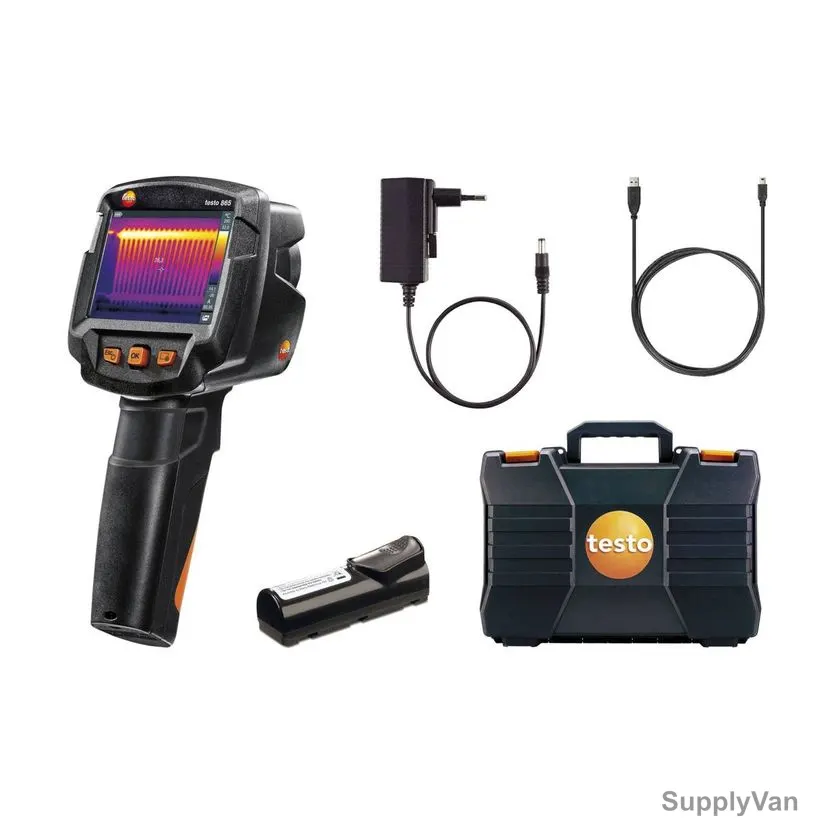

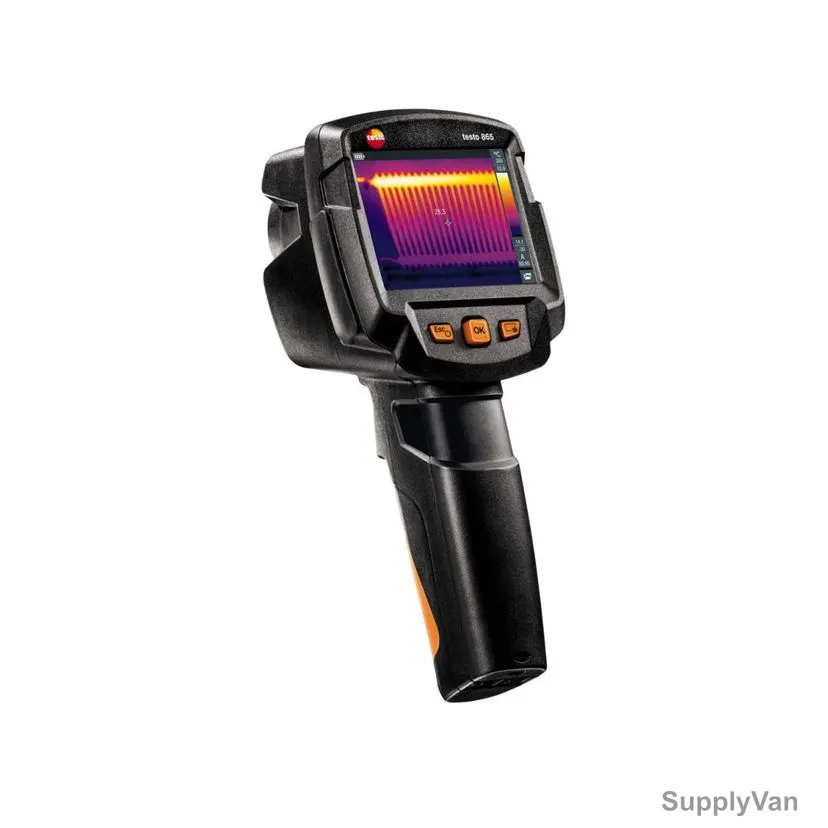

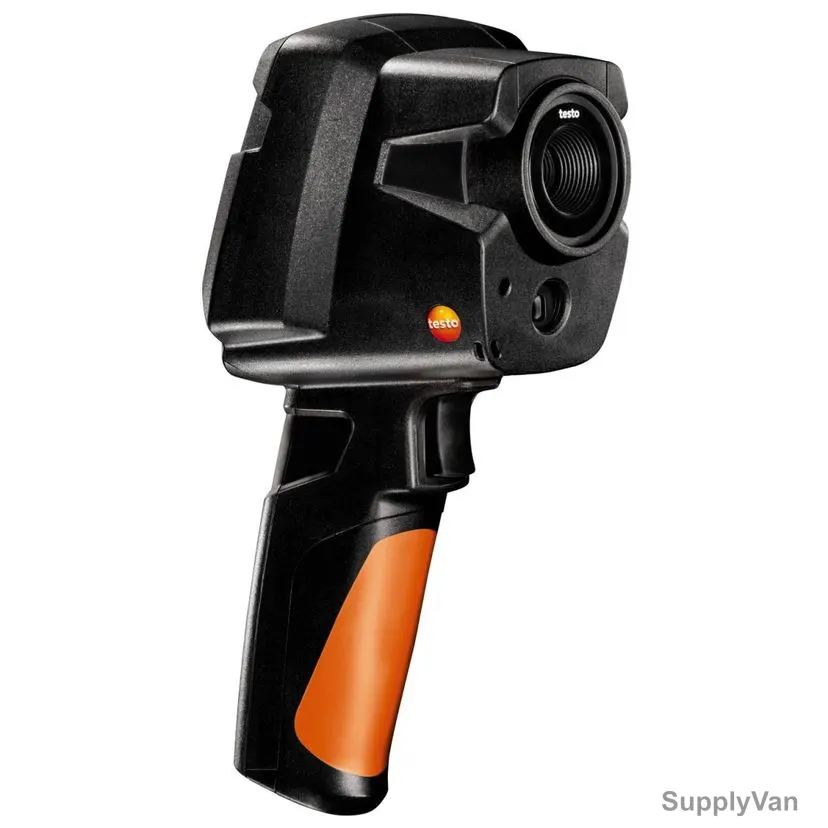

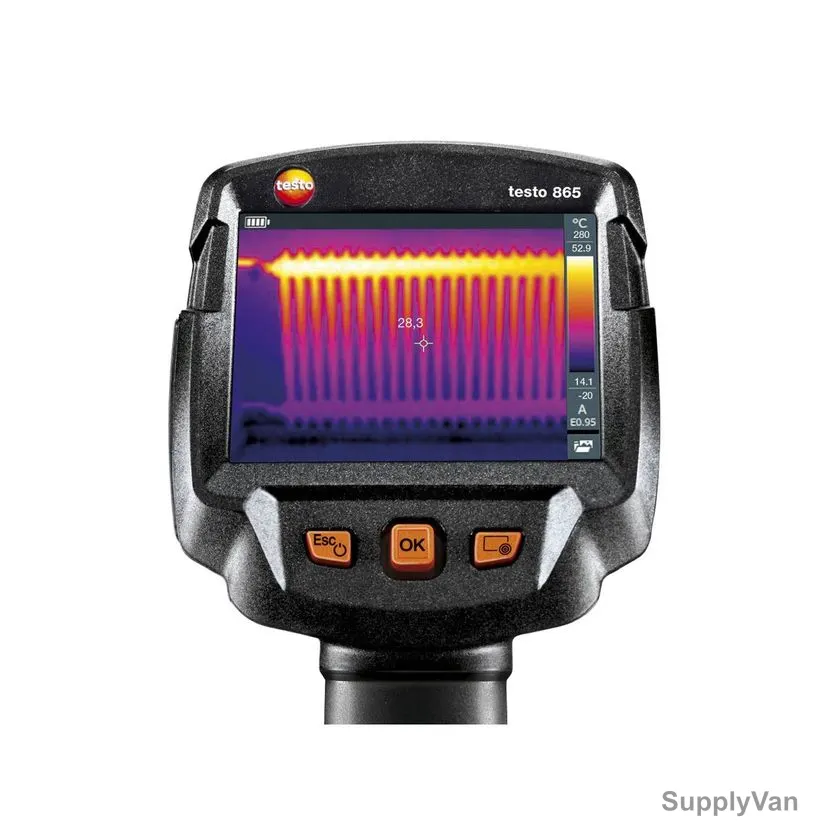

Testo Thermal Imager, 865, 320 x 240 pixels, -20 to +280 Deg.C

(No reviews yet) Write a Review
Brand:
Testo
SKU:
893222748495
Minimum Purchase:
1 unit
Item Name:
Thermal Imager
Article Number:
0560-8650
Manufacturer:
Testo
Material:
ABS and Polycarbonate
Color:
Black
Interface Type:
USB 2.0 Micro B
Display Size:
8.9cm
Ingress Protection (IP Rating):
IP54
Min Focus Distance:
<0.5 Mtr
Refresh Rate:
9 Hz
Display Type:
TFT, QVGA
Display Resolution:
320 x 240 pixels
Display Color:
4 (iron, rainbow, cold-hot, grey)
Spectral Range:
7.5 to 14 µm
Image Format:
.bmt, .jpg, export option in .bmp, .jpg, .png, .xls, .csv
Memory Capacity:
2.8 GB
Thermal Sensitivity:
120 mK
Field of View:
31 x 23 degree
Battery Type:
Lithium Ion
Battery Life:
4 hrs
Operating Ambient Temperature (Degree Celsius):
-15 to +50 Deg.C
Accuracy:
+/-2 Deg.C, +/-2% of mv
Emissivity:
0.01 to 1
Storage Temperature:
-30 to +60 Deg.C
Lens:
31 x 23 degree
Humidity:
20 to 80% RH non-condensing
Dimensions:
219 x 96 x 95mm
Measuring Range:
-20 to +280 Deg.C
System Requirements:
Windows 10, Windows 8, Windows 7
Brand Origin (not manufacture):
Germany
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Testo Thermal Imager, 865, 320 x 240 pixels, -20 to +280 Deg.C
  • Testo Thermal Imager, 865, 320 x 240 pixels, -20 to +280 Deg.C
  • Testo Thermal Imager, 865, 320 x 240 pixels, -20 to +280 Deg.C
  • Testo Thermal Imager, 865, 320 x 240 pixels, -20 to +280 Deg.C
  • Testo Thermal Imager, 865, 320 x 240 pixels, -20 to +280 Deg.C
  • Testo Thermal Imager, 865, 320 x 240 pixels, -20 to +280 Deg.C
AED5,634.00

Description

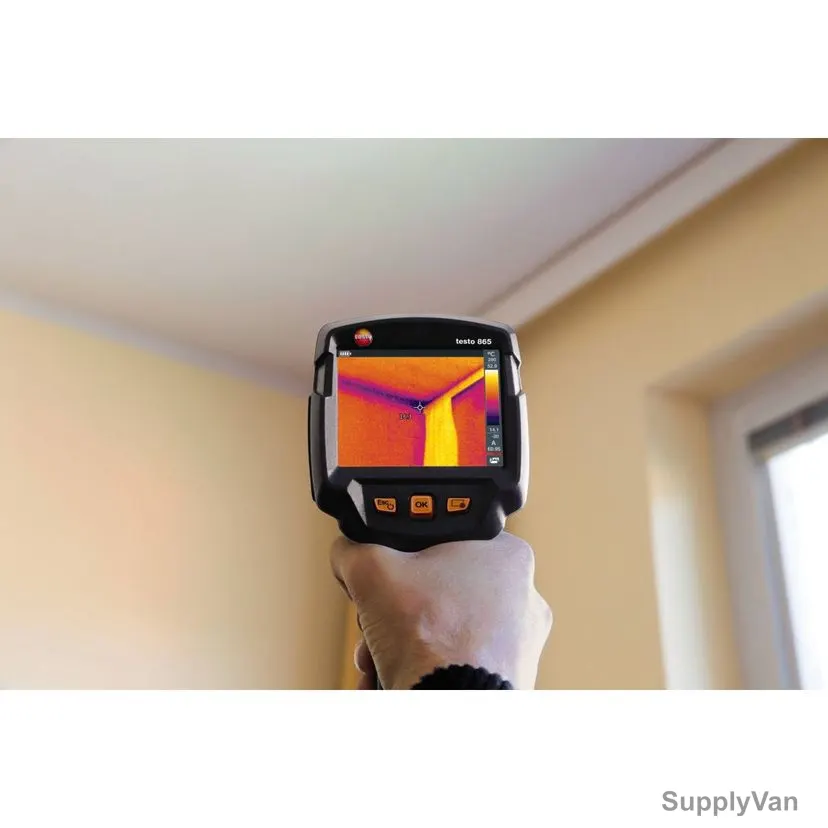

The Testo 865 thermal imager offers professional technology and concentrates on functions which are needed in a contractor's daily work. The Testo 865 is a user-friendly thermal imager, optimized for fast and efficient work. With the Testo ScaleAssist functions ensuring optimum setting of the thermal image scale for building thermography and the IFOV warner making sure you avoid measurement errors, you will always generate the perfect infrared image. Detect leaks, identify overheated connections, pinpoint thermal bridges or detect structural defects. The Testo 865 thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. It enables time-saving quality assurance and ensures reliable production control.
  • Very good image quality due to high resolution: 19,200 temperature measuring points ensure precise thermography. Infrared resolution of 160 x 120 pixels – via integrated SuperResolution Technology 320 x 240 pixels
  • Visualize temperature differences from 0.12 Deg.C
  • Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
  • The IFOV warner means the distance from the measurement object/measurement spot size is determined and the measurement spot is shown on the thermal image
  • Pro software for image evaluation on the PC
  • You can choose to save thermal images as JPEGs
  • Video Streaming: via USB
  • Infrared Resolution: 160 x 120 pixels
  • Geometric Resolution (IFOV): 3.4 mrad
  • SuperResolution (Pixel): 320 x 240 pixels
  • SuperResolution (IFOV): 2.1 mrad
  • Analysis function: Mean point measurement, hot/cold-spot recognition, Delta T
  • EU-/EG-guidelines: EMC: 2014/30/EU
  • Display Light: Bright/Normal/Dark
Item Name:
Thermal Imager
Article Number:
0560-8650
Manufacturer:
Testo
Material:
ABS and Polycarbonate
Color:
Black
Interface Type:
USB 2.0 Micro B
Display Size:
8.9cm
Ingress Protection (IP Rating):
IP54
Min Focus Distance:
<0.5 Mtr
Refresh Rate:
9 Hz
Display Type:
TFT, QVGA
Display Resolution:
320 x 240 pixels
Display Color:
4 (iron, rainbow, cold-hot, grey)
Spectral Range:
7.5 to 14 µm
Image Format:
.bmt, .jpg, export option in .bmp, .jpg, .png, .xls, .csv
Memory Capacity:
2.8 GB
Thermal Sensitivity:
120 mK
Field of View:
31 x 23 degree
Battery Type:
Lithium Ion
Battery Life:
4 hrs
Operating Ambient Temperature (Degree Celsius):
-15 to +50 Deg.C
Accuracy:
+/-2 Deg.C, +/-2% of mv
Emissivity:
0.01 to 1
Storage Temperature:
-30 to +60 Deg.C
Lens:
31 x 23 degree
Humidity:
20 to 80% RH non-condensing
Dimensions:
219 x 96 x 95mm
Measuring Range:
-20 to +280 Deg.C
System Requirements:
Windows 10, Windows 8, Windows 7
Brand Origin (not manufacture):
Germany
Delivery Time:
2-7 Days
Unit:
Piece
