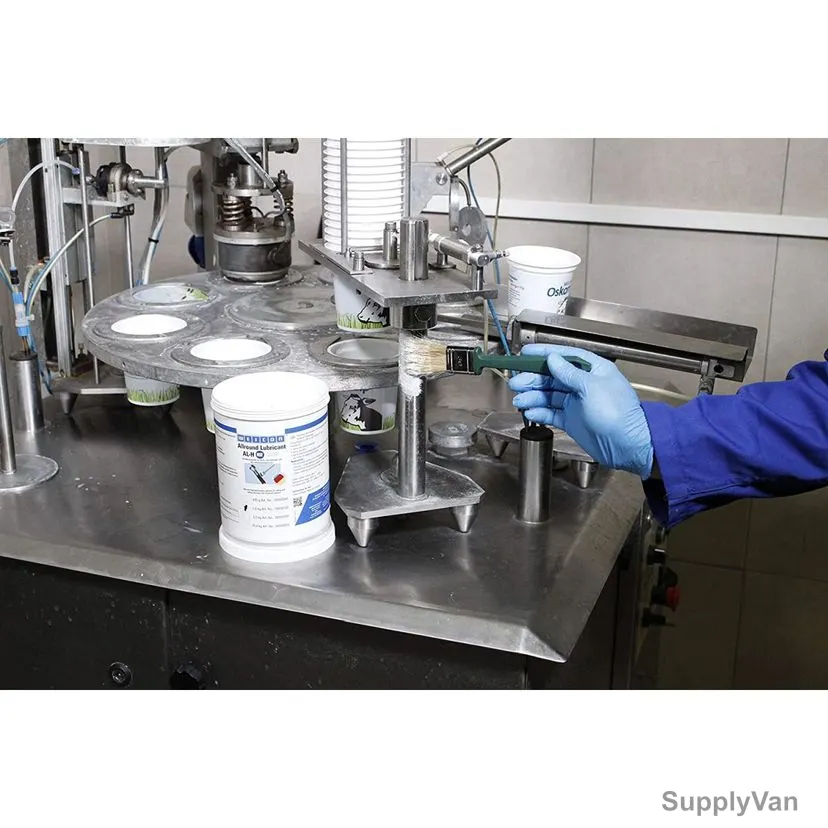

WEICON AL-H is suitable for rolling bearings, sliding bearings, joints, spindles, spline shafts and linear guidance systems at all sliding speeds permitted for grease lubrication. WEICON AL-H is particularly suited for usage in foodstuff technology.Technical Data: Abbreviation (DIN 51502): KPHC 1P -40 Consistency assignment (DIN 51818): NLGI-Class 1 Base: Aluminium complex soap / polyalphaolefine Colour: Yellowish-White Density at +20 Deg.C (+68 Deg.F) (DIN 51757): 0.93 g/cu.cm VKA-TEST (DIN 51350) welding load: 1800 N VKA-TEST (DIN 51350) goods load: 1700 N VKA-TEST (DIN 51350) Spherical cap value (1Min/1000N): 0.6mm Speed identifying value: 400.000 Worked penetration ( DIN ISO 2137): 310 - 340 1/10mm Water resistance (DIN 51807): 1 - 90 Specific heat transfer capacity (20 Deg.C): 1838 J/(g·K) Thermal diffusivity (20 Deg.C): 0.230 sq.mm/s Thermal conductivity (ISO 22007-4) (20 Deg.C): 0.394 W/m·K Dielectric strength (DIN EN 60243-1) (20 Deg.C): 29.6 kV/mm Drop Point (IP 396): > 200 Deg.C Kinematic viscosity (DIN 51562) at +40 deg.C: 400 sq.mm/s Kinematic viscosity (DIN 51562) at +100 Deg.C: 40 sq.mm/s EMCOR corrosion test (DIN 51 802): 1/1 Conforms to: NSF-H 1, LFGB Section 31 and Section 21 Storage Stability: 24 months Temperature Resistance: -40 to +160 Deg.C ISSA-Code: 53.052.20/21 IMPA-Code: 450439/40
- High temperature grease with NSF approval odourless and tasteless
- Clean Surface pre-treatment
