Brand: Weicon

Weicon AN 302-45 Pipe and Thread Sealing, 30245200, Weiconlock, 200ML

346679175769
346679175769
(No reviews yet) Write a Review
Available for Inquiry
◈
Interested to buy in bulk?
Get customized price
Payment Methods Accepted
Visa Visa
Mastercard Mastercard
Pay Pay
POS Card POS Card
Cash On Delivery Cash On Delivery
Bank Transfer Bank Transfer
SUPPLYVANTAGE
🏅
Original
Products
👍
Warranty
Against Defects
💲
Returns &
Refund Policy
🎧
Dedicated
Support
🛡️
100% Client
Protection
  • Weicon AN 302-45 Pipe and Thread Sealing, 30245200, Weiconlock, 200ML
  • Weicon AN 302-45 Pipe and Thread Sealing, 30245200, Weiconlock, 200ML

Description

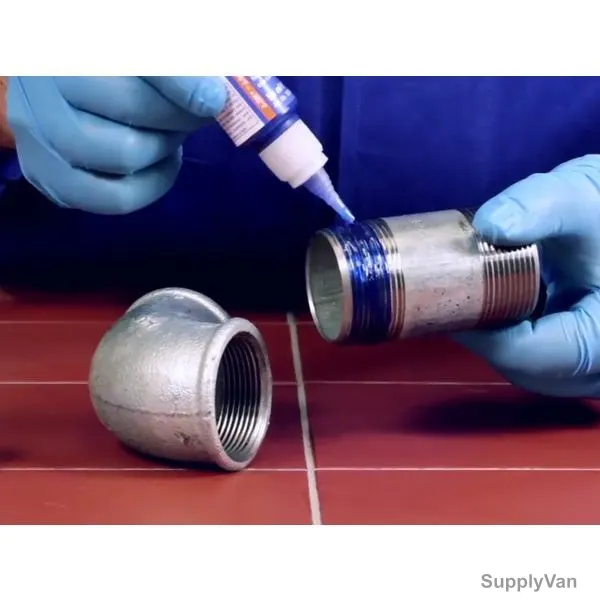

WEICONLOCK is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). Apply WEICONLOCK in circular motions on the thread. Screw pipe threads together and tighten until desired orientation. When using as flange sealing apply a continuous bead on one side. Join and tighten parts quickly. Do not pour back into the bottle any WEICONLOCK fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.
Technical Data
  • For Threaded Joints Upto: M80 R 3 Inch
  • Viscosity at 25 Deg.C According to Brookfield: 6.000 - 30.000 mPa新
  • Max. Gap Bridging: 0.3mm
  • Breakaway Strength (Thread): 10 - 15 Nm
  • Prevailing Stregth: 12 - 18 Nm
  • Shear Strength (DIN 54452): 8 - 12 N/sq.mm
  • Handling Strength at Room Temperature: 15 - 30 Min
  • Final Strength (100%) After: 3 to 6 Hrs
  • Temperature Resistance: -60 to 150 Deg.C

    • Higher viscosity
    • Medium strength
    • Disassembly with normal tools
    Item Name:
    Pipe and Thread Sealing
    Model:
    30245200
    Product Series:
    Weiconlock
    EAN Code:
    4024596010539
    Manufacturer:
    Weicon
    Color:
    Blue
    Size:
    200ml
    Final Strength:
    3 to 6 Hrs
    Care Instructions:
    WEICONLOCK can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps WEICONLOCK liquid.
    Temperature Resistance:
    -60 to 150 Deg.C
    Brand Origin (not manufacture):
    Germany
    Delivery Time:
    2-7 Days
    Packing Quantity:
    1
    Unit:
    Piece
