Weicon AN 302-45 Pipe and Thread Sealing, 30245150, Weiconlock, 50ML
(No reviews yet)
Write a Review
- Brand:
- Weicon
- SKU:
- 442574368212
- Minimum Purchase:
- 1 unit
- Item Name:
- Pipe and Thread Sealing
- Product Series:
- Weiconlock
- Manufacturer:
- Weicon
- Color:
- Blue
- Size:
- 50ml
- Final Strength:
- 3 to 6 Hrs
- Height:
- 18.8cm
- Care Instructions:
- WEICONLOCK can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps WEICONLOCK liquid.
- Temperature Resistance:
- -60 to 150 Deg.C
- Brand Origin (not manufacture):
- Germany
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

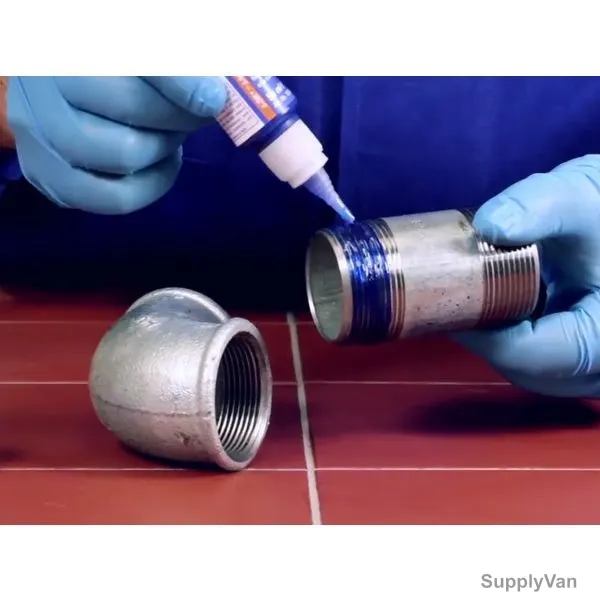

WEICONLOCK is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). Apply WEICONLOCK in circular motions on the thread. Screw pipe threads together and tighten until desired orientation. When using as flange sealing apply a continuous bead on one side. Join and tighten parts quickly. Do not pour back into the bottle any WEICONLOCK fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.Technical DataFor Threaded Joints Upto: M80 R 3 Inch Viscosity at 25 Deg.C According to Brookfield: 6.000 - 30.000 mPa新 Max. Gap Bridging: 0.3mm Breakaway Strength (Thread): 10 - 15 Nm Prevailing Stregth: 12 - 18 Nm Shear Strength (DIN 54452): 8 - 12 N/sq.mm Handling Strength at Room Temperature: 15 - 30 Min Final Strength (100%) After: 3 to 6 Hrs Temperature Resistance: -60 to 150 Deg.C
View AllClose
- Higher viscosity
- Medium strength
- Disassembly with normal tools
Item Name: |
Pipe and Thread Sealing |
Product Series: |
Weiconlock |
Manufacturer: |
Weicon |
Color: |
Blue |
Size: |
50ml |
Final Strength: |
3 to 6 Hrs |
Height: |
18.8cm |
Care Instructions: |
WEICONLOCK can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps WEICONLOCK liquid. |
Temperature Resistance: |
-60 to 150 Deg.C |
Brand Origin (not manufacture): |
Germany |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
