Weicon BR Epoxy Resin, 10420002, 0.2 Kg
- Brand:
- Weicon
- SKU:
- 651615425862
- Minimum Purchase:
- 1 unit
- Item Name:
- Epoxy Resin
- Manufacturer:
- Weicon
- Size:
- 0.2 Kg
- Application Area:
- Tool construction, Model and Mould making, and in many other industrial applications
- Curing Time:
- 6 hrs
- Viscosity:
- 750000 MPa
- Tensile Strength:
- 55 MPa
- Hardness:
- 87 +/-3
- Elongation at Break:
- 0.9%
- Processing Temperature:
- +15 to 40 Deg.C
- Mixing Ratio by Weight:
- 100:100
- Mixing Ratio by Volume:
- 100:98
- Density:
- 1.8 g/cu.cm
- Max. Layer Thickness:
- 12mm
- Temperature Resistance:
- -35 to +120 Deg.C
- Heating Capacity:
- 0.82 J
- Thermal Conductivity:
- 0.5 W/mK
- Final Strength:
- 12 hrs
- Compressive Strength:
- 91 MPa
- Color After Curing:
- Glossy Bronze
- Bending Strength:
- 35 MPa
- Adhesion Strength:
- 17 MPa
- Brand Origin (not manufacture):
- Germany
- Product Size L x B x H (Cms):
- 19.4L x 11B x 11.8H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

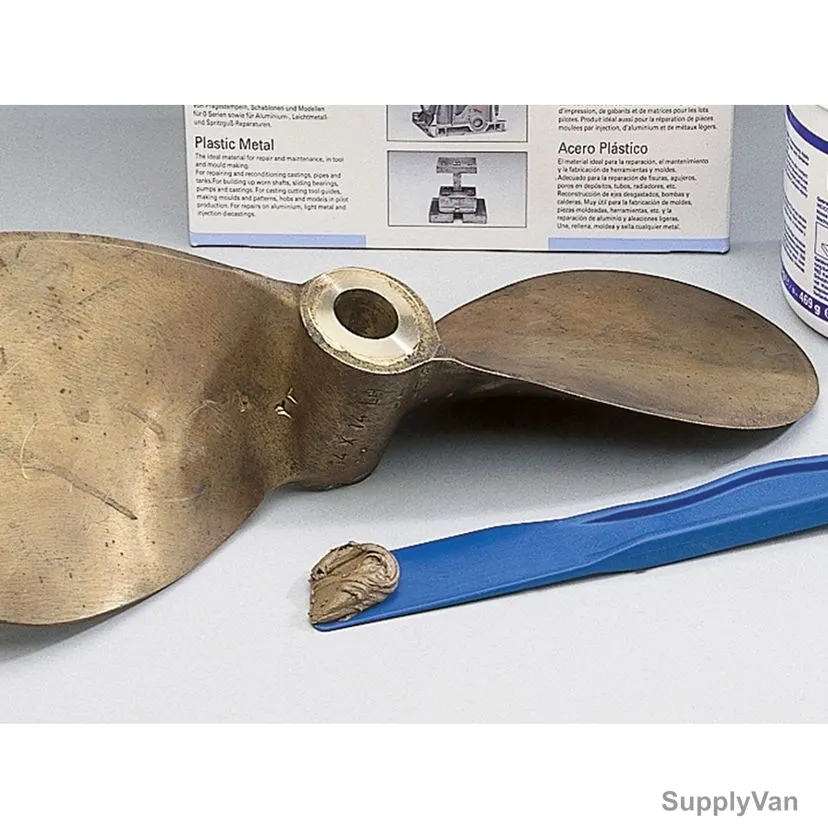

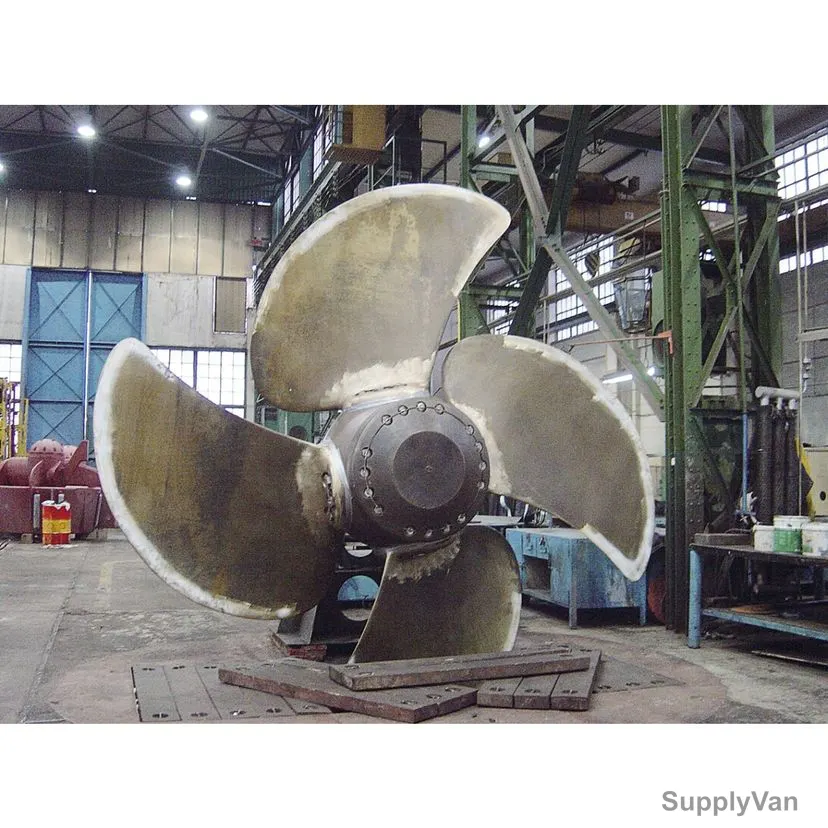

Weicon BR is particularly suited for filling in blowholes and for repairing and rebuilding bronze equipment parts and castings. It can be used in tool construction, model and mould making, and in many other industrial applications.
View AllClose
- Pasty
- Bronze-filled
Item Name: |
Epoxy Resin |
Manufacturer: |
Weicon |
Size: |
0.2 Kg |
Application Area: |
Tool construction, Model and Mould making, and in many other industrial applications |
Curing Time: |
6 hrs |
Viscosity: |
750000 MPa |
Tensile Strength: |
55 MPa |
Hardness: |
87 +/-3 |
Elongation at Break: |
0.9% |
Processing Temperature: |
+15 to 40 Deg.C |
Mixing Ratio by Weight: |
100:100 |
Mixing Ratio by Volume: |
100:98 |
Density: |
1.8 g/cu.cm |
Max. Layer Thickness: |
12mm |
Temperature Resistance: |
-35 to +120 Deg.C |
Heating Capacity: |
0.82 J |
Thermal Conductivity: |
0.5 W/mK |
Final Strength: |
12 hrs |
Compressive Strength: |
91 MPa |
Color After Curing: |
Glossy Bronze |
Bending Strength: |
35 MPa |
Adhesion Strength: |
17 MPa |
Brand Origin (not manufacture): |
Germany |
Product Size L x B x H (Cms): |
19.4L x 11B x 11.8H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
