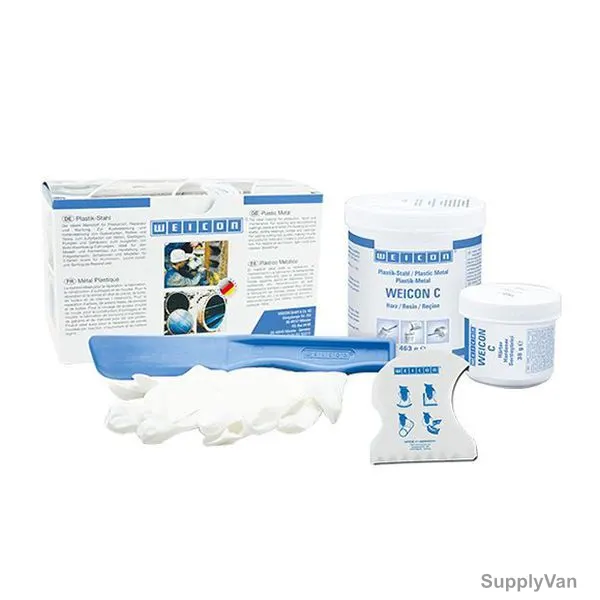

Weicon C Epoxy Resin, 10100005, 0.5 Kg
- Brand:
- Weicon
- SKU:
- 816374591345
- Minimum Purchase:
- 1 unit
- Item Name:
- Epoxy Resin
- Manufacturer:
- Weicon
- Size:
- 0.5 Kg
- Application Area:
- Tool and Mould Making sector, as well as in many other industrial areas subjected to high thermal stress
- Curing Time:
- 10 hrs
- Viscosity:
- 25000 MPa
- Tensile Strength:
- 48 MPa
- Hardness:
- 84 +/-3
- Elongation at Break:
- 0.9%
- Processing Temperature:
- +15 to 40 Deg.C
- Mixing Ratio by Weight:
- 100:8
- Mixing Ratio by Volume:
- 100:14
- Density:
- 1.6 g/cu.cm
- Max. Layer Thickness:
- 60mm
- Temperature Resistance:
- -35 to +200 Deg.C
- Heating Capacity:
- 0.90 J
- Thermal Conductivity:
- 0.6 W/mK
- Final Strength:
- 24 hrs
- Compressive Strength:
- 140 MPa
- Color After Curing:
- Grey
- Impact Strength:
- 8-9 kJ/sq.m
- Bending Strength:
- 77 MPa
- Adhesion Strength:
- 16 MPa
- Brand Origin (not manufacture):
- Germany
- Product Size L x B x H (Cms):
- 19.4L x 11B x 11.8H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Temperature resistant and liquid epoxy resin system, specially for the industrial use. Non-corrosive, anti-magnetic, cures practically without shrinkage. Weicon C is particularly suitable as an adhesive for large-scale applications, for pouring out moulds and for the production of fixing devices and tools (e.g. injection moulds). It can be used in the tool and mould making sector, as well as in many other industrial areas subjected to high thermal stress.
View AllClose
- Aluminium-filled
- Up to +220 Deg.C (+428 Deg.F) high temperature resistant
Item Name: |
Epoxy Resin |
Manufacturer: |
Weicon |
Size: |
0.5 Kg |
Application Area: |
Tool and Mould Making sector, as well as in many other industrial areas subjected to high thermal stress |
Curing Time: |
10 hrs |
Viscosity: |
25000 MPa |
Tensile Strength: |
48 MPa |
Hardness: |
84 +/-3 |
Elongation at Break: |
0.9% |
Processing Temperature: |
+15 to 40 Deg.C |
Mixing Ratio by Weight: |
100:8 |
Mixing Ratio by Volume: |
100:14 |
Density: |
1.6 g/cu.cm |
Max. Layer Thickness: |
60mm |
Temperature Resistance: |
-35 to +200 Deg.C |
Heating Capacity: |
0.90 J |
Thermal Conductivity: |
0.6 W/mK |
Final Strength: |
24 hrs |
Compressive Strength: |
140 MPa |
Color After Curing: |
Grey |
Impact Strength: |
8-9 kJ/sq.m |
Bending Strength: |
77 MPa |
Adhesion Strength: |
16 MPa |
Brand Origin (not manufacture): |
Germany |
Product Size L x B x H (Cms): |
19.4L x 11B x 11.8H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
