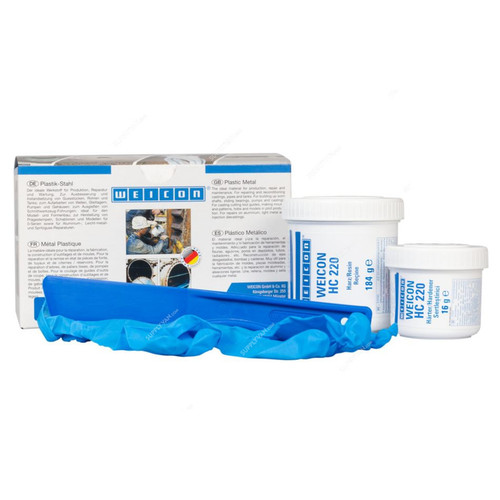

Weicon Ceramic HC 220 Epoxy Resin, 10120002, 200GM
(No reviews yet)
Write a Review
- Brand:
- Weicon
- SKU:
- 794767778796
- Minimum Purchase:
- 0 units
- Item Name:
- Epoxy Resin
- Manufacturer:
- Weicon
- Size:
- 200gm
- Shelf Life:
- 6 Months
- Storage Temperature:
- 18 to 28 Deg.C
- Texture:
- Flowable
- Chemical Base:
- Epoxy
- Viscosity:
- 30.000 MPa
- Tensile Strength:
- 51 MPa
- Hardness:
- 85+/-3
- Elongation at Break:
- 0.8%
- Processing Temperature:
- 15 to 40 Deg.C
- Mixing Ratio by Weight:
- 100:10
- Mixing Ratio by Volume:
- 100:16
- Density:
- 1.7 g/cu.cm
- Max. Layer Thickness:
- 10mm
- Temperature Resistance:
- -35 to 220 Deg.C
- Shrinkage:
- 0.14%
- Final Strength:
- 10 Hrs
- Compressive Strength:
- 160 MPa
- Color After Curing:
- Dark Grey
- Bending Strength:
- 83 MPa
- Brand Origin (not manufacture):
- Germany
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The epoxy resin system Weicon Ceramic HC 220 provides high abrasion resistance and serves as wear protection for heavily used surfaces. It is temperature-resistant up to +220 Deg.C, flowable, ceramic-filled, resistant to chemicals and has a high adhesive strength. Ceramic HC 220 can be easily processed with a paint brush and applied to large surfaces. The epoxy resin systems is non-corrosive, anti-magnetic and cures practically without shrinkage. The product can be used in mechanical and plant engineering, in equipment engineering, and in many other areas of industry where high temperature loads are part of daily work.
View AllClose
- ceramic-filled high temperature-resistant epoxy resin system for wear protection coating
Item Name: |
Epoxy Resin |
Manufacturer: |
Weicon |
Size: |
200gm |
Shelf Life: |
6 Months |
Storage Temperature: |
18 to 28 Deg.C |
Texture: |
Flowable |
Chemical Base: |
Epoxy |
Viscosity: |
30.000 MPa |
Tensile Strength: |
51 MPa |
Hardness: |
85+/-3 |
Elongation at Break: |
0.8% |
Processing Temperature: |
15 to 40 Deg.C |
Mixing Ratio by Weight: |
100:10 |
Mixing Ratio by Volume: |
100:16 |
Density: |
1.7 g/cu.cm |
Max. Layer Thickness: |
10mm |
Temperature Resistance: |
-35 to 220 Deg.C |
Shrinkage: |
0.14% |
Final Strength: |
10 Hrs |
Compressive Strength: |
160 MPa |
Color After Curing: |
Dark Grey |
Bending Strength: |
83 MPa |
Brand Origin (not manufacture): |
Germany |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
