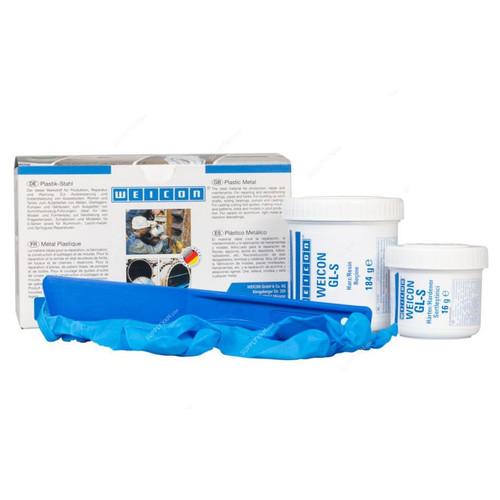

Weicon GL-S Epoxy Resin, 10705002, 200GM
- Brand:
- Weicon
- SKU:
- 112761861447
- Minimum Purchase:
- 0 units
- Item Name:
- Epoxy Resin
- Manufacturer:
- Weicon
- Size:
- 200gm
- Shelf Life:
- 36 Months
- Storage Temperature:
- 18 to 28 Deg.C
- Texture:
- Flowable
- Chemical Base:
- Epoxy
- Viscosity:
- 23.000 MPa
- Tensile Strength:
- 59 MPa
- Hardness:
- 90+/-3
- Elongation at Break:
- 0.9%
- Mixing Ratio by Weight:
- 100:8
- Mixing Ratio by Volume:
- 100:15
- Density:
- 1.8 g/cu.cm
- Max. Layer Thickness:
- 10mm
- Temperature Resistance:
- -35 to 180 Deg.C
- Heating Capacity:
- 0.91J
- Thermal Conductivity:
- 0,6 W/m·K
- Shrinkage:
- 0.13%
- Final Strength:
- 12 Hrs
- Compressive Strength:
- 116 MPa
- Color After Curing:
- Green
- Bending Strength:
- 80 MPa
- Brand Origin (not manufacture):
- Germany
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The epoxy resin system Weicon GL-S provides high abrasion resistance and serves as wear protection for heavily used surfaces. It is flowable, spreadable (can be applied with a paint brush), has a high initial strength, is mineral-filled, and resistant to chemicals. Weicon GL-S is also well-suited for creating a system structure in combination with Weicon Ceramic BL. Due to its long recoat time of five hours, GL-S is especially suitable for applications at higher ambient temperatures or for larger surfaces. The different colours of Ceramic BL (blue) and GL-S (dark green) make it easy to determine the degree of wear during visual inspections. It is particularly suitable for lining heavily stressed pump casings, as wear protection for slide bearings, chutes, funnels and pipes, and for the repair of castings, valves and fan blades. The product can be used in mechanical and plant engineering, in equipment engineering, and in many other areas of industry.
View AllClose
- 2-component epoxy resin
- mineral wear protection with control function
Item Name: |
Epoxy Resin |
Manufacturer: |
Weicon |
Size: |
200gm |
Shelf Life: |
36 Months |
Storage Temperature: |
18 to 28 Deg.C |
Texture: |
Flowable |
Chemical Base: |
Epoxy |
Viscosity: |
23.000 MPa |
Tensile Strength: |
59 MPa |
Hardness: |
90+/-3 |
Elongation at Break: |
0.9% |
Mixing Ratio by Weight: |
100:8 |
Mixing Ratio by Volume: |
100:15 |
Density: |
1.8 g/cu.cm |
Max. Layer Thickness: |
10mm |
Temperature Resistance: |
-35 to 180 Deg.C |
Heating Capacity: |
0.91J |
Thermal Conductivity: |
0,6 W/m·K |
Shrinkage: |
0.13% |
Final Strength: |
12 Hrs |
Compressive Strength: |
116 MPa |
Color After Curing: |
Green |
Bending Strength: |
80 MPa |
Brand Origin (not manufacture): |
Germany |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
