Weicon Retaining Cylindrical Assemblies, 30601150, Weiconlock, 50ML

(No reviews yet) Write a Review
Brand:
Weicon
SKU:
176288589427
Minimum Purchase:
1 unit
Item Name:
Retaining Cylindrical Assemblies
Product Series:
Weiconlock
Manufacturer:
Weicon
Color:
Green
Size:
50ml
Height:
18.8cm
IMPA Code:
815216/17/18
Final Strength:
2-4 Hrs
Care Instructions:
Do not pour back into the bottle any Weiconlock fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended
Storage Stability:
24 Months
Temperature Resistance:
-60 to 150 Deg.C
Brand Origin (not manufacture):
Germany
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Weicon Retaining Cylindrical Assemblies, 30601150, Weiconlock, 50ML
  • Weicon Retaining Cylindrical Assemblies, 30601150, Weiconlock, 50ML
AED100.00

Description

Surface pre-treatment

In general, WEICONLOCK does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated. However, best results will be achieved on cleaned, degreased parts (use WEICON Surface Cleaner). If required, the parts should be slightly roughened.

Processing

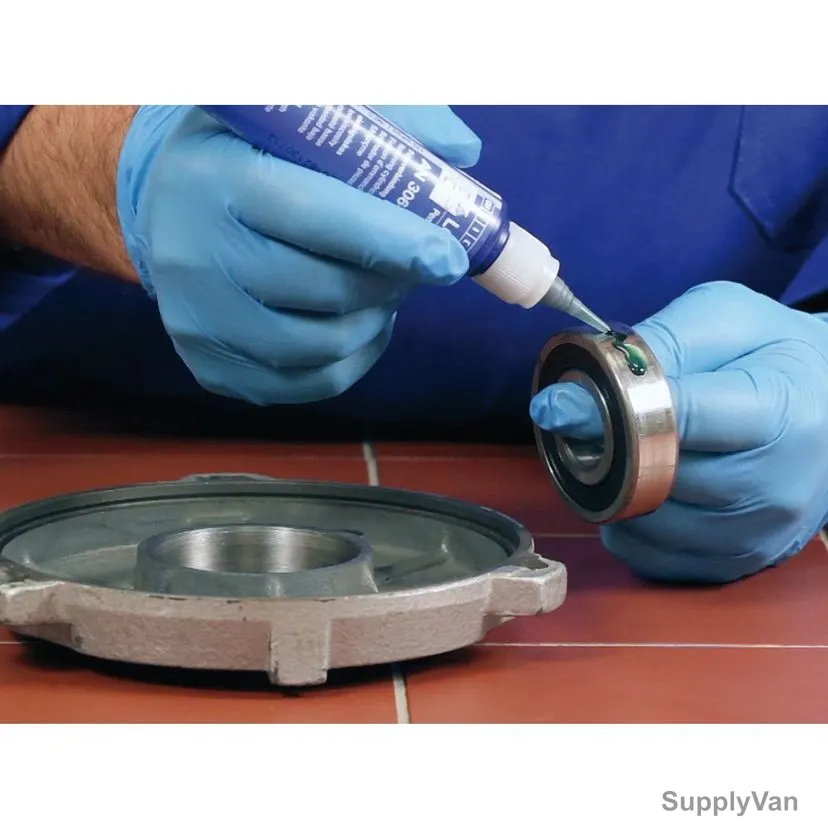

WEICONLOCK is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). On press fitted parts and larger cylindrical assemblies a thin and uniform layer should be applied on both surfaces. Join parts quickly. For sliding seats, turn the parts against each other when joining for an optimal distribution of the adhesive. Joint parts should not be moved until handling strength is reached. Do not pour back into the bottle any WEICONLOCK fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.

Storage

WEICONLOCK can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps WEICONLOCK liquid.

Safety and health

When using WEICON products, the physical, safety technical, toxicological and ecological data and regulations in our EC safety data sheets (www.weicon.com) must be observed.

Technical Data
  • For threaded joints up to: M12
  • Viscosity at 25 Deg.C according to Brookfield: 125 nt mPa新
  • Max. Gap Bridging: 0.1mm
  • Breakaway strength (Thread): 25-30 Nm
  • Prevailing stregth: 50-60 Nm
  • Shear strength Nmm?(DIN 54452): 18-23 N/sq.mm
  • Handling strength at room temperature: 10-20 minute
  • ISSA-Code: 75.628.15/16/17

    • Retaining cylindrical assemblies for bearings, shafts and bushings.
    • Low viscosity
    • High strength
    • Hard to disassemble
    • Handling strength: 10 - 20 min.
    Item Name:
    Retaining Cylindrical Assemblies
    Product Series:
    Weiconlock
    Manufacturer:
    Weicon
    Color:
    Green
    Size:
    50ml
    Height:
    18.8cm
    IMPA Code:
    815216/17/18
    Final Strength:
    2-4 Hrs
    Care Instructions:
    Do not pour back into the bottle any Weiconlock fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended
    Storage Stability:
    24 Months
    Temperature Resistance:
    -60 to 150 Deg.C
    Brand Origin (not manufacture):
    Germany
    Delivery Time:
    2-7 Days
    Unit:
    Piece
