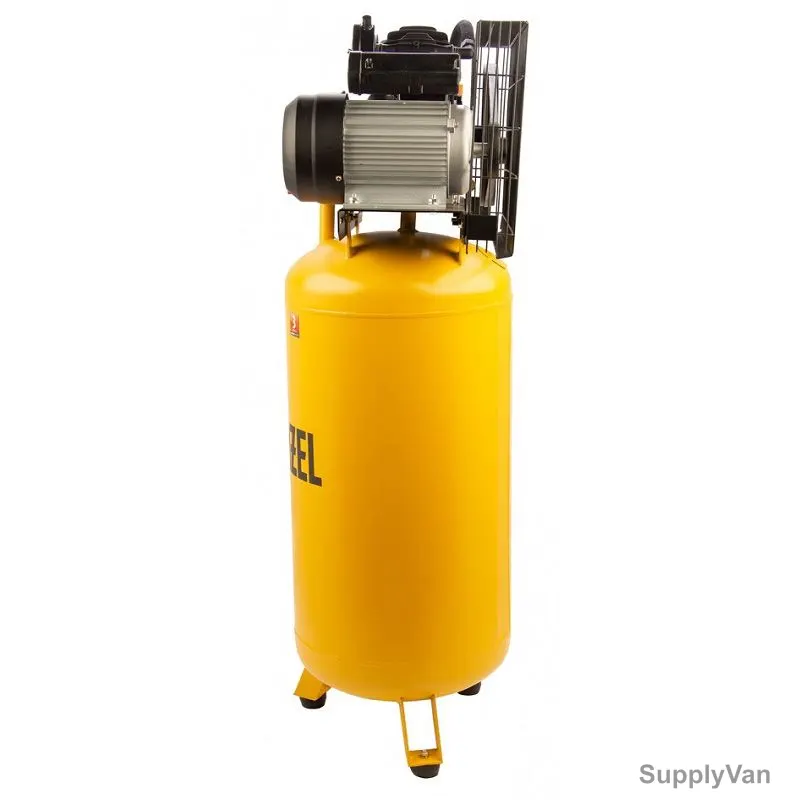

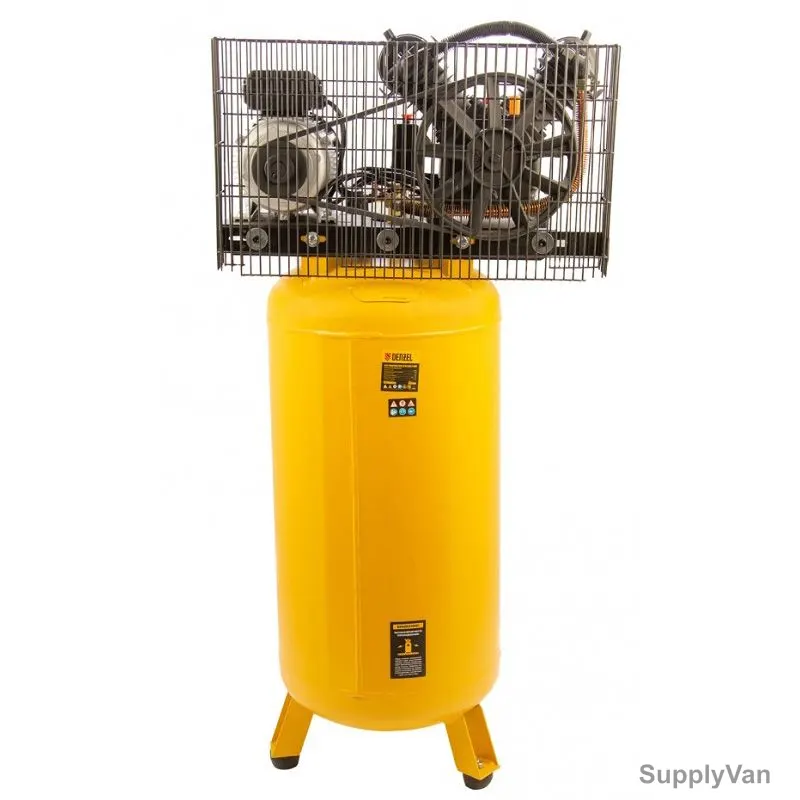

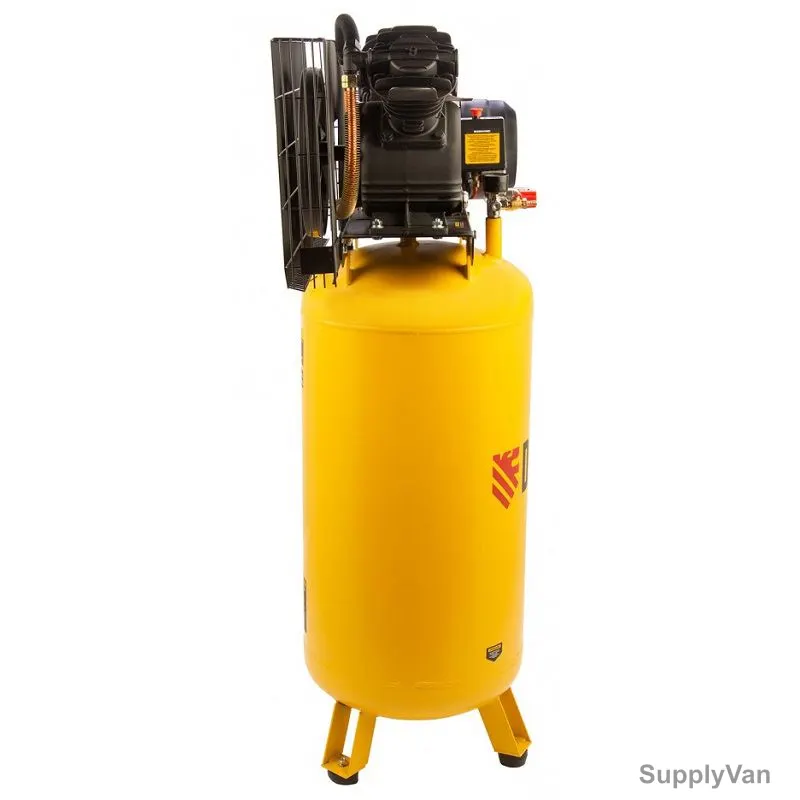

Denzel BCV2200/100V Air Compressor with a power of 2.3 kW is used to provide compressed air to such tools as a paint sprayer, wrench, nail gun, drill, tire inflation gun, etc. A high performance of 440 l/min allows the equipment to be used not only in country houses and garages but also in factories, car service stations, in various workshops. Compressed air is stored in a 100 litre receiver. It is located vertically, which saves space on the work site. For stability, the compressor is attached to the wall or floor.
The temperature sensor turns off the motor when it gets too hot, protecting it from damage. A restart will not occur until the engine has cooled down
Overload protection is triggered when the current threshold value is exceeded, saving the motor resource
The copper wound motor is resistant to continuous loads, so it can run a full 8-hour shift without compromising performance

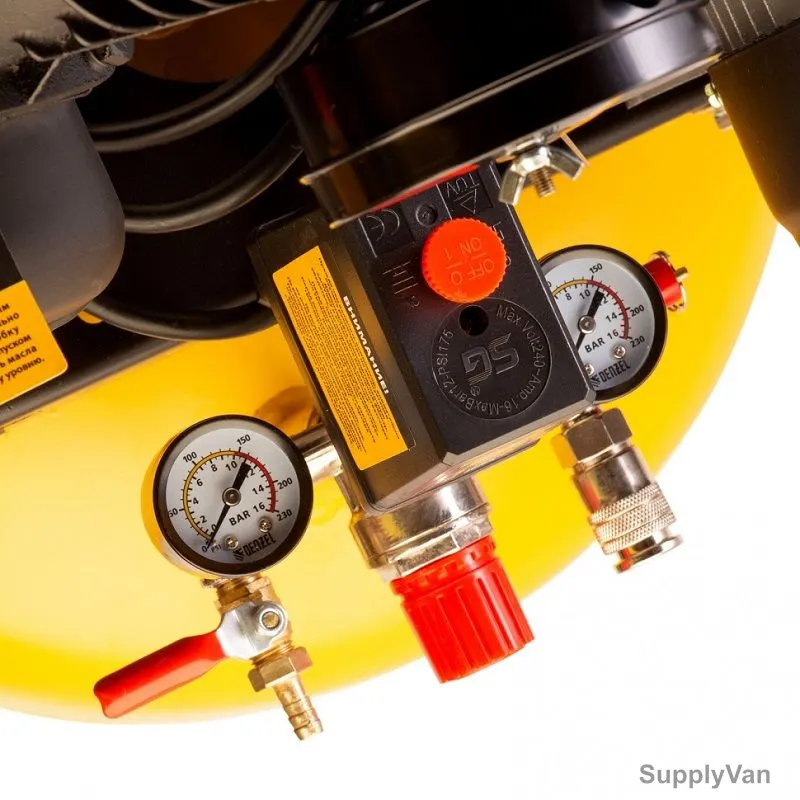

2 pressure gauges allow you to take accurate readings of the pressure in the accumulator and on the feed to the pneumatic tool, which provides complete control of the workflow
The compressor relay regulates the pressure in the receiver: when it reaches 10 bar, it turns off the engine, when it falls below XX bar, it automatically starts. This saves operator time, keeps productivity high and avoids accidents
The safety valve instantly releases excess air and lowers the pressure if the relay does not work in time. This safety net provides confidence in the safety of the workflow and protects the receiver from explosion
The strong walls of the receiver with a thickness of almost 3 mm allow you to use the compressor for a long time without fear for its safety
The filter element made of corrugated paper traps even small dust particles, while passing air faster than foam analogs. As a result, the engine piston system is protected from damage and its service life is increased

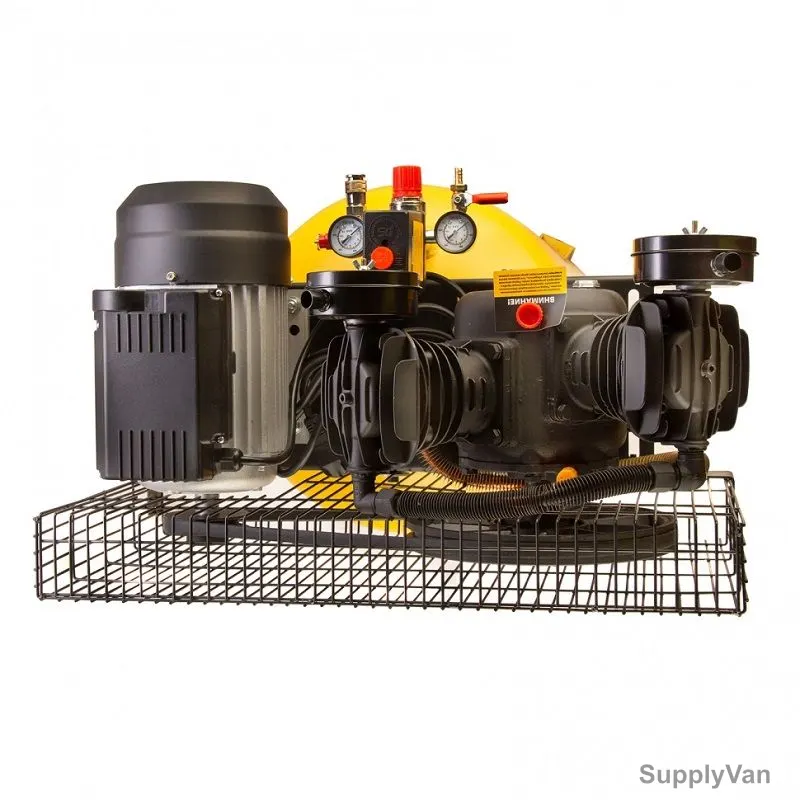

The cast-iron cylinder , due to the polished inner surface and large cooling fins on the outer surface, is less amenable to friction and better removes heat, which ensures its wear resistance
The valve plate is quite massive and precision-manufactured. Thanks to this, the tightness of the valve mechanism is maintained in conditions of high temperatures, high humidity and intense loads
The parts of the crankcase fit perfectly, the cover closes tightly, which provides protection against oil leaks. There is a viewing window on the crankcase to monitor the oil level

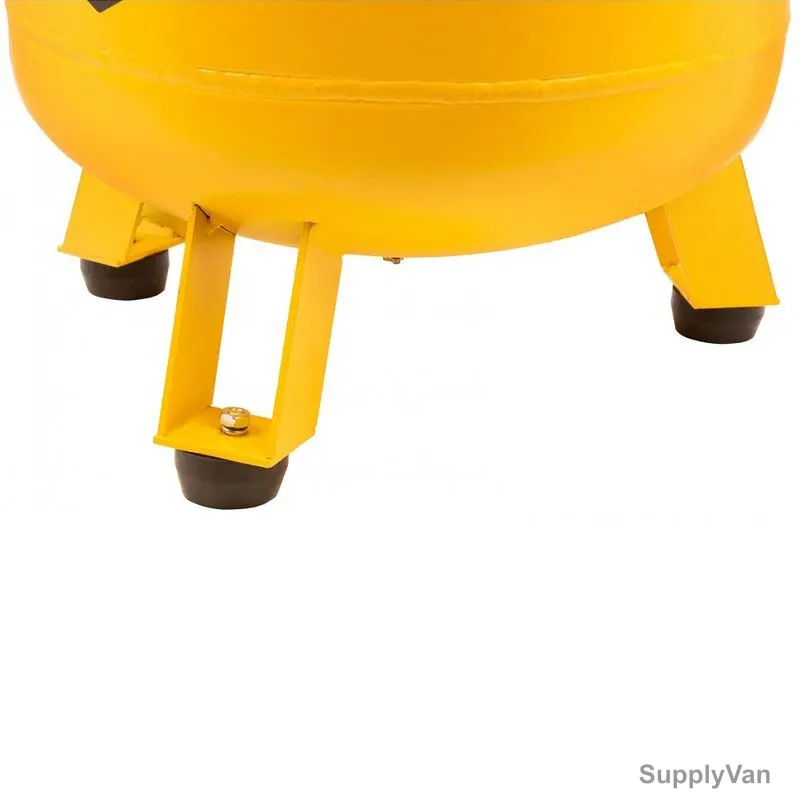

Rubber vibration mounts minimize vibrations from the running compressor and give it stability
Finger stops make it easier to open the drain valve and remove condensate from the receiver after a work shift- Receiver: Vertical
- Receiver Wall Thickness: 2.75mm
- Number of Cylinders: 2
- Lubrication Type: Oil
- Motor Speed: 2800 RPM
- Compressor Speed: 1005 RPM
- Connectable Connectors: Rapid connectors (EURO) + herringbone fitting
- Peculiarities: 2 pressure gauges, engine protection against overheating and overload
