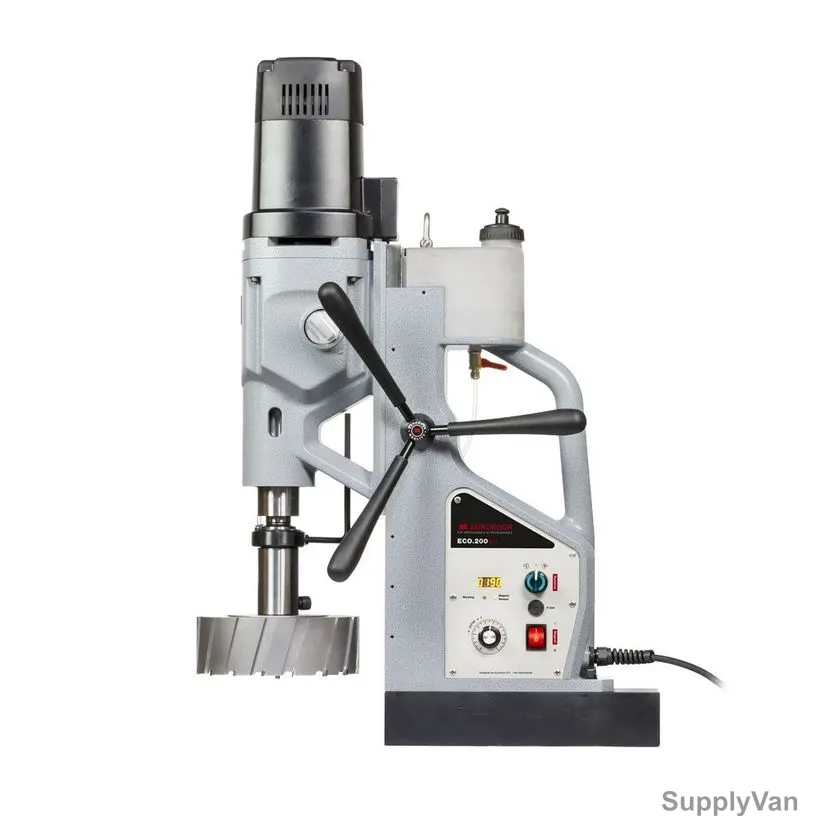

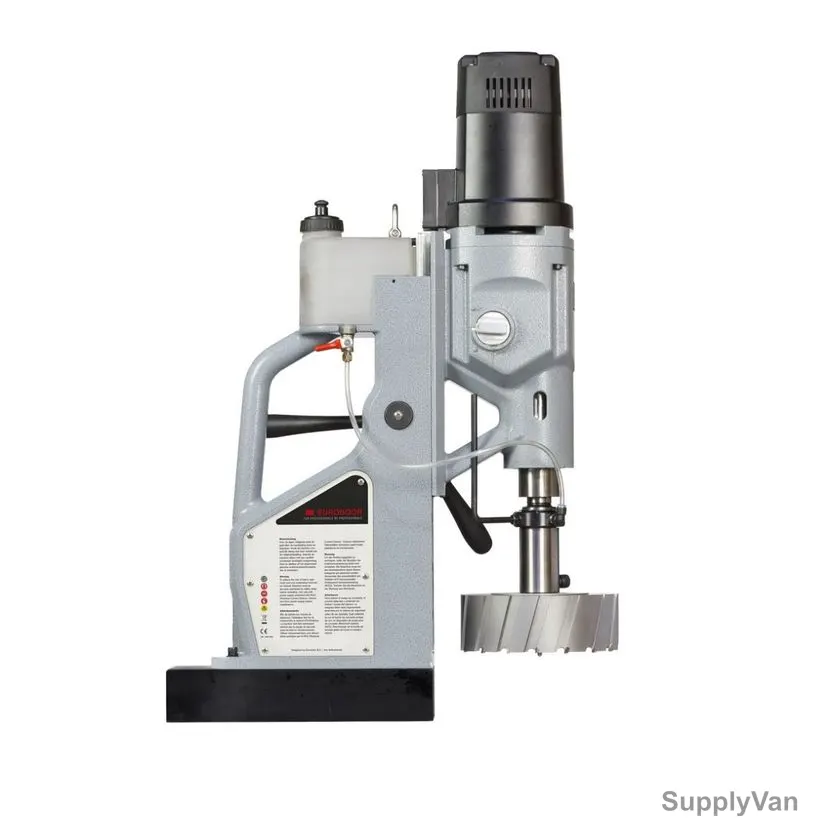

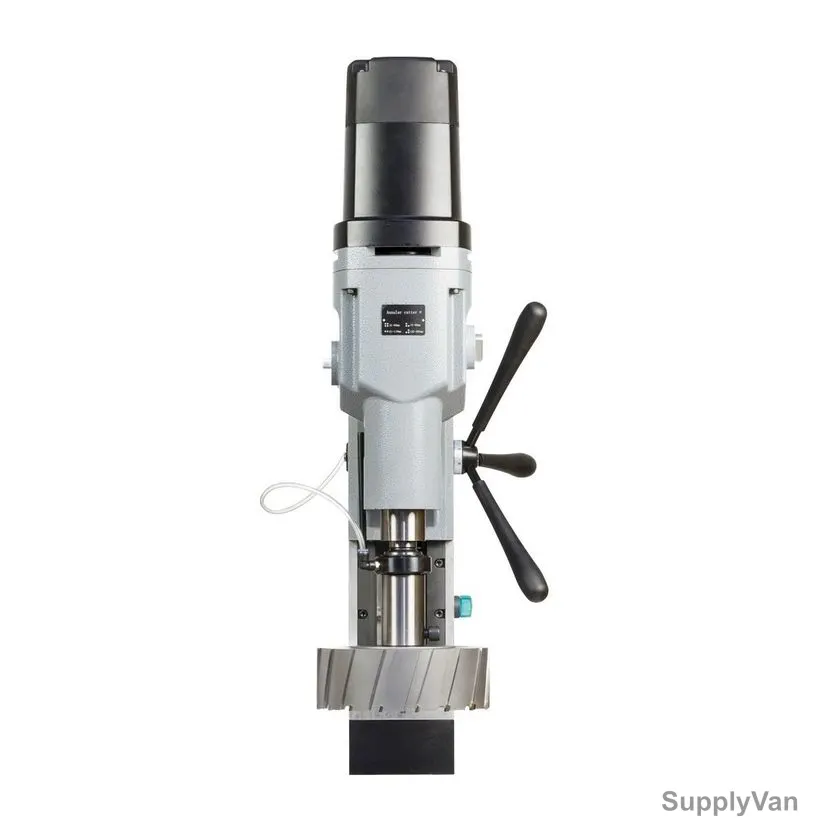

Euroboor Magnetic Drilling Machine, ECO.200S/T, 2950W, 220-240V, 100MM Cutting Dia

(No reviews yet) Write a Review
Brand:
Euroboor
SKU:
712361289631
Minimum Purchase:
1 unit
Item Name:
Magnetic Drilling Machine
Model:
ECO.200S/T
Manufacturer:
Euroboor
Color:
Grey and Black
Voltage:
220-240V
Frequency:
50-60Hz
Length:
515mm
Height:
905mm
Width:
265mm
Cutting Diameter:
12-100mm
Countersink Diameter:
10-50mm
Twist Drill Diameter:
1-2mm
Connection Size:
31.75mm
Stroke Width:
255mm
Maximum Height:
905mm
Minimum Height:
650mm
Rotation Angle:
Bidirectional
Magnetic Force:
3680 Kg
Motor Power:
2800W
Total Power:
2950W
Power Source Type:
Electric
Application:
Drilling, Countersinking, Threading
Brand Origin (not manufacture):
Netherlands
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED21,300.00
AED15,620.00
— You save AED5,680.00

Description

The ECO.200S/T. With a maximum drilling capacity of 200mm and tapping and countersinking possibilities, this machine gives you the ability to make truly extreme adjustments on workpieces and locations that normally are impossible to do. The adjustable speed and RL rotation makes this machine perfect for tapping. It also offers the precision needed to match the drill to the annular cutter and the material being drilled. Harder materials such as stainless steel and alloy steels must be drilled at lower speeds whereas softer materials such as aluminum can be drilled at higher speeds. The ECO.200S/T has a brushless motor, which makes it more efficient than brushed motors. Brushless motors are more efficient than brushed motors because they eliminate the friction and energy losses associated with brushes. As a result, brushless motors typically produce more power and consume less energy, which can lead to longer battery life and reduced operating costs. When you turn the electronic speed control knob, the display will change the number between 140 and 284. The digital display shows the number of revolutions per second of the motor. The gearbox slows down the number of revolutions to the correct speed on the shaft. The following calculation is used to calculate the no-load speeds of the axle.
  • Adjustable speed for tapping and working with different cutters and materials
  • Oil lubricated gearbox – for immediate smooth operation, even in cold conditions
  • Brushless motor – eliminate friction and less energy loss
  • SensorTec magnet LED indicator – shows if the magnet force is enough to work safely
Item Name:
Magnetic Drilling Machine
Model:
ECO.200S/T
Manufacturer:
Euroboor
Color:
Grey and Black
Voltage:
220-240V
Frequency:
50-60Hz
Length:
515mm
Height:
905mm
Width:
265mm
Cutting Diameter:
12-100mm
Countersink Diameter:
10-50mm
Twist Drill Diameter:
1-2mm
Connection Size:
31.75mm
Stroke Width:
255mm
Maximum Height:
905mm
Minimum Height:
650mm
Rotation Angle:
Bidirectional
Magnetic Force:
3680 Kg
Motor Power:
2800W
Total Power:
2950W
Power Source Type:
Electric
Application:
Drilling, Countersinking, Threading
Brand Origin (not manufacture):
Netherlands
Delivery Time:
2-7 Days
Unit:
Piece
