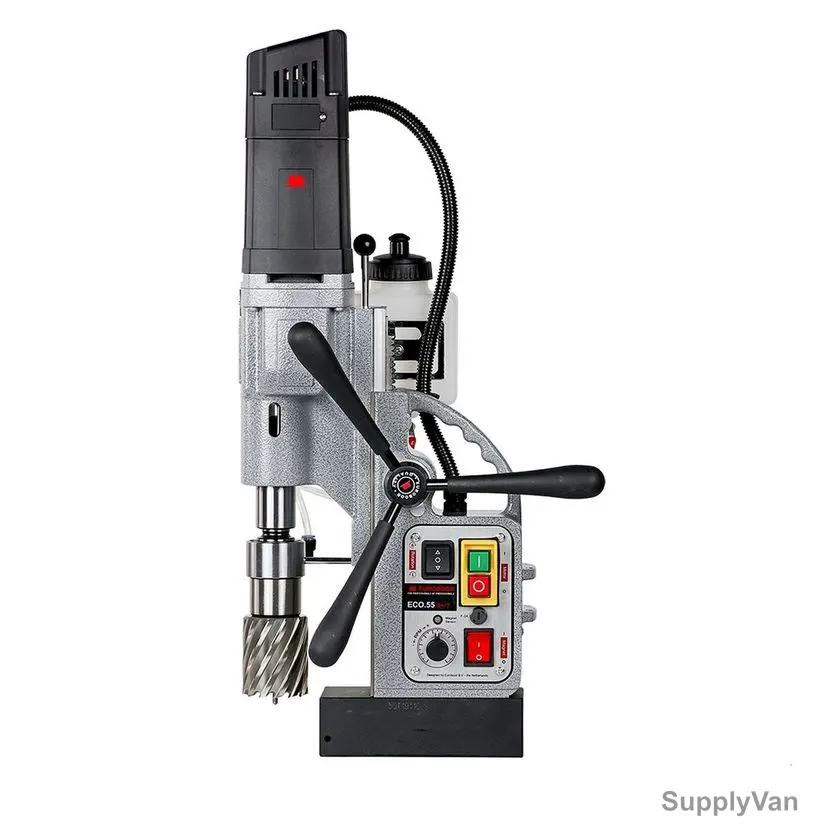

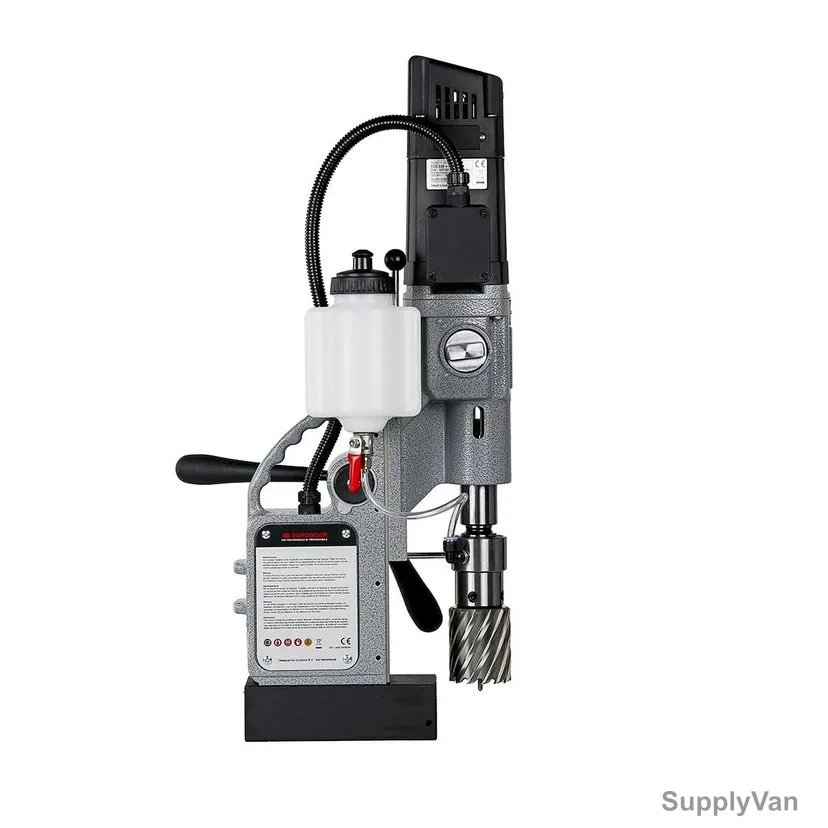

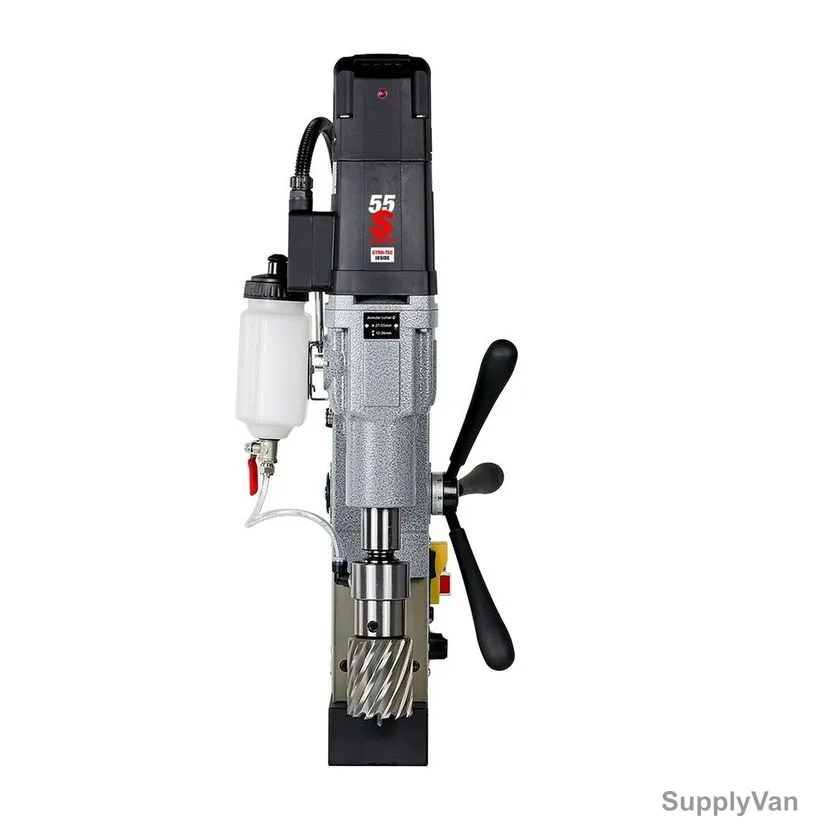

Euroboor Magnetic Drilling Machine, ECO.55S+/T, 1700W, 220-240V, 55MM Cutting Dia
(No reviews yet)
Write a Review
- Brand:
- Euroboor
- SKU:
- 735661957992
- Minimum Purchase:
- 1 unit
- Item Name:
- Magnetic Drilling Machine
- Model:
- ECO.55S+/T
- Manufacturer:
- Euroboor
- Color:
- Grey and Black
- Voltage:
- 220-240V
- Frequency:
- 50-60Hz
- Length:
- 320mm
- Height:
- 660mm
- Width:
- 200mm
- Cutting Diameter:
- 12-55mm
- Countersink Diameter:
- 10-60mm
- Twist Drill Diameter:
- 1-23mm
- Connection Size:
- 19.05mm
- Stroke Width:
- 170mm
- Maximum Height:
- 660mm
- Minimum Height:
- 490mm
- Rotation Angle:
- Bidirectional
- Magnetic Force:
- 1850 Kg
- Motor Power:
- 1600W
- Total Power:
- 1700W
- Power Source Type:
- Electric
- Application:
- Drilling, Countersinking, Threading
- Brand Origin (not manufacture):
- Netherlands
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Euroboor ECO.50S+ magnetic core drilling machine apart from drilling, can also tap! It also converts maximum power through its two speed oil lubricated gearbox. This improves motor efficiency and lifetime of key components. This portable industrial magnetic core drilling machine has innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.
View AllClose
- Two-speed oil lubricated gearbox
- Digital display showing ideal power usage, asmart restart technology
- Right/left rotating functionality, electronic speed adjustment
- Easily accessible carbon brushes. Motor will automatically shut-off in case of replacement
- High-accuracy capstan hub
- Morse Taper 3 spindle with integrated tool cooling and lubrication
- LED load indicators, high accuracy, enlarged lifecycle, minimal vibration, low maintenance, minimal wear correction
- Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
- Reduced risk of damaging machine, tools and workpiece and hurting operator
- Suitable for use in areas and workplaces where power supply is of less quality
- Reduced risk of armature damage
- Reduced risk of control unit(s) damage
Item Name: |
Magnetic Drilling Machine |
Model: |
ECO.55S+/T |
Manufacturer: |
Euroboor |
Color: |
Grey and Black |
Voltage: |
220-240V |
Frequency: |
50-60Hz |
Length: |
320mm |
Height: |
660mm |
Width: |
200mm |
Cutting Diameter: |
12-55mm |
Countersink Diameter: |
10-60mm |
Twist Drill Diameter: |
1-23mm |
Connection Size: |
19.05mm |
Stroke Width: |
170mm |
Maximum Height: |
660mm |
Minimum Height: |
490mm |
Rotation Angle: |
Bidirectional |
Magnetic Force: |
1850 Kg |
Motor Power: |
1600W |
Total Power: |
1700W |
Power Source Type: |
Electric |
Application: |
Drilling, Countersinking, Threading |
Brand Origin (not manufacture): |
Netherlands |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
