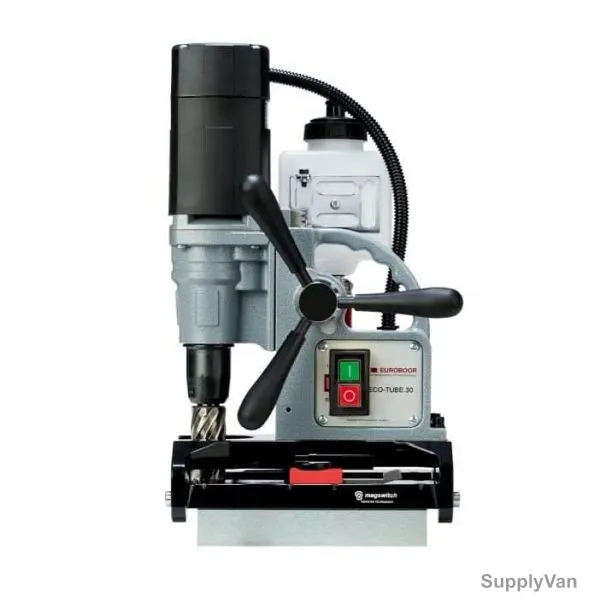

Euroboor Magnetic Drilling Machine, TUBE.30, 950W, 220-240V, 30MM Cutting Dia
(No reviews yet)
Write a Review
- Brand:
- Euroboor
- SKU:
- 338518262719
- Minimum Purchase:
- 1 unit
- Item Name:
- Magnetic Drilling Machine
- Model:
- TUBE.30
- Manufacturer:
- Euroboor
- Color:
- Grey and Black
- Voltage:
- 220-240V
- Frequency:
- 50-60Hz
- Length:
- 275mm
- Height:
- 416mm
- Width:
- 185mm
- Cutting Diameter:
- 12-30mm
- Countersink Diameter:
- 10-35mm
- Twist Drill Diameter:
- 1-13mm
- Connection Size:
- 19.05mm
- Stroke Width:
- 90mm
- Maximum Height:
- 416mm
- Minimum Height:
- 326mm
- Rotation Angle:
- Clockwise
- Magnetic Force:
- 532 Kg
- Motor Power:
- 900W
- Total Power:
- 950W
- Power Source Type:
- Electric
- Application:
- Countersinking, Pipe/Tube Mounted Drilling
- Brand Origin (not manufacture):
- Netherlands
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

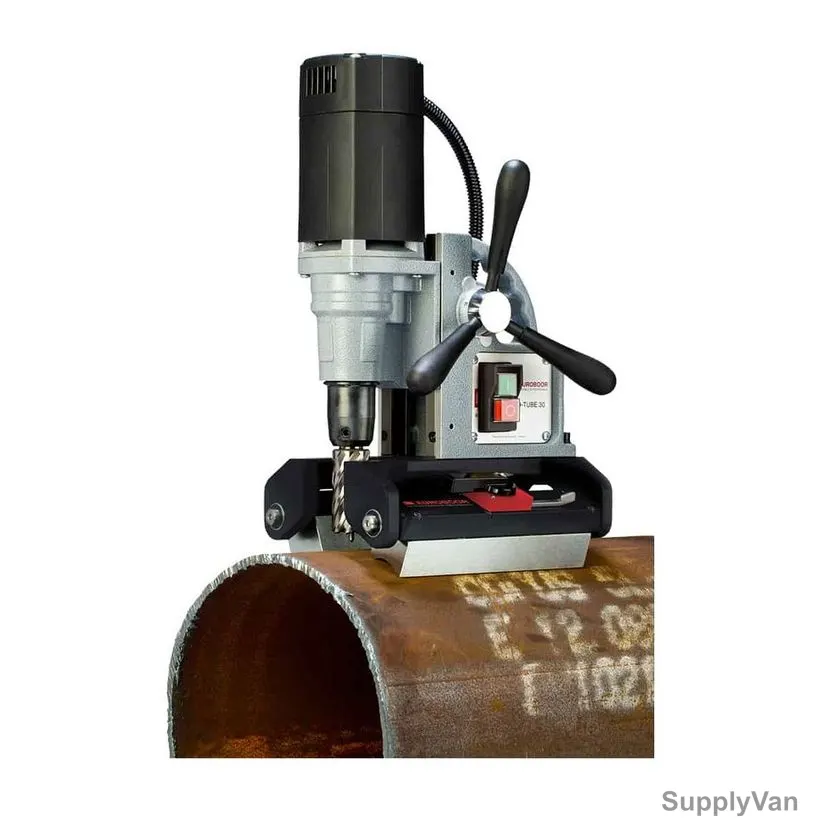

The Euroboor TUBE.30 magnetic core drilling machine is suitable for both flat and pipe material. The TUBE.30 with patented shallow-field magnetic technology offers incredibly strong grip, even on steel as thin as 3mm. This magnetic core drilling machine automatically pivots to conform to any pipe of diameter 76.2mm or larger. The magnet does not require electricity, so all the power goes to the motor. This offers increased safety as the drilling machine will not release from the target material in the event of an unintentional power loss.
View AllClose
- Magnet length: 187mm
- Magnet width: 165mm
- Magnet height: 83mm
Item Name: |
Magnetic Drilling Machine |
Model: |
TUBE.30 |
Manufacturer: |
Euroboor |
Color: |
Grey and Black |
Voltage: |
220-240V |
Frequency: |
50-60Hz |
Length: |
275mm |
Height: |
416mm |
Width: |
185mm |
Cutting Diameter: |
12-30mm |
Countersink Diameter: |
10-35mm |
Twist Drill Diameter: |
1-13mm |
Connection Size: |
19.05mm |
Stroke Width: |
90mm |
Maximum Height: |
416mm |
Minimum Height: |
326mm |
Rotation Angle: |
Clockwise |
Magnetic Force: |
532 Kg |
Motor Power: |
900W |
Total Power: |
950W |
Power Source Type: |
Electric |
Application: |
Countersinking, Pipe/Tube Mounted Drilling |
Brand Origin (not manufacture): |
Netherlands |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
