Euroboor Magnetic Drilling Machine, TUBE.55S-T, 1700W, 220-240V, 55MM Cutting Dia
(No reviews yet)
Write a Review
- Brand:
- Euroboor
- SKU:
- 444852234177
- Minimum Purchase:
- 1 unit
- Item Name:
- Magnetic Drilling Machine
- Model:
- TUBE.55S-T
- Manufacturer:
- Euroboor
- Color:
- Grey and Black
- Voltage:
- 220-240V
- Frequency:
- 50-60Hz
- Length:
- 320mm
- Height:
- 693mm
- Width:
- 210mm
- Cutting Diameter:
- 12-55mm
- Countersink Diameter:
- 10-60mm
- Twist Drill Diameter:
- 1-23mm
- Connection Size:
- 19.05mm
- Stroke Width:
- 170mm
- Maximum Height:
- 693mm
- Minimum Height:
- 523mm
- Rotation Angle:
- Bidirectional
- Magnetic Force:
- 900 Kg
- Motor Power:
- 1600W
- Total Power:
- 1700W
- Power Source Type:
- Electric
- Application:
- Countersinking, Pipe/Tube Mounted Drilling, Threading
- Brand Origin (not manufacture):
- Netherlands
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

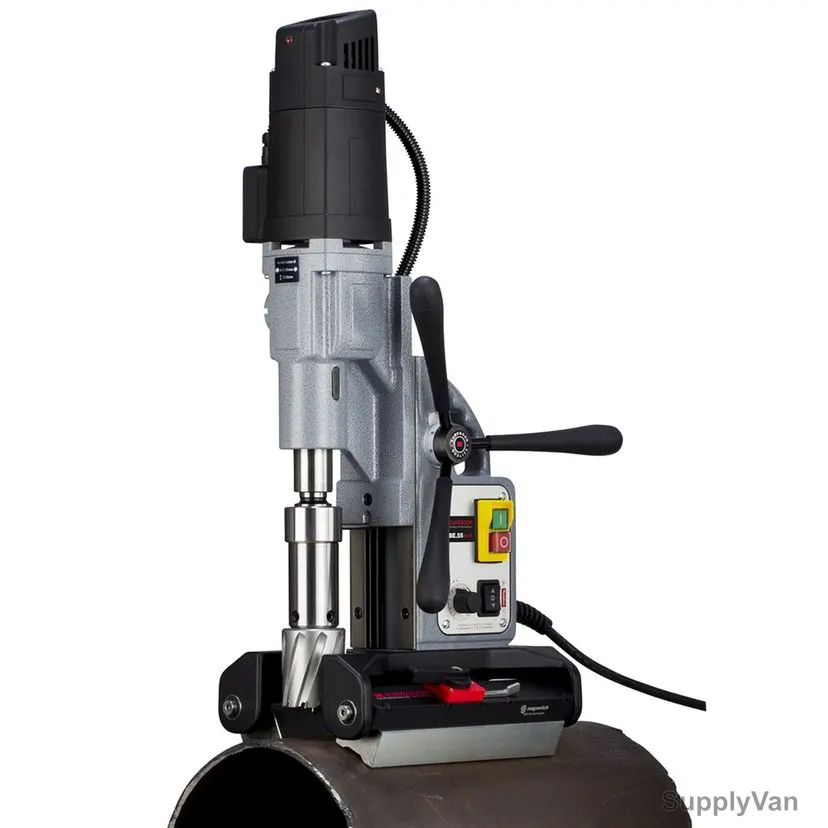

The portable Euroboor magnetic core drilling machine is especially designed to be used on tubes and pipes. Due to the incredibly strong grip of the magnet, the Tube.55S+/T is suited for both drilling and tapping in flat and pipe material (even on steel as thin as 3mm). The Tube.55S+/T cuts holes up to 55mm. Because of its pivoting magnet, this machine can be effortlessly used on tube material with a diameter of 80mm and larger. The TUBE.55S+/T also benefits from Smart Restart technology and a digital display, showing the ideal working load. The oil lubricated gearbox and innovative electronics reduce the risk of damage of the machine, tool and workpiece. When the GYRO-TEC sensor detects any excessive vibrations or sudden displacement it will automatically shut off the machine. This contributes to the wellbeing of the user and the lifespan of the machine and it also avoids high maintenance costs.
View AllClose

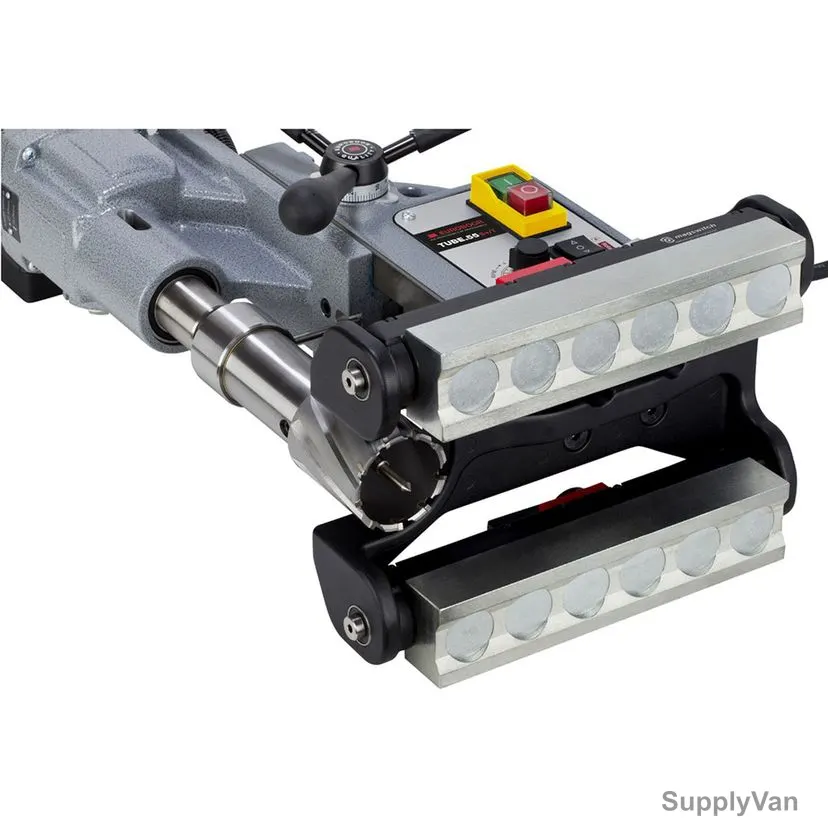

- The magnets can be adjusted for the best position on round and flat surfaces
- Easily accessible carbon brushes. Motor will automatically shut-off in case of replacement
- Electronic speed adjustment, LED load indicators
- Morse taper 3 spindle with integrated tool cooling and lubrication
- High-accuracy capstan hub, low maintenance, minimal wear correction
- High accuracy
- Enlarged lifecycle
- Minimal vibration
Item Name: |
Magnetic Drilling Machine |
Model: |
TUBE.55S-T |
Manufacturer: |
Euroboor |
Color: |
Grey and Black |
Voltage: |
220-240V |
Frequency: |
50-60Hz |
Length: |
320mm |
Height: |
693mm |
Width: |
210mm |
Cutting Diameter: |
12-55mm |
Countersink Diameter: |
10-60mm |
Twist Drill Diameter: |
1-23mm |
Connection Size: |
19.05mm |
Stroke Width: |
170mm |
Maximum Height: |
693mm |
Minimum Height: |
523mm |
Rotation Angle: |
Bidirectional |
Magnetic Force: |
900 Kg |
Motor Power: |
1600W |
Total Power: |
1700W |
Power Source Type: |
Electric |
Application: |
Countersinking, Pipe/Tube Mounted Drilling, Threading |
Brand Origin (not manufacture): |
Netherlands |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
